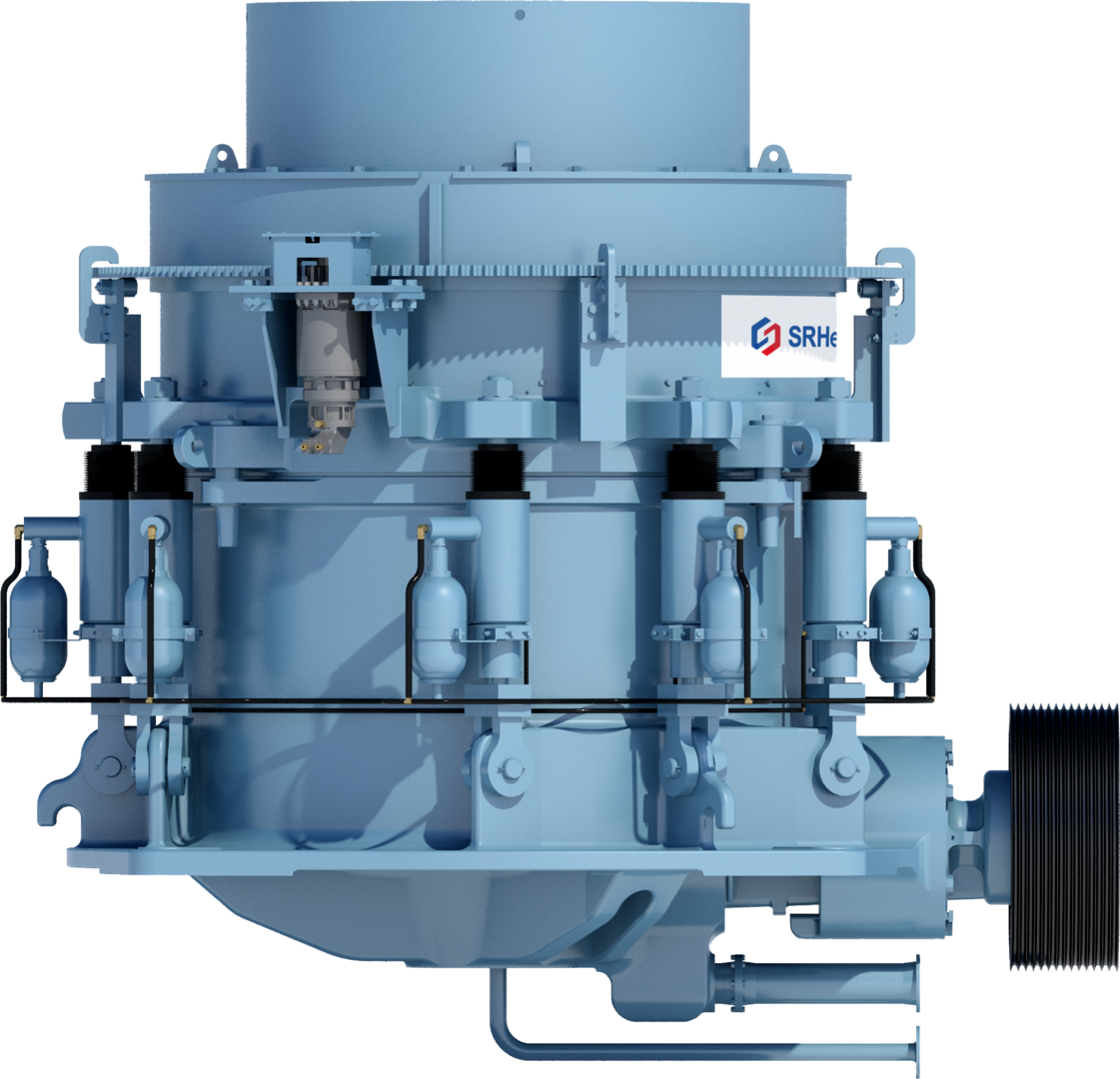

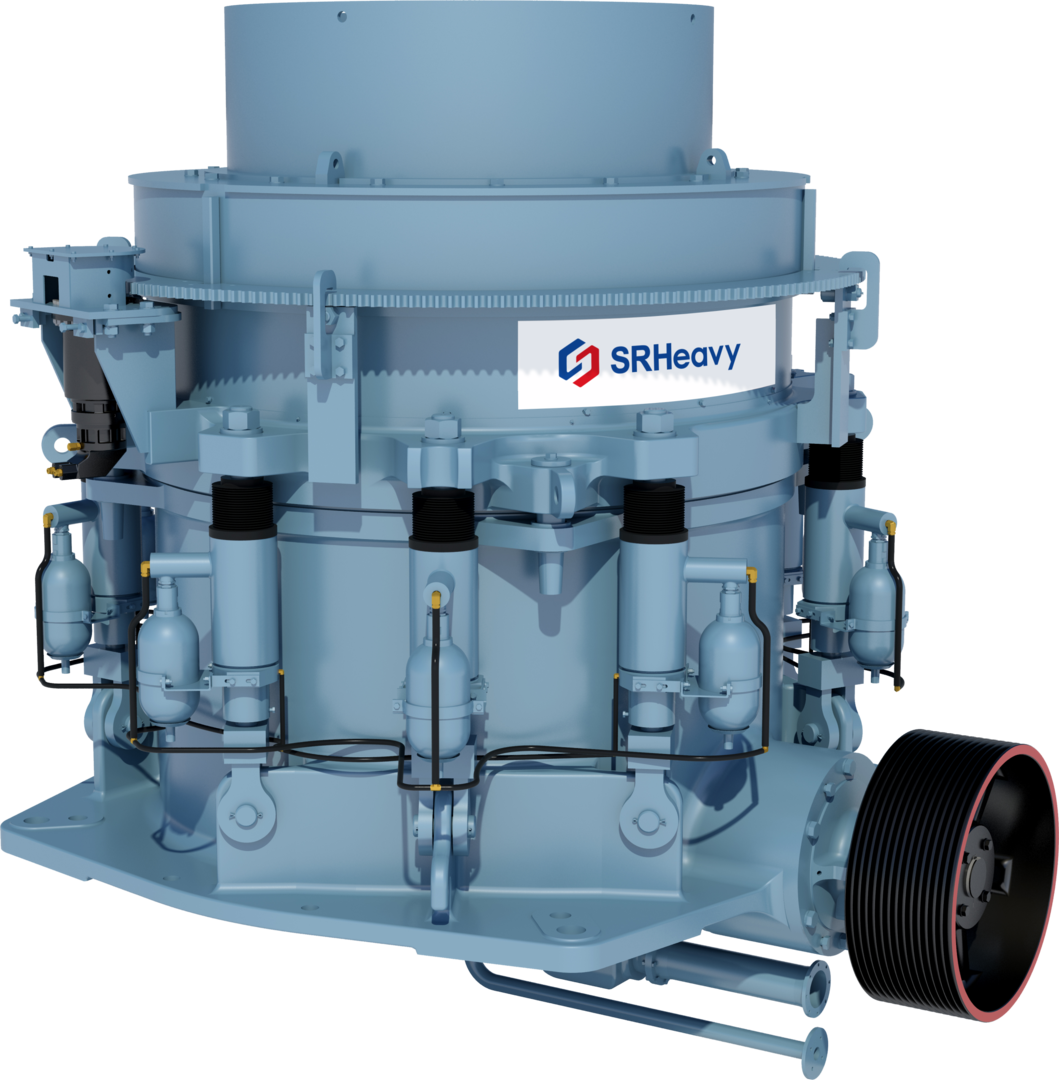

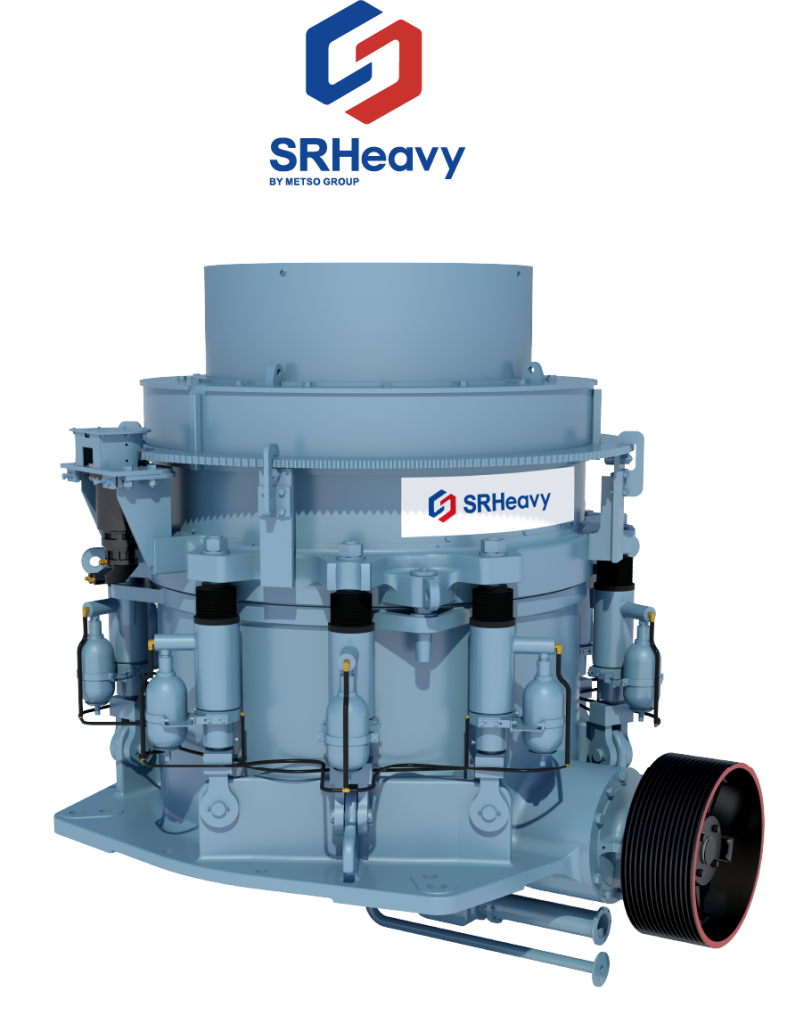

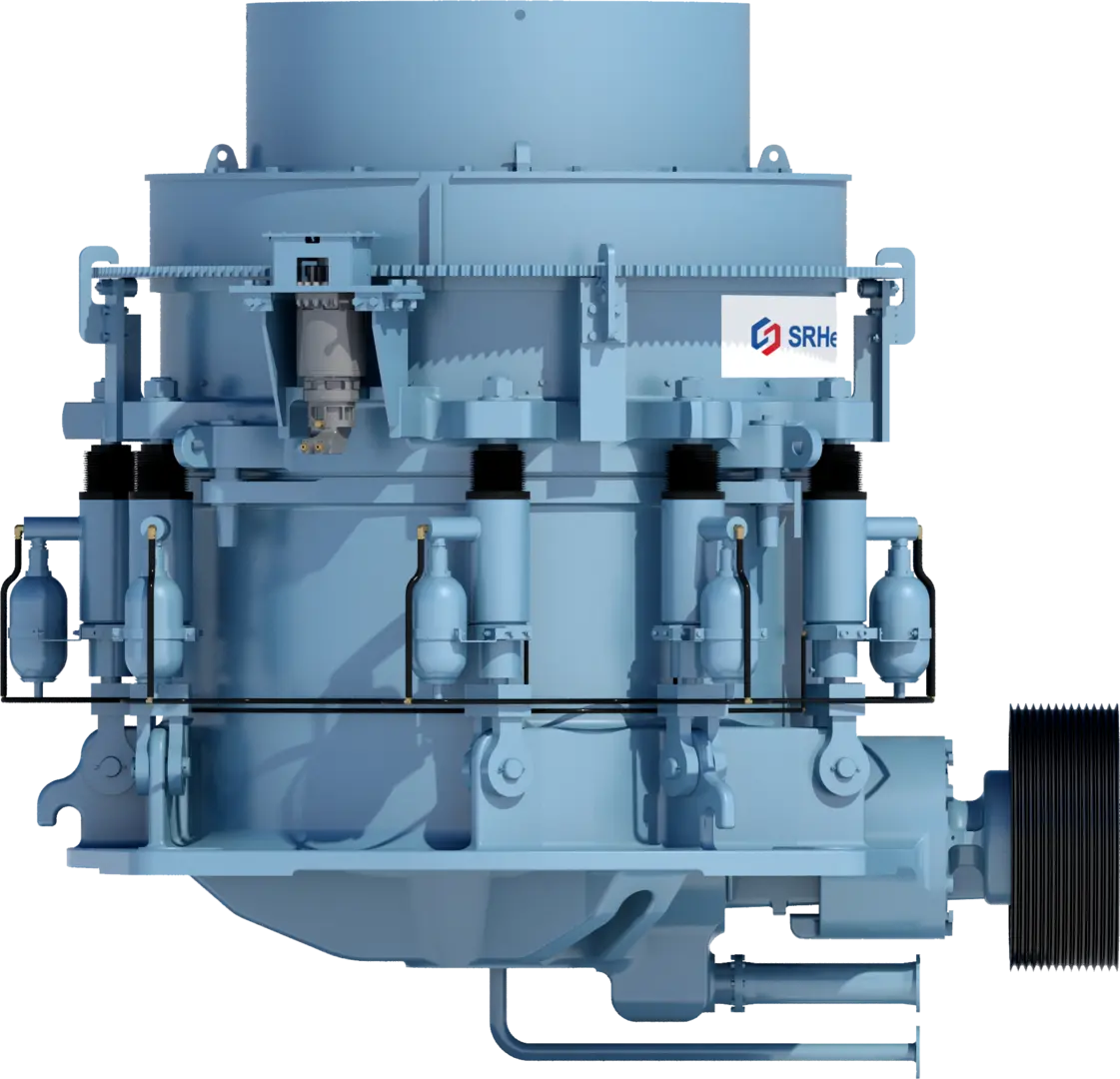

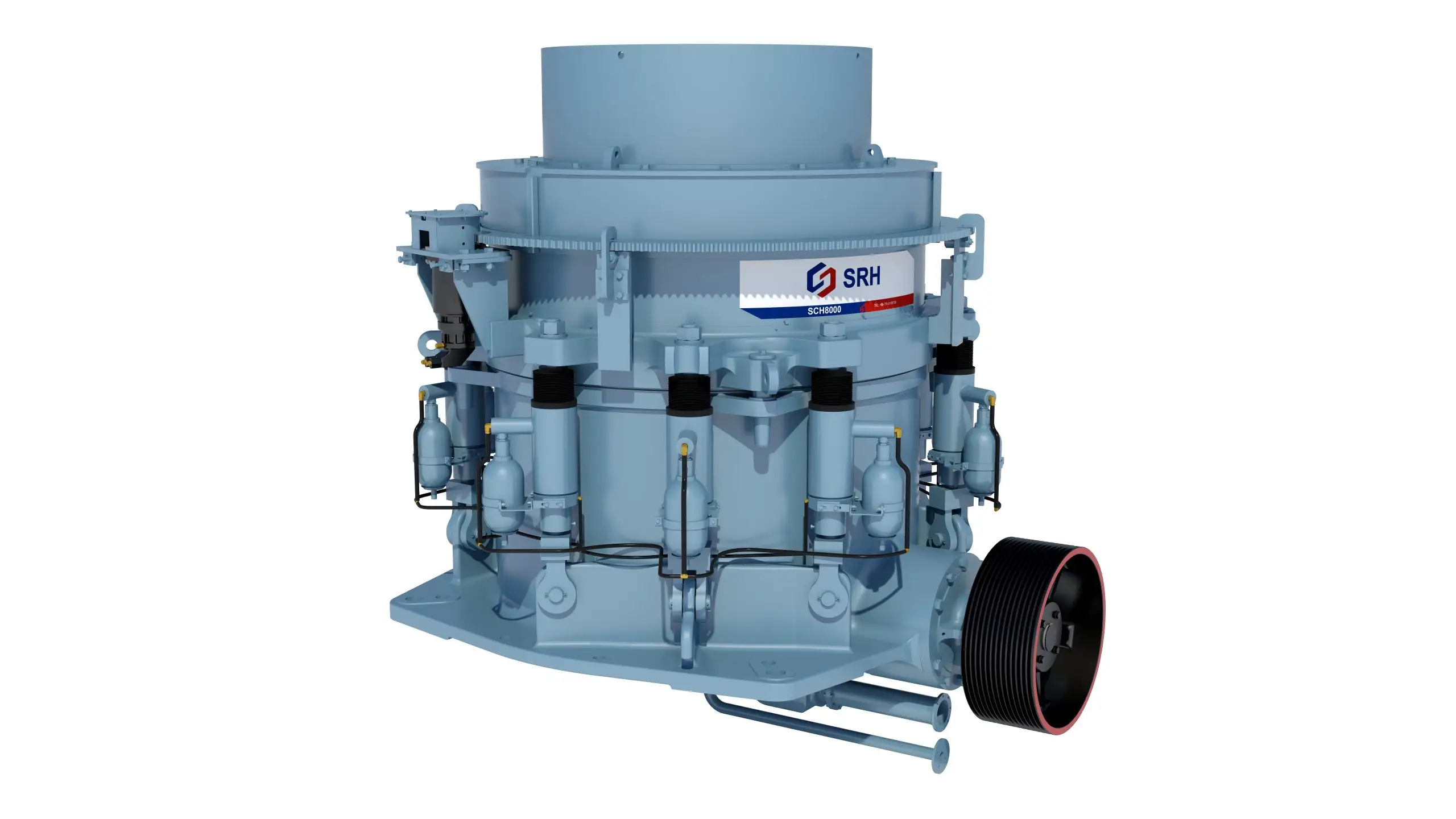

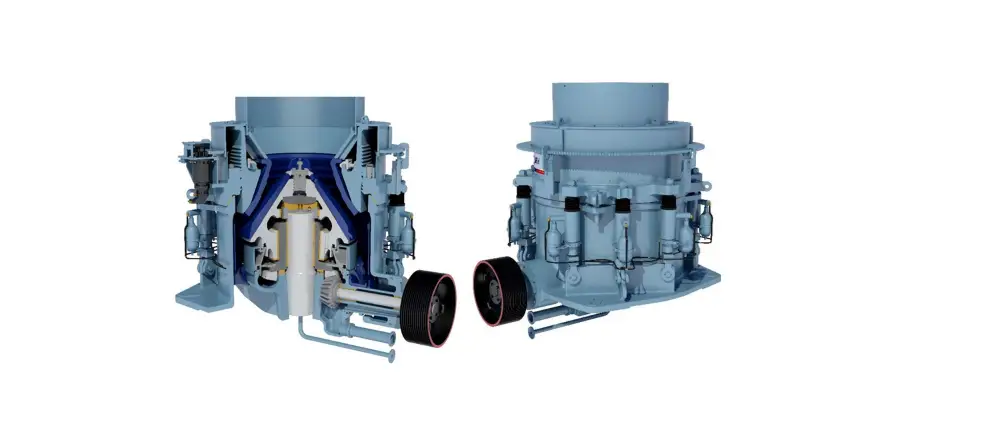

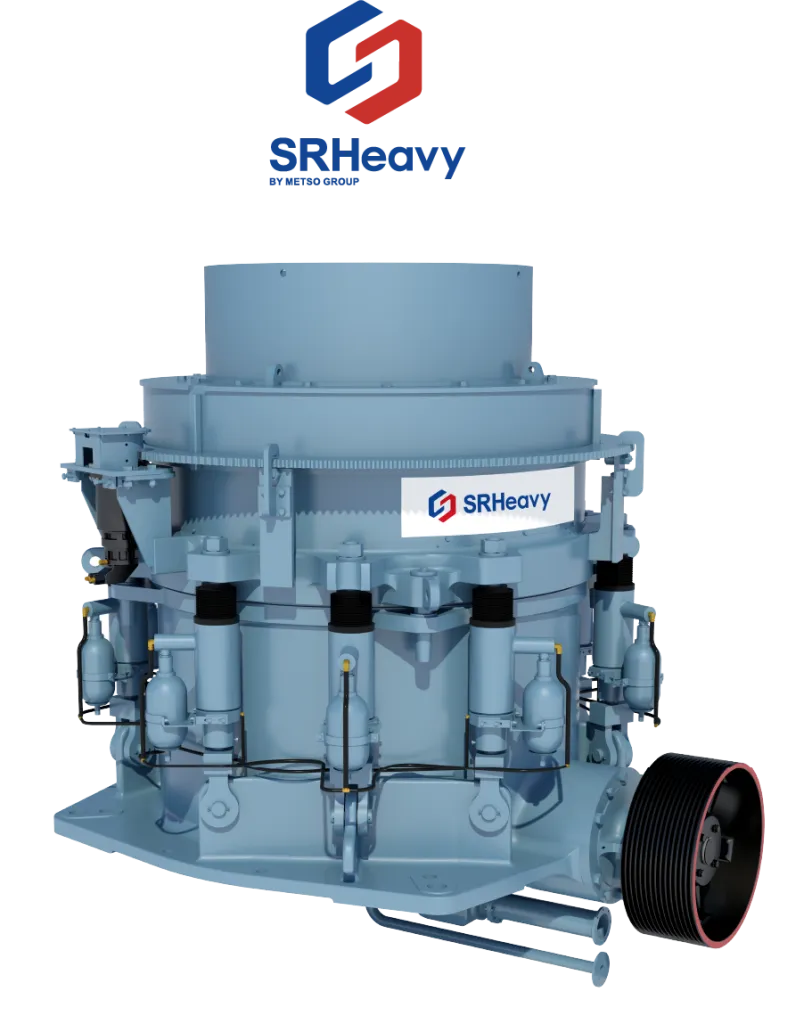

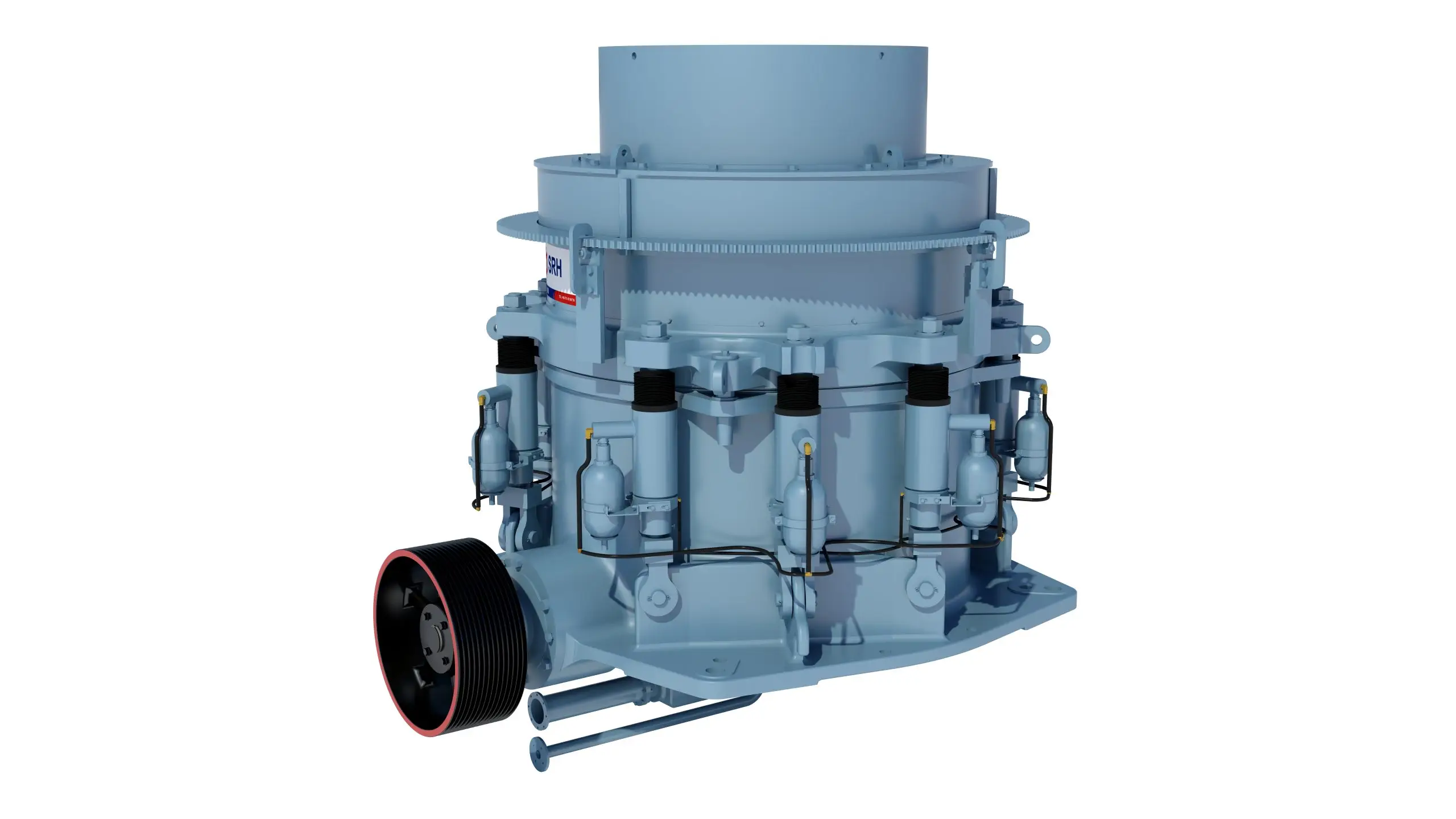

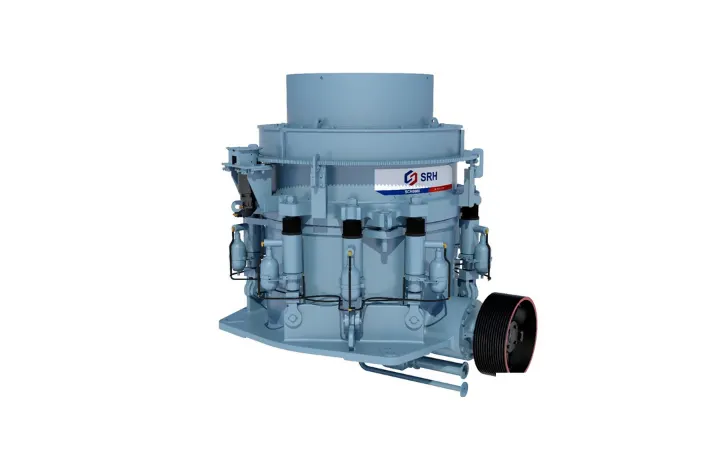

Fixed Cone Crusher SCH2000
The SRHeavy SCH2000 cone crusher, is known as one of the best due to its proven design and performance in aggregates production, quarrying, and mining.
The crusher has a unique blend of speed, throw, crushing forces, and variation of cavity design to maximize throughput and inter-particle crushing, delivering a high reduction ratio, superior product shape, and finer output with fewer stages—reducing costs and energy use.
This cone crusher features a high-performance motor, has practical maintenance options like top-down access and hydraulic adjustments, and the SCH2000 eliminates the need for backing compound during liner changes. With versatility across secondary to tertiary applications, compatibility and over years of proven reliability, the SCH2000 combines high capacity, low operating costs, and durability, making it a benchmark in cone crushing technology.
KEY FEATURES
90-250 TPH
160Kw Motor
180mm Max Feed
Wide Variety of Liner Profiles

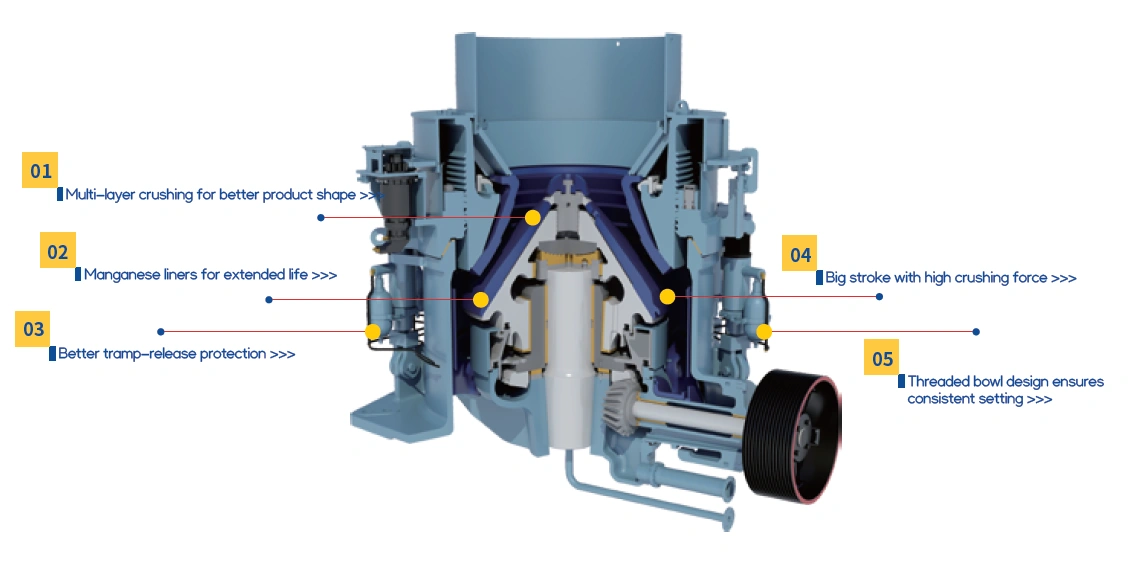

PRODUCT FEATURES
High Productivity and Efficiency: The SCH2000’s combination of crusher speed, throw, and cavity design maximizes throughput and inter-particle crushing, delivers a high reduction ratio and excellent product shape with greater output capacity using the same energy input.

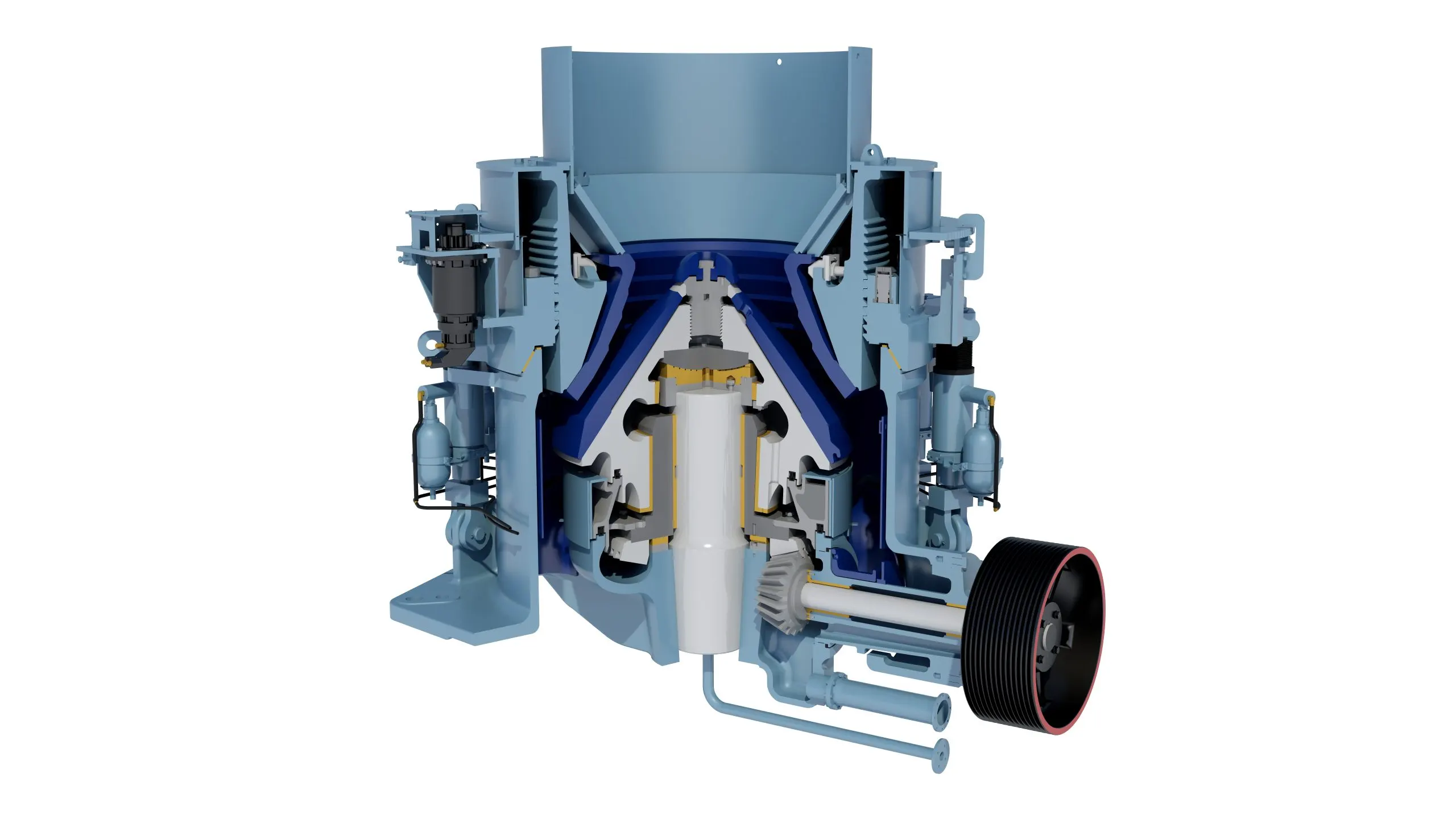

Superior Product Quality: Its large throw and carefully engineered crushing chamber enable significant size reduction, producing finer, on-spec material with fewer crushing stages, ideal for aggregates, quarrying, and mining applications.
Ease of Maintenance: Designed for ease of maintenance, it features top-down access to main components, dual-acting hydraulic cylinders, and mechanical bowl rotation, plus the SCH2000 model eliminates backing compounds, simplifying liner changes and reducing downtime.
Versatility: The SCH2000 adapts to a wide range of applications—from secondary to tertiary crushing—across stationary, mobile, or portable setups, handling diverse materials like limestone, quartzite, mineral ores and granite with consistent performance.
Energy Efficiency: Equipped with high-performance motors and a design that minimizes energy consumption per ton of output, the SCH2000 supports cost-effective operations.

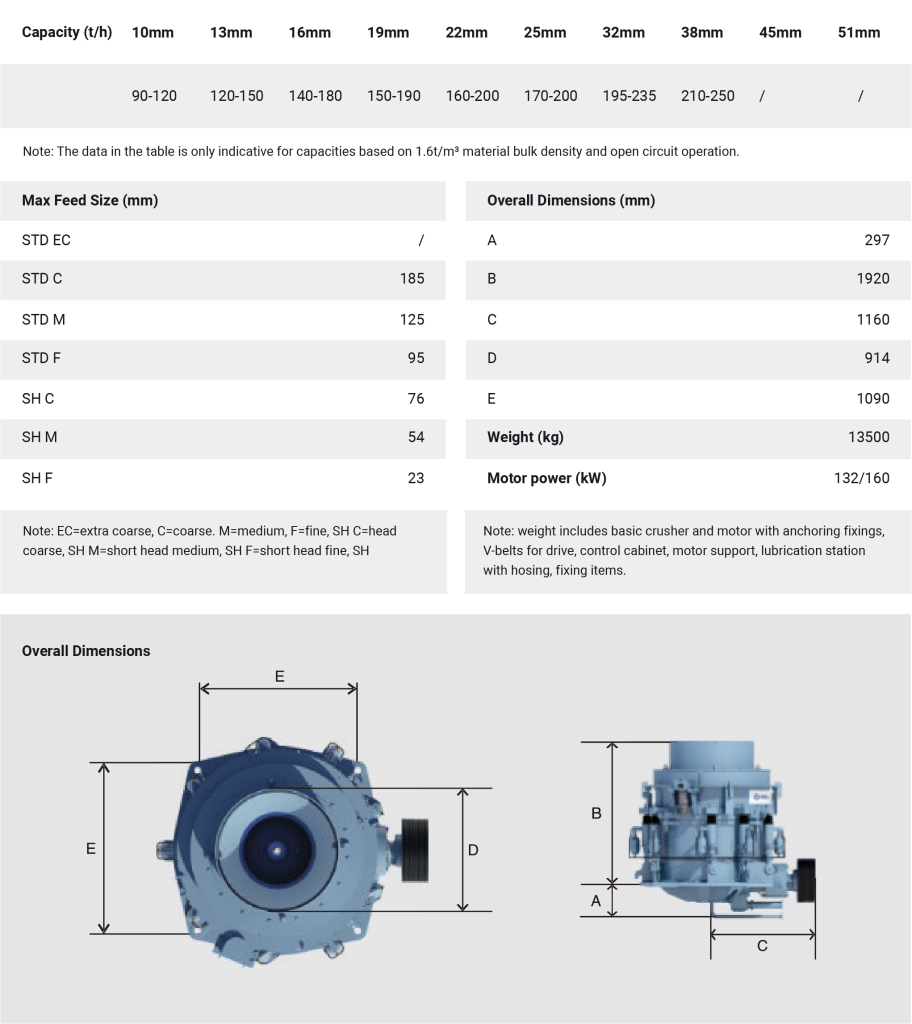

SPEC TABLE
Model | SCH2000 |
Type | Multi-Cylinder Hydraulic Cone Crusher |
Feed Opening Size (mm) | 185 (Fine) - 275 (Extra Coarse) |
Max Feed Size (mm) | 148 (Fine) - 220 (Extra Coarse) |
Discharge Setting (mm) | 10-38 |
Processing Capacity (t/h) | 110-420 (depending on setting/cavity) |
Motor Power (kW) | 160 |
Weight (kg) | Approx. 13,500 (excluding motor) |
Crushing Chamber Options | Fine, Medium, Coarse, Extra Coarse |
Eccentric Throw (mm) | Adjustable (typically 16-25) |
Dimensions (L x W x H) | Approx. 2,300 x 2,100 x 2,500 mm |
