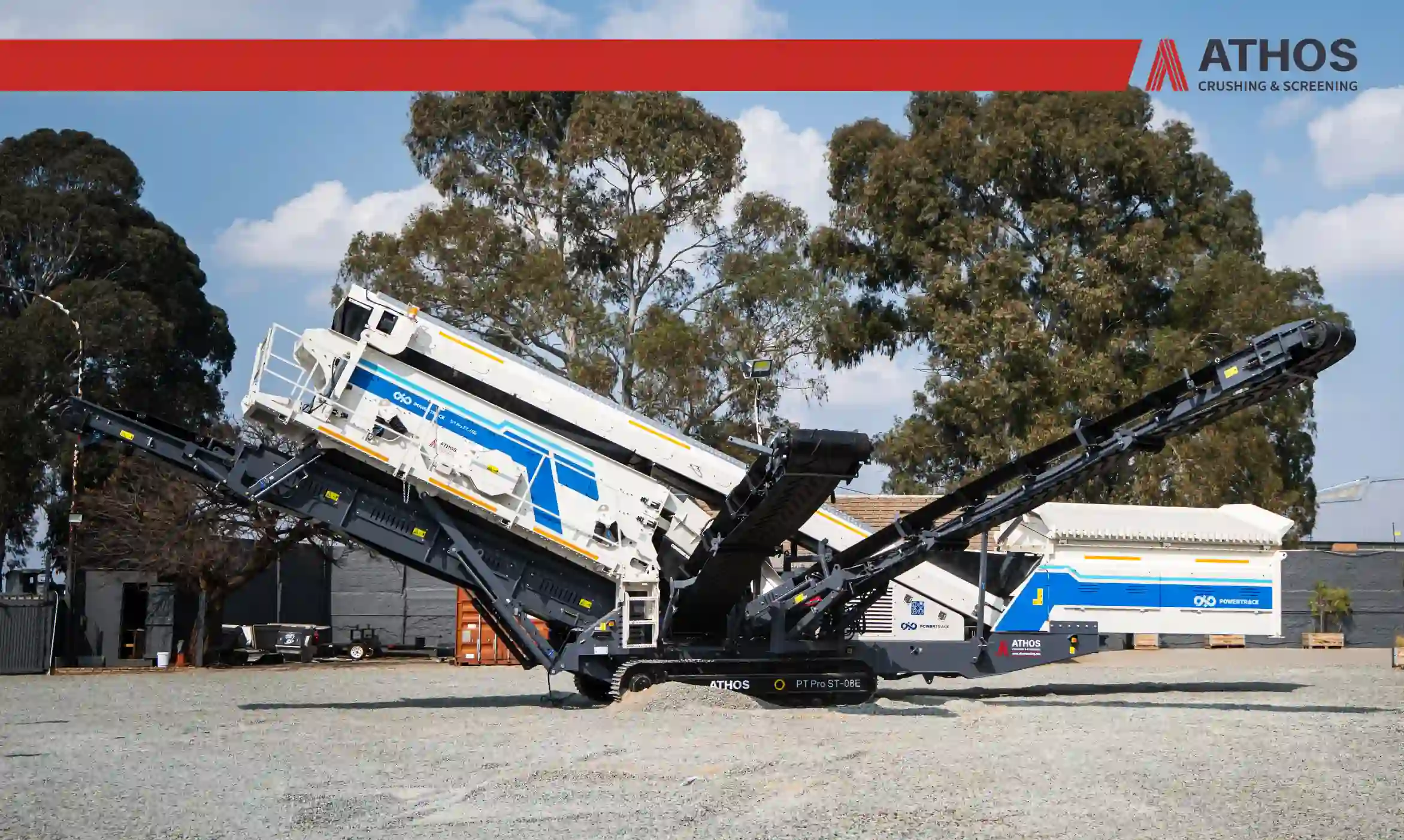

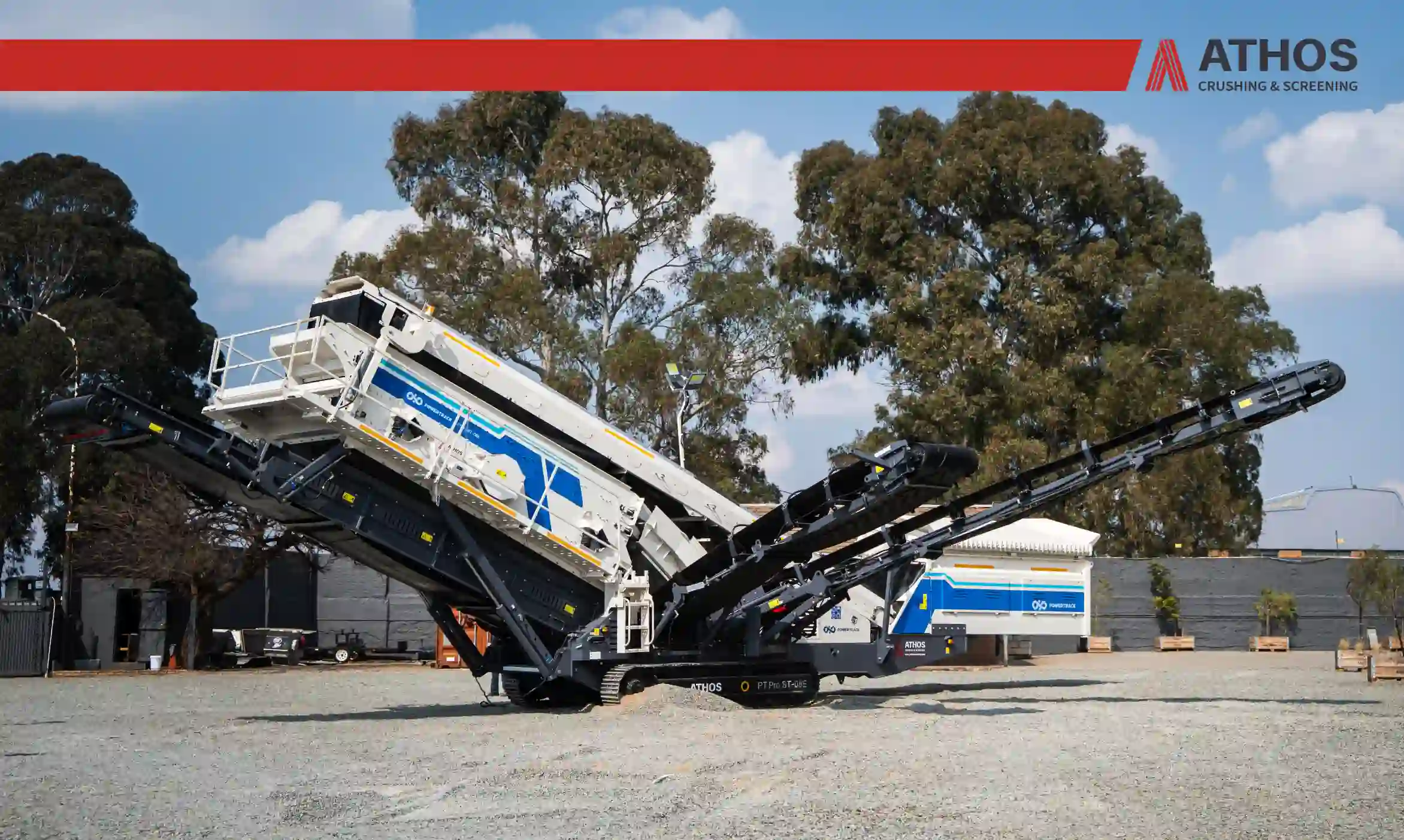

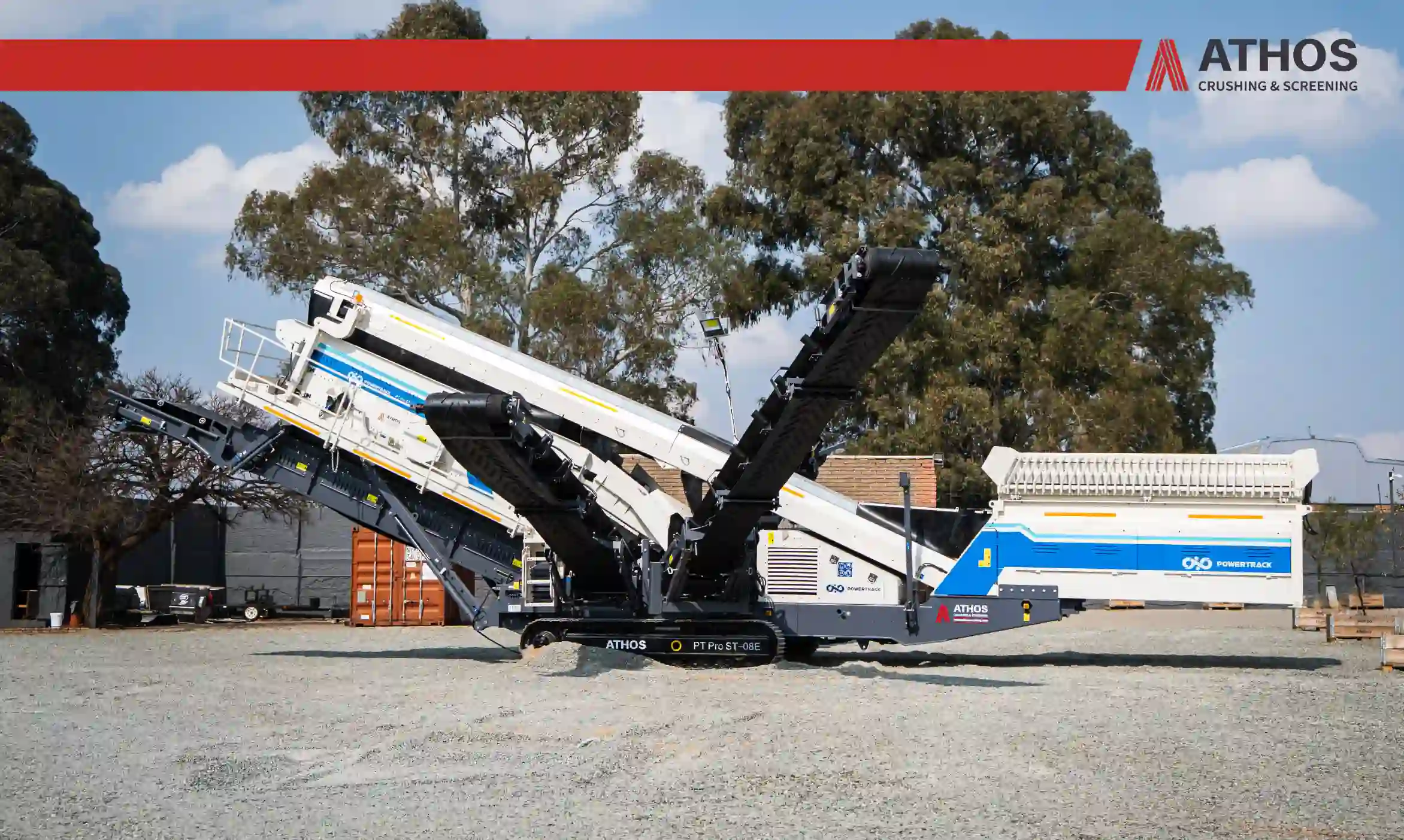

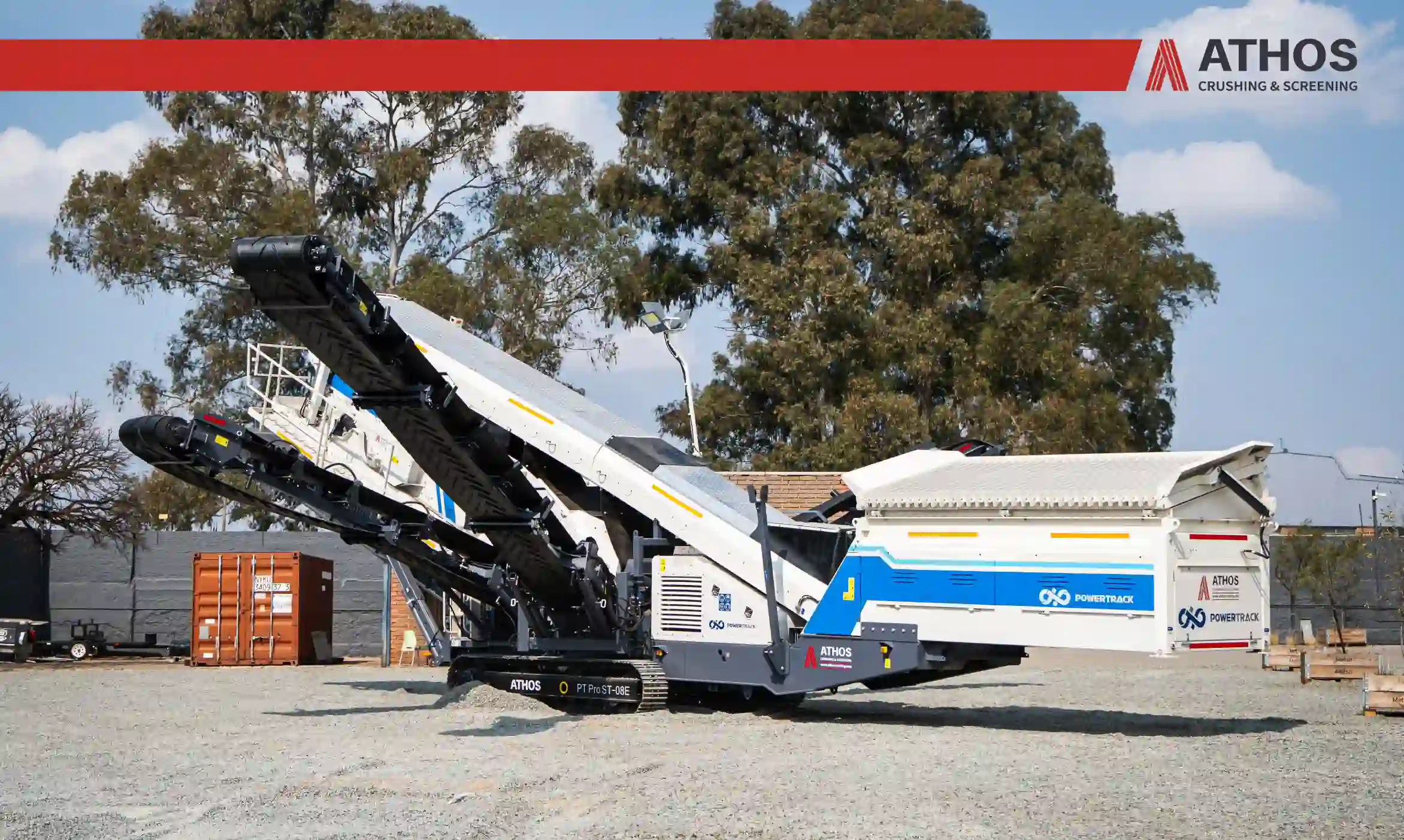

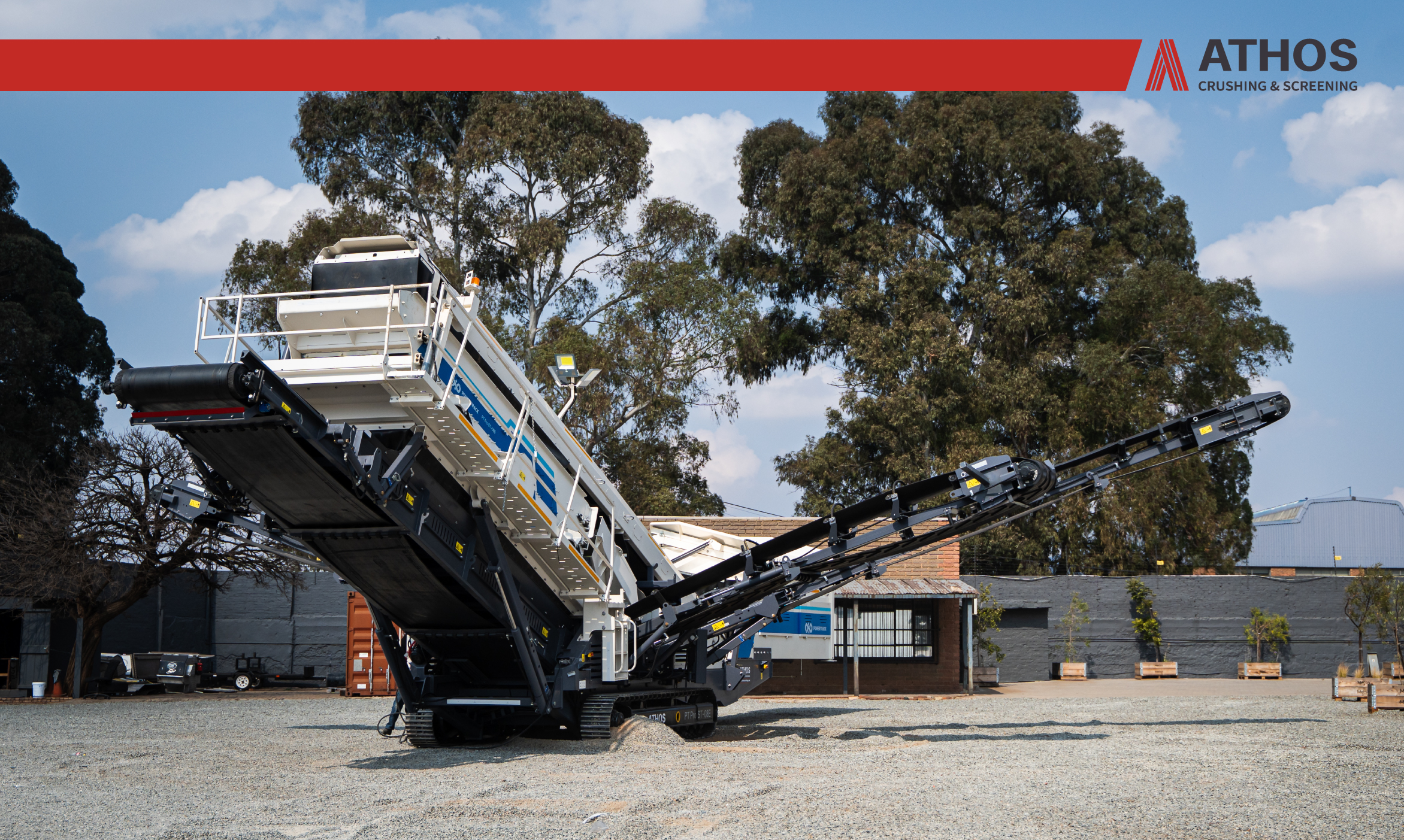

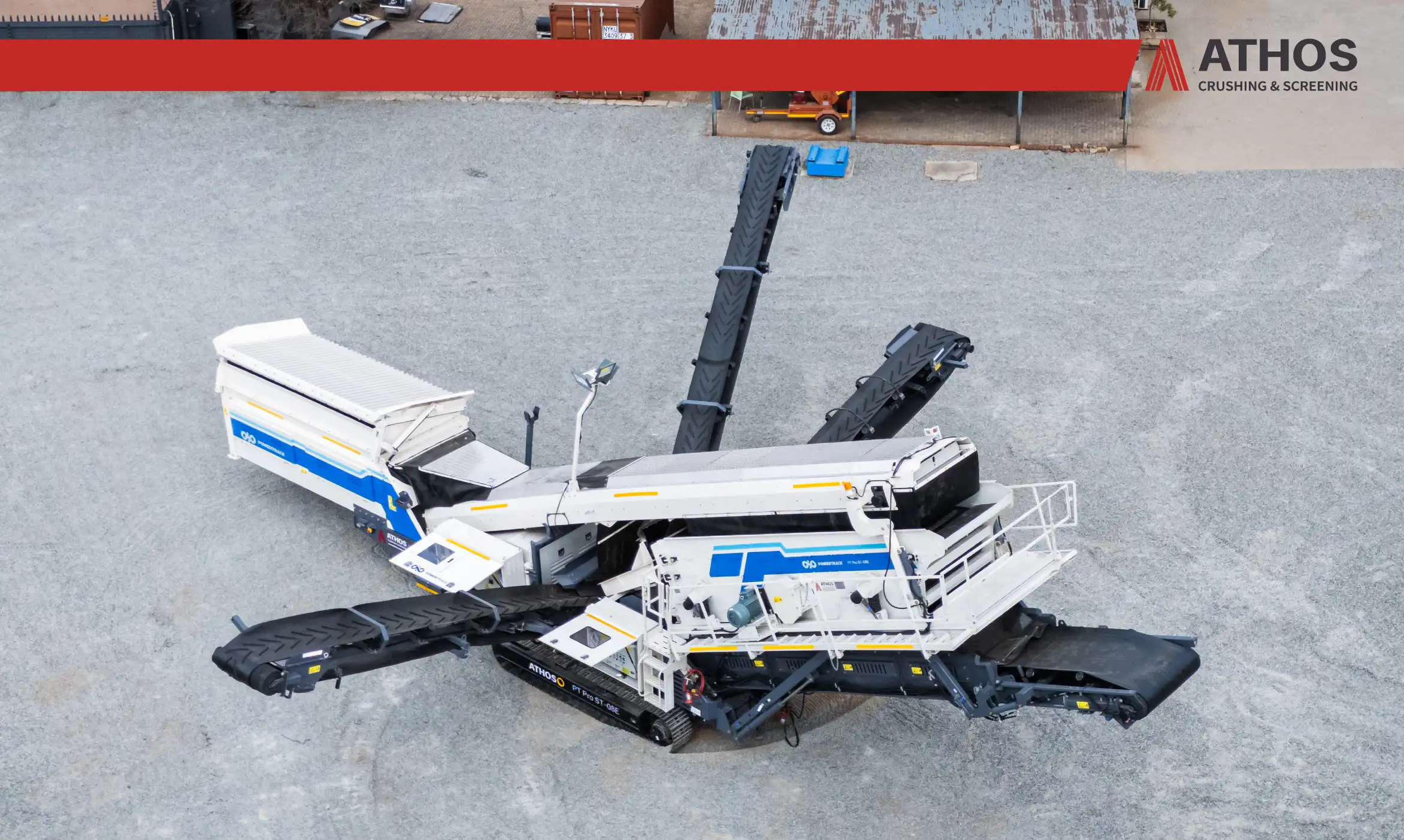

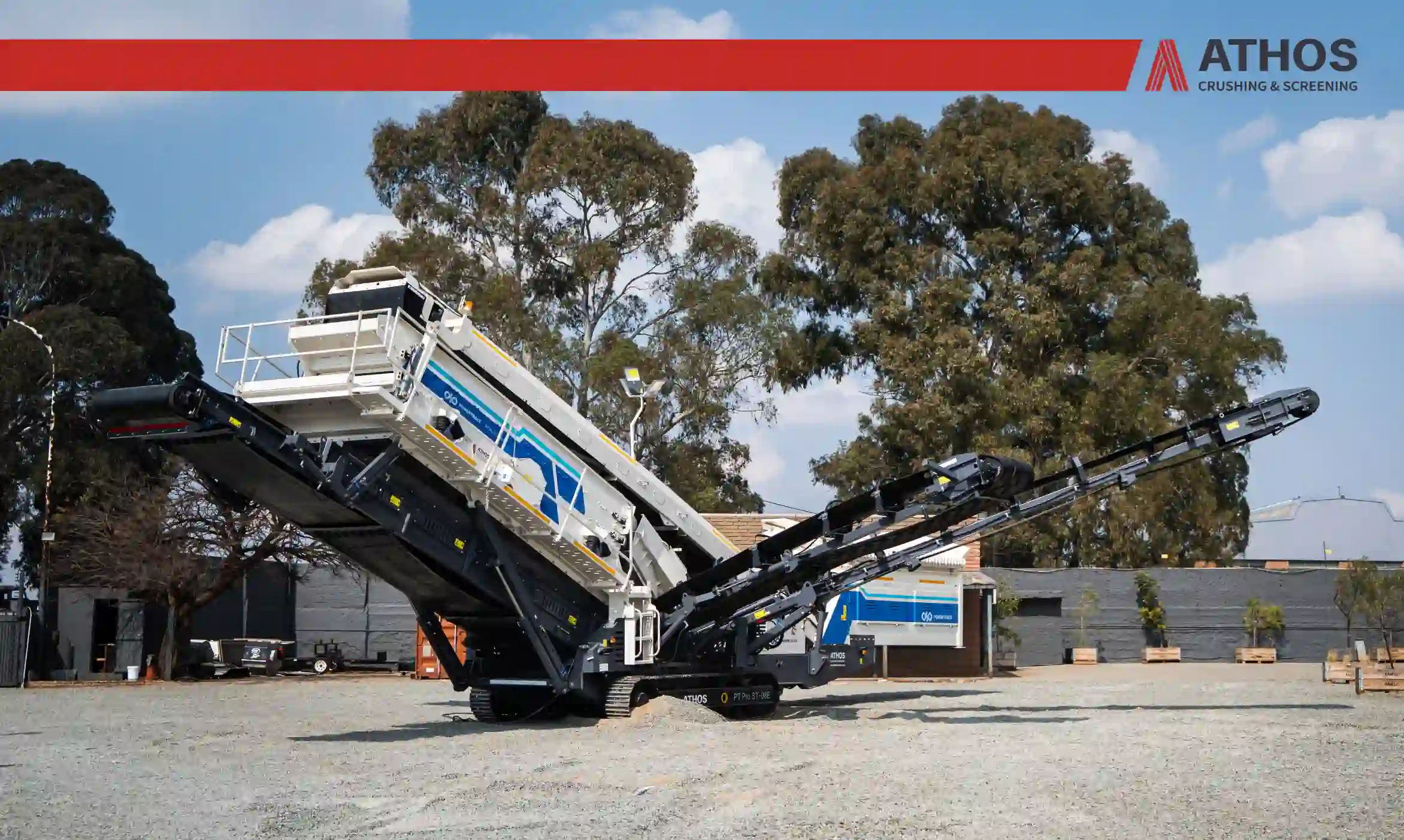

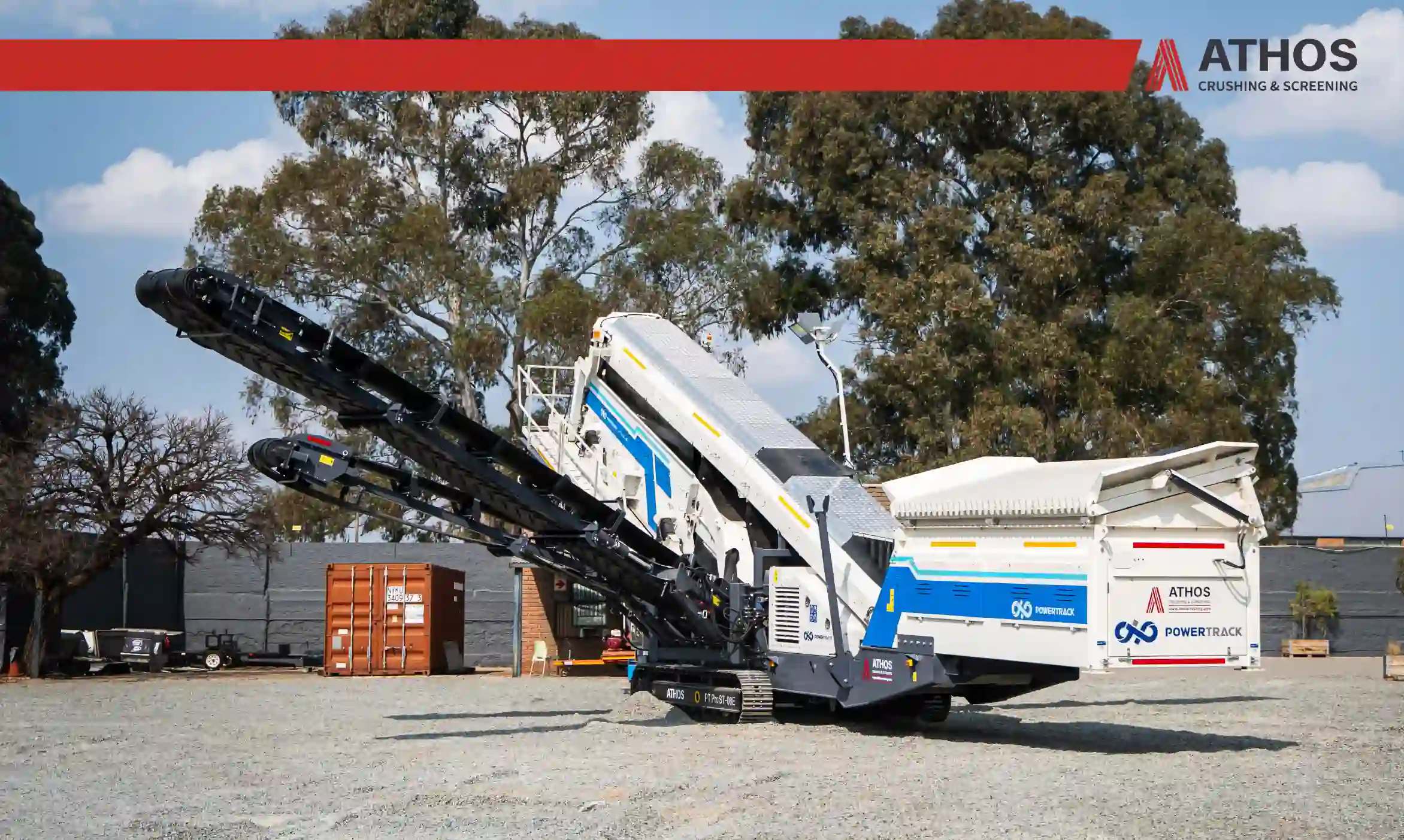

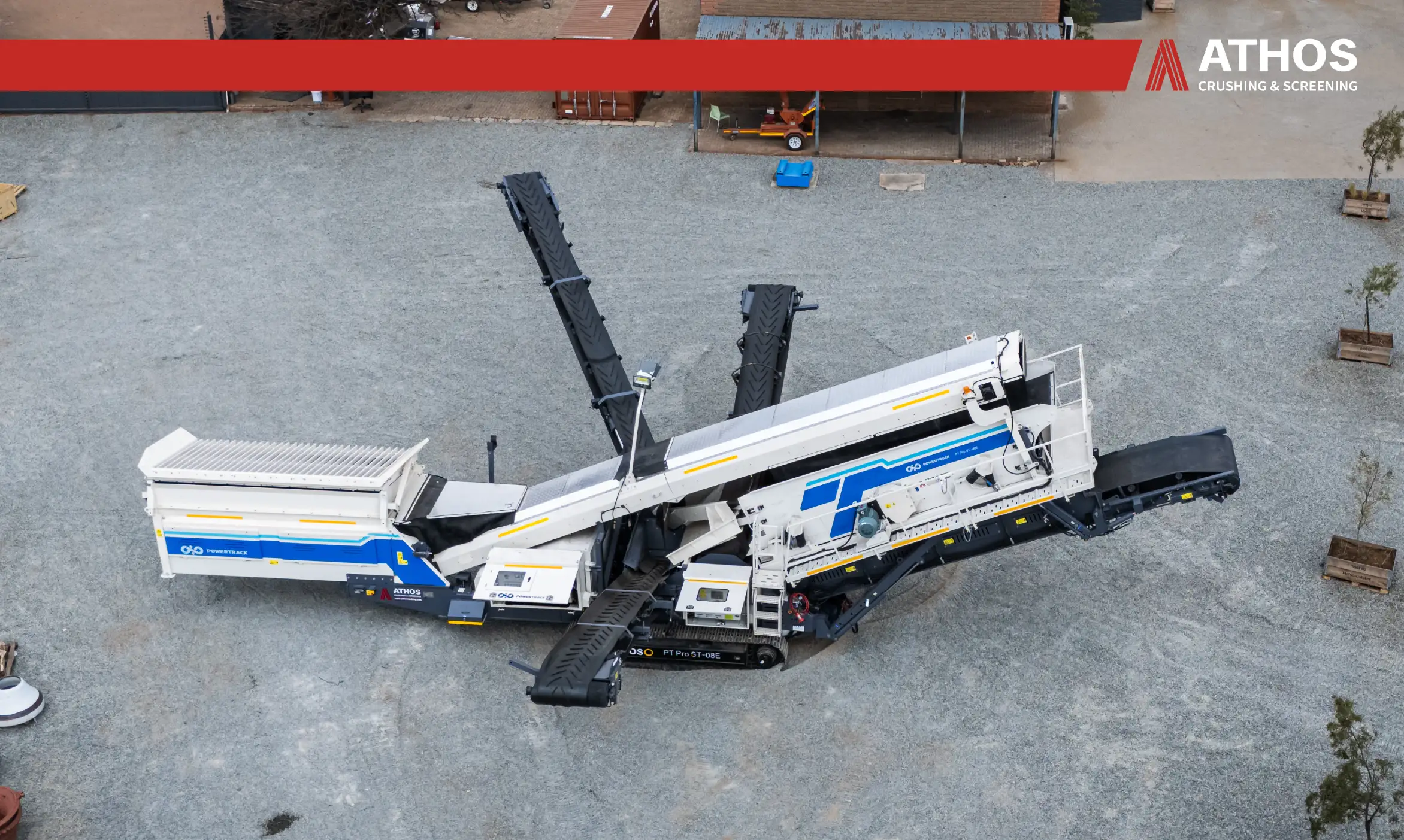

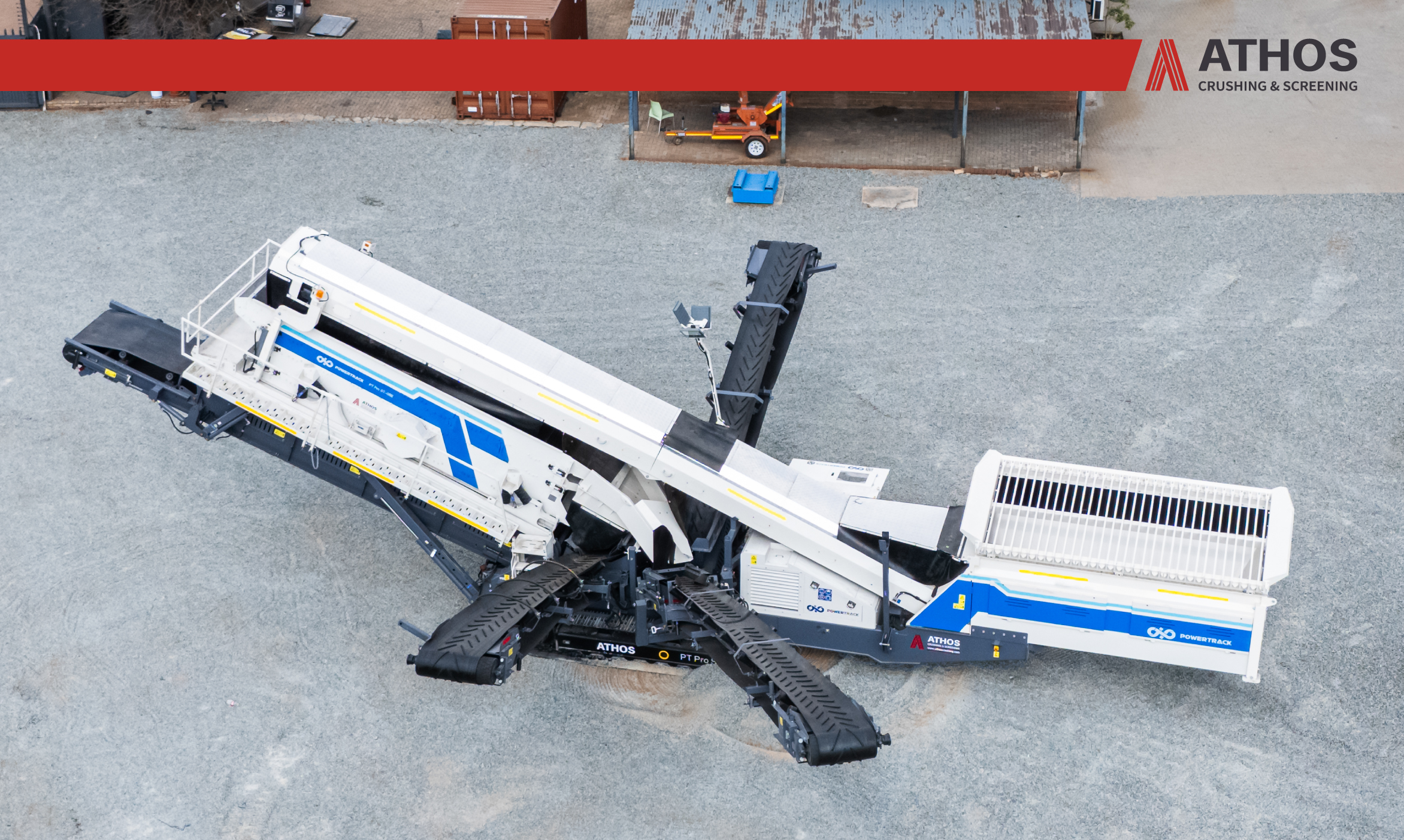

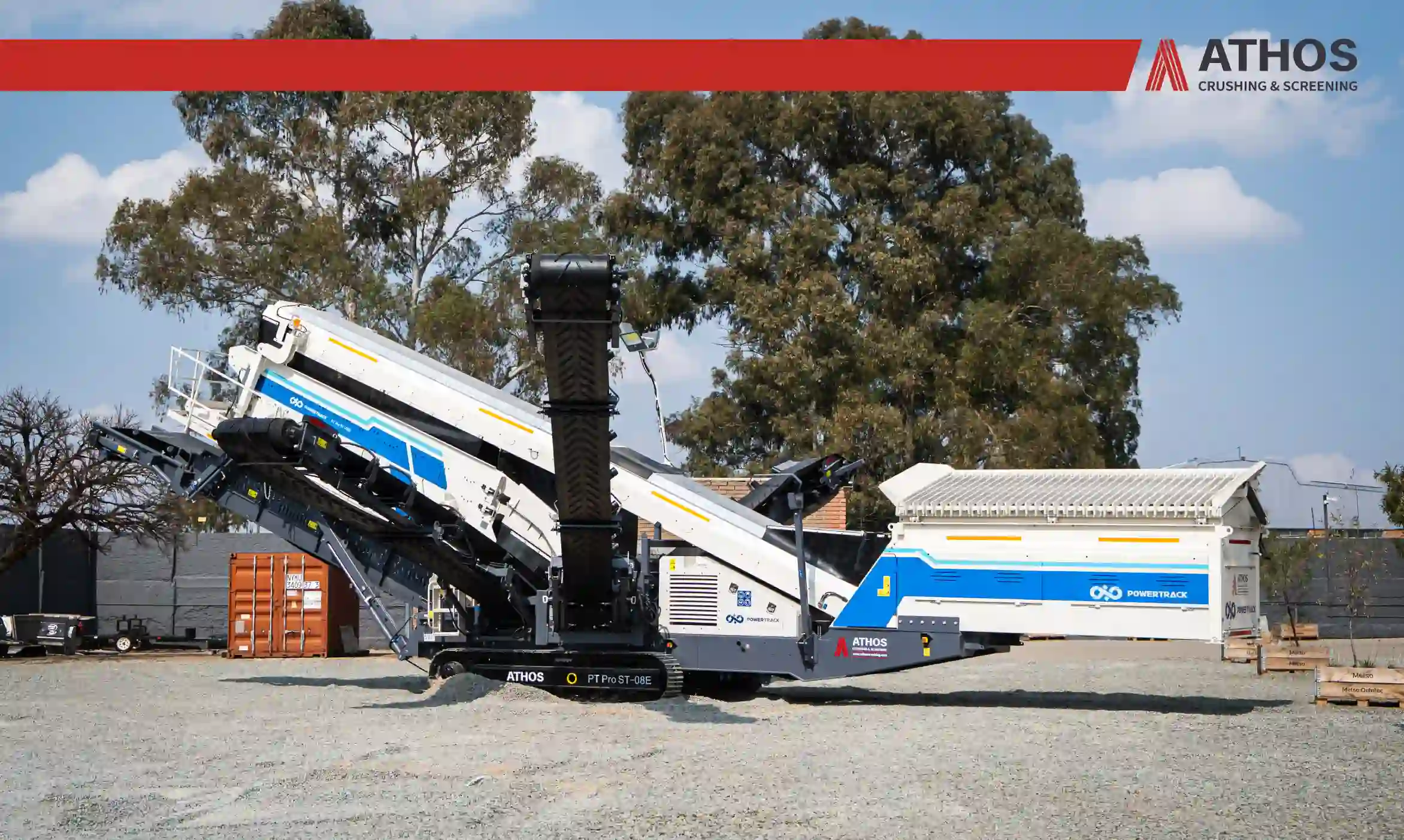

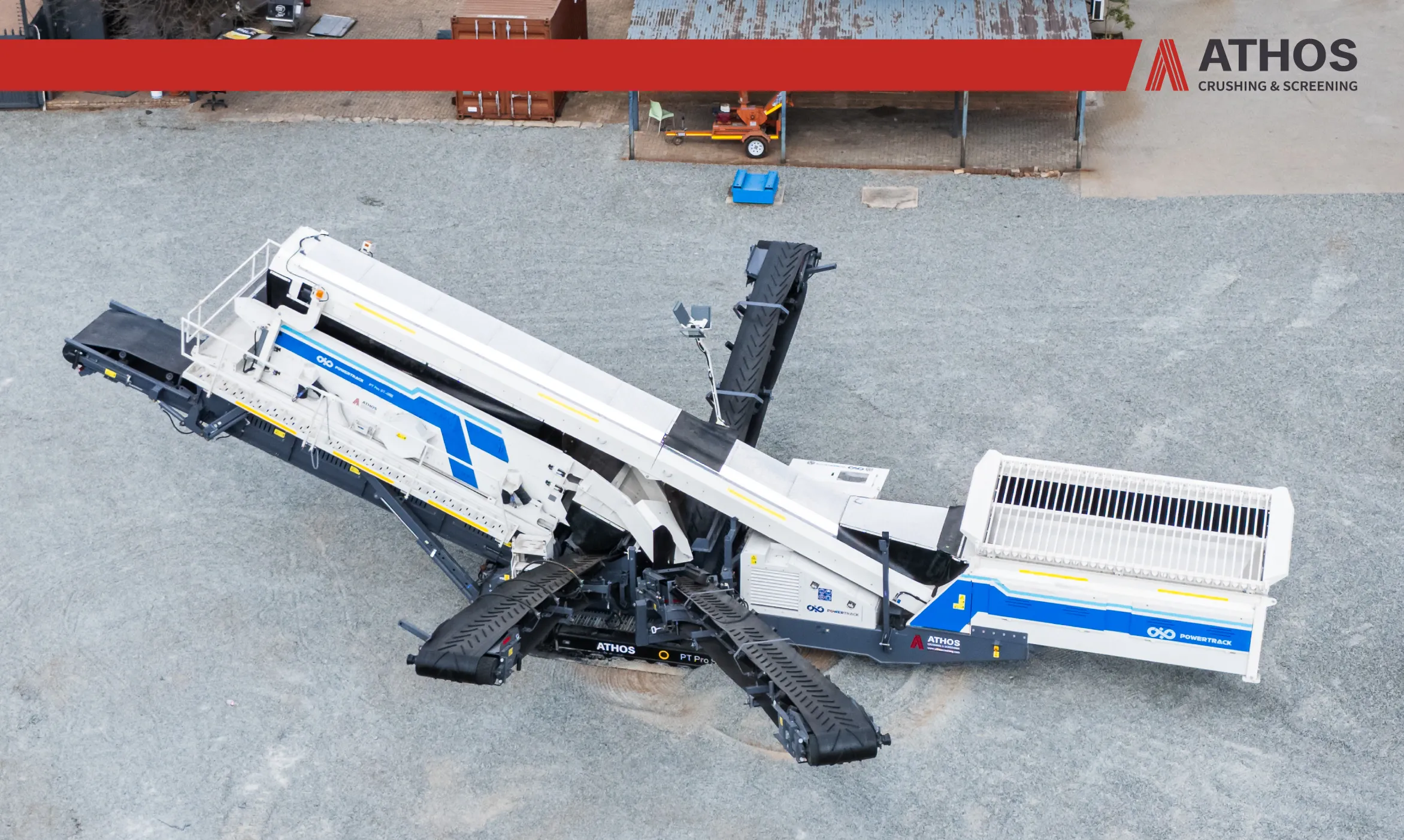

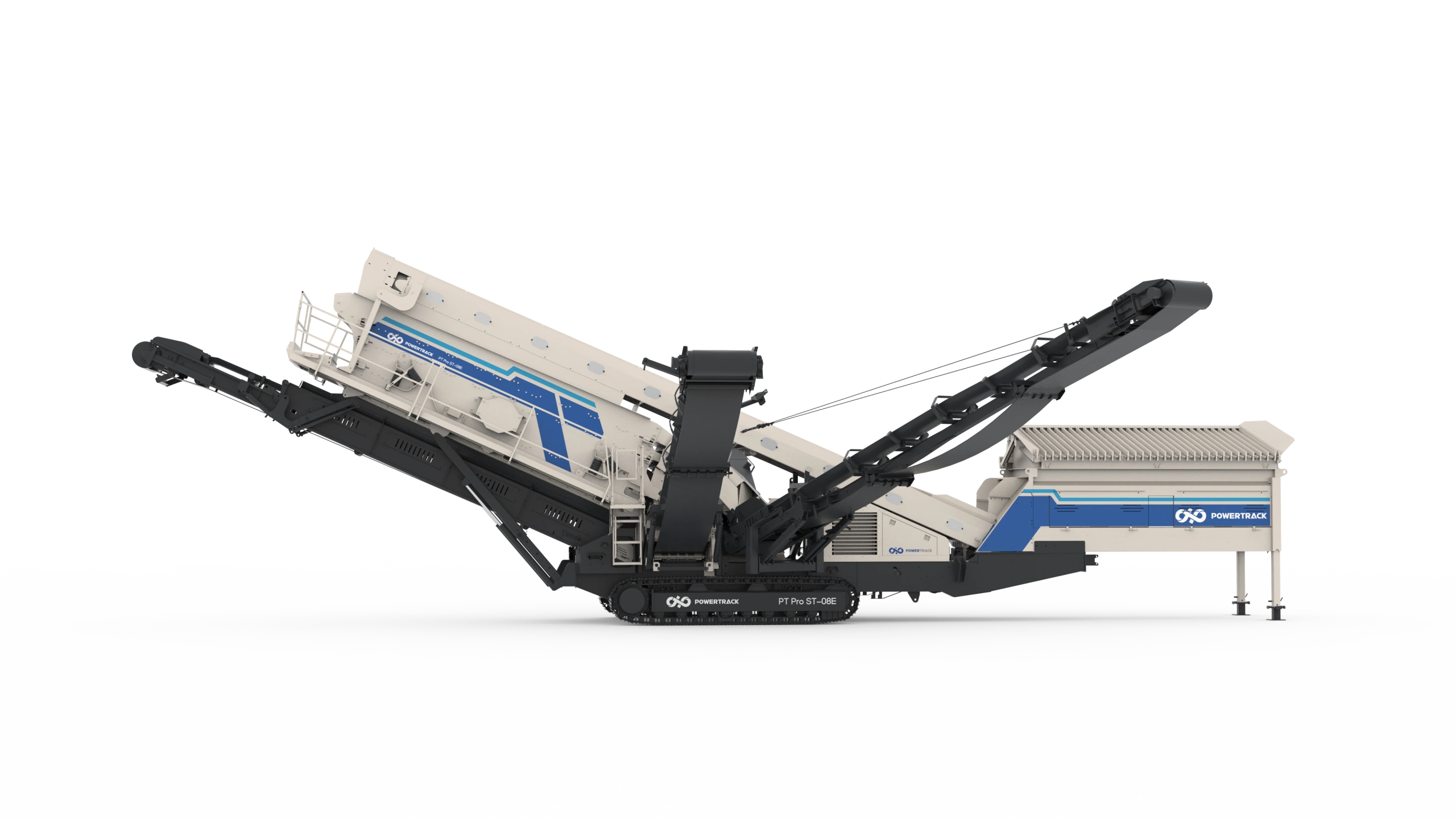

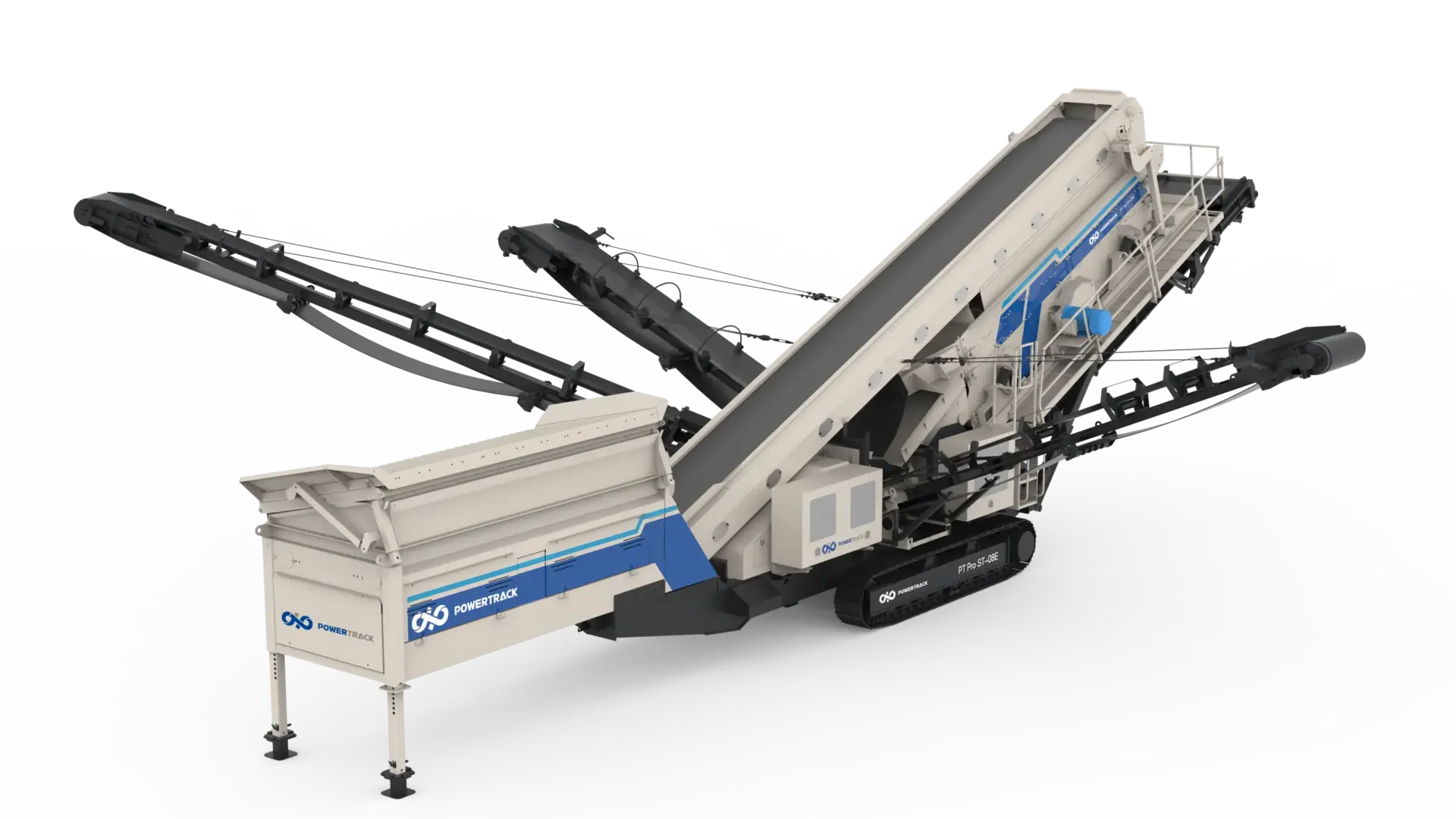

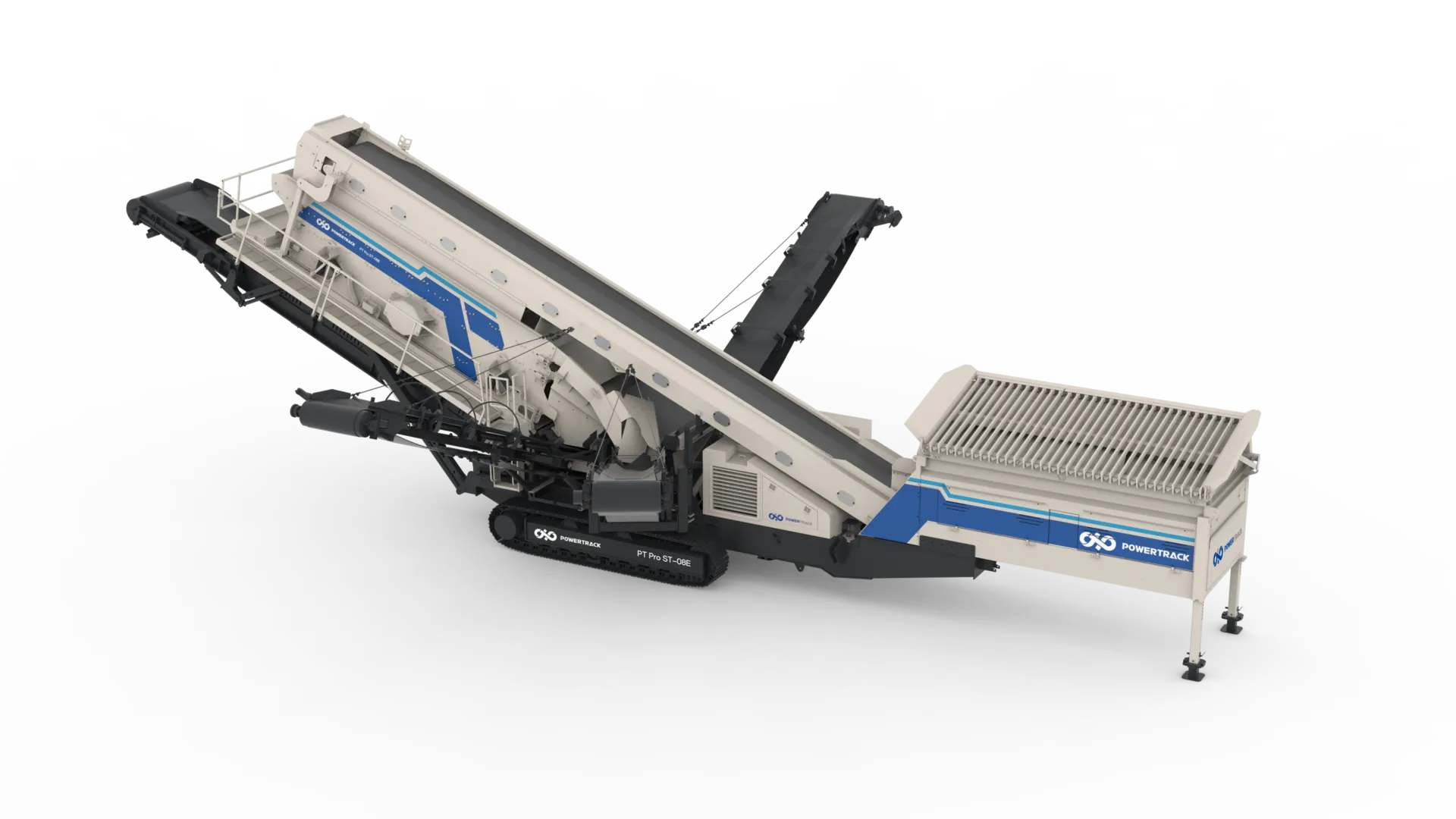

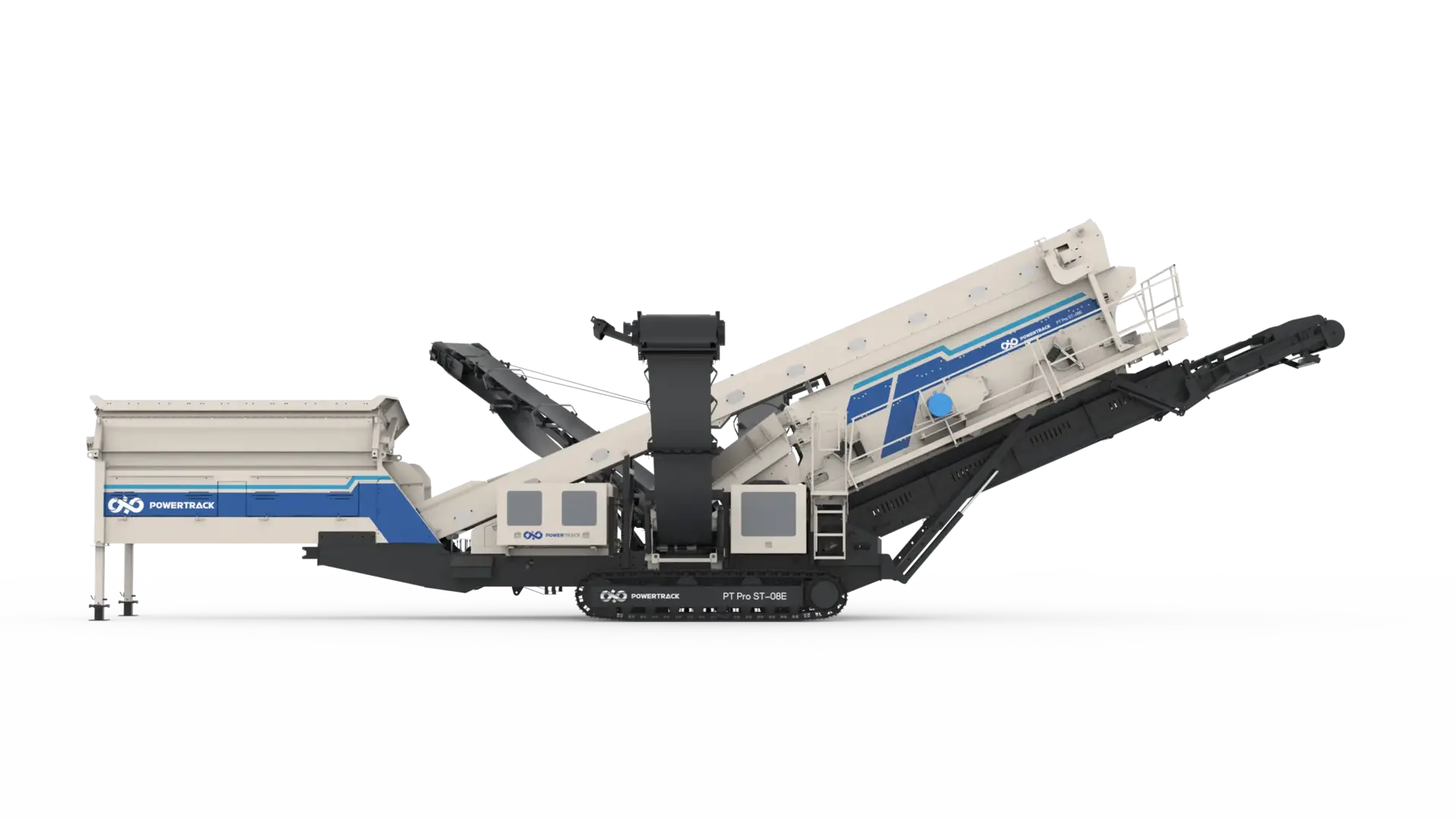

Mobile Screening Unit ST-08E
The Powertrack PT Pro ST-08E series mobile screening unit features an intuitive screen design, offering a range of screen media options tailored to the material properties for precise control over final product size and optimal screening efficiency.
These units are typically used alongside crushing equipment. With Metso’s technological expertise and Powertrack’s commitment to quality, customers enjoy purpose-built solutions at an attractive price point.
KEY FEATURES
Dual Powered
150-500tph
Hydraulic Tipping Grid
Triple Deck Screen
PRODUCT FEATURES
Three-deck screen with curved meshes design able to produce up to 4 end aggregates end products.
Premium components ensure excellent performance.

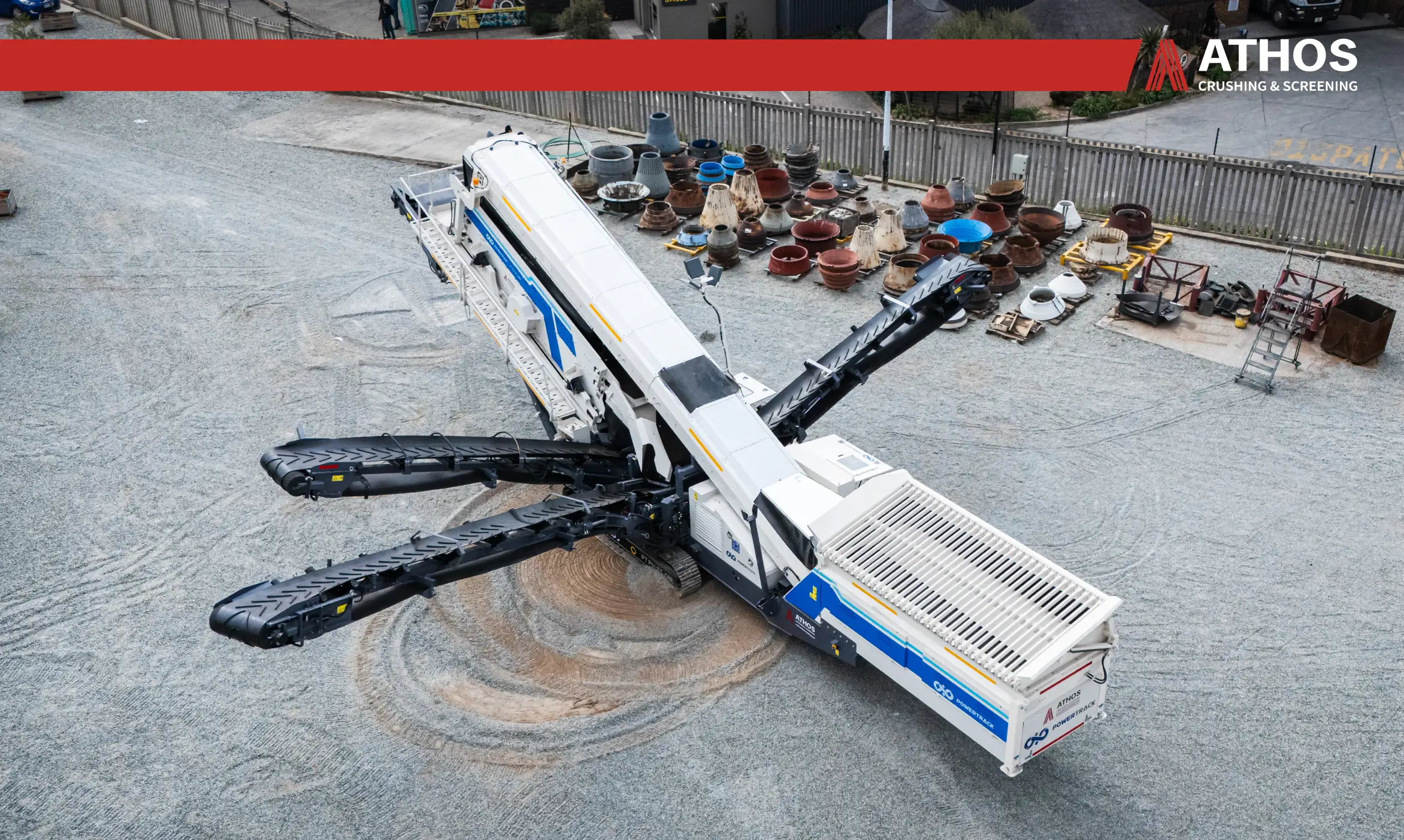

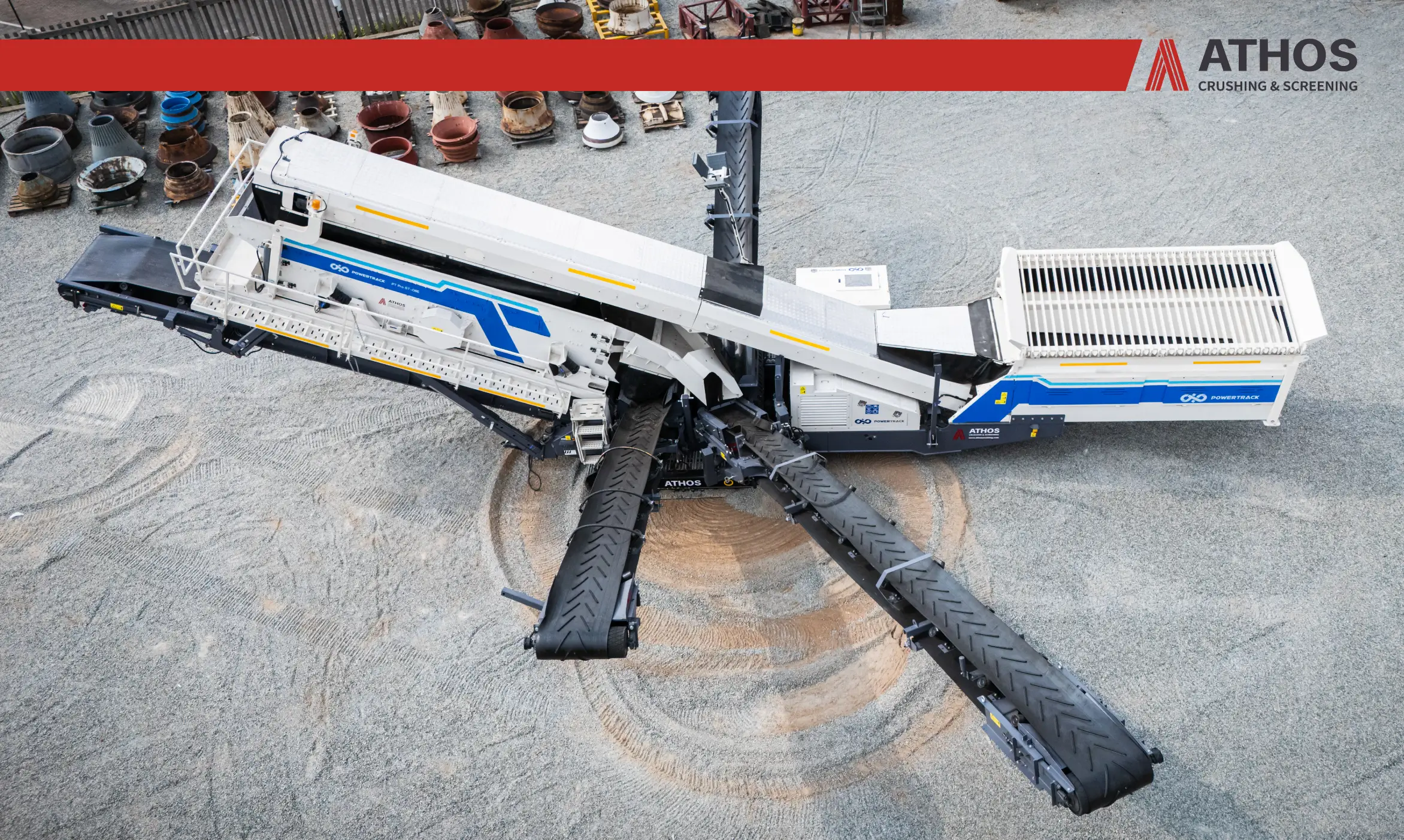

The tipping grid can remove large materials before screening.
The variable frequency feeding system suitable for various working conditions.

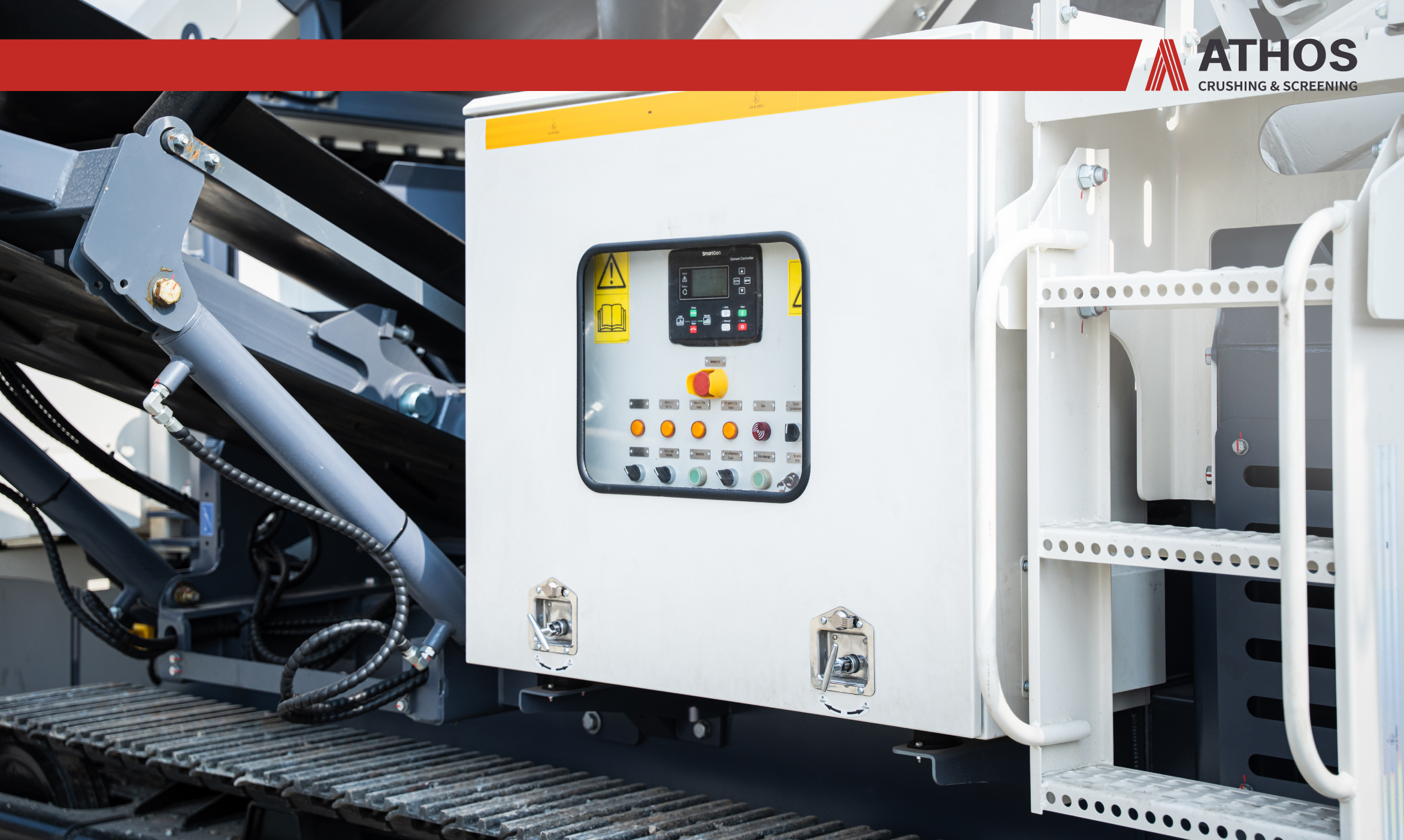

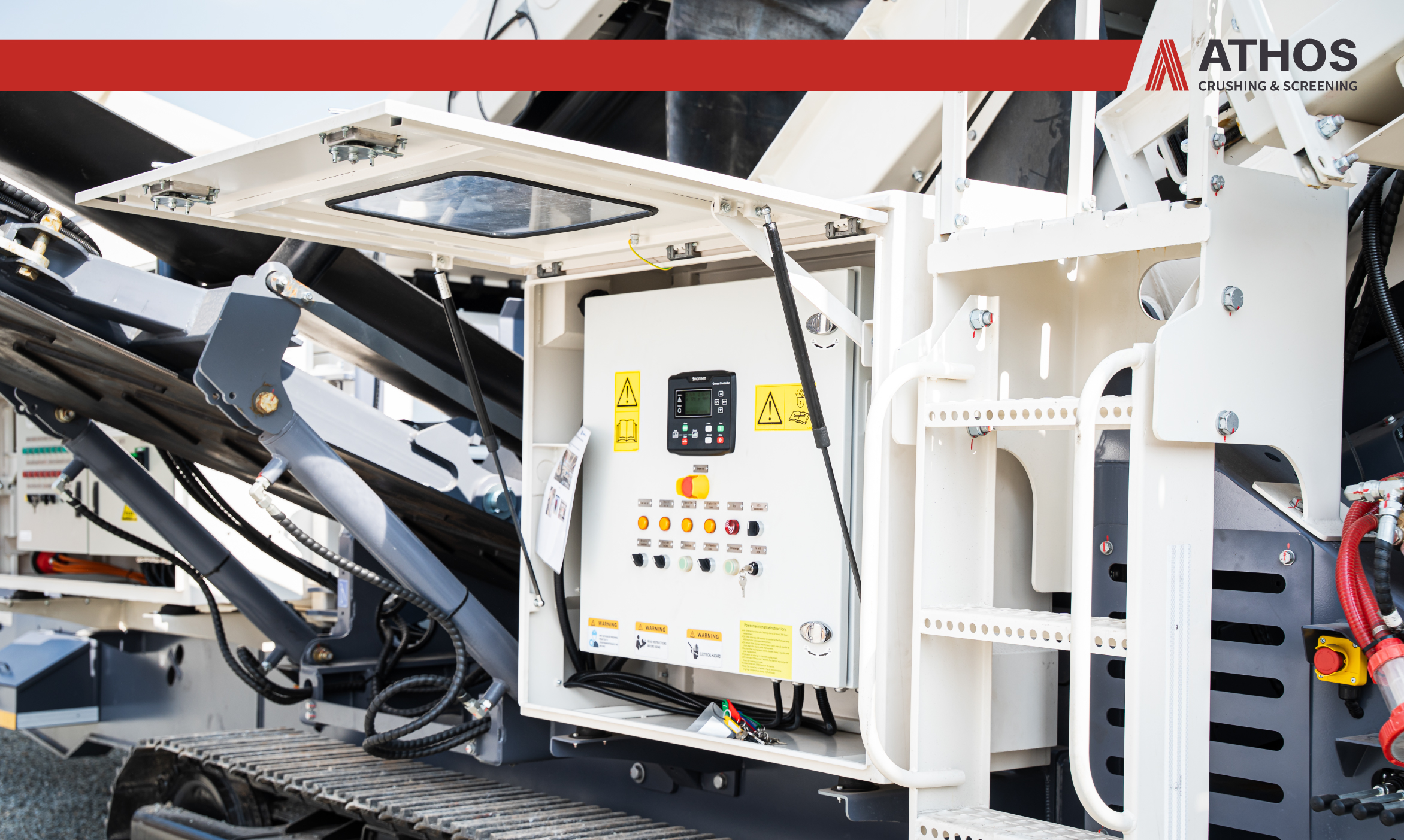

Plug-in electric driven brings energy saving, environmental protection and less maintenance.
SPEC TABLE
Power type | Electric power |
Capacity | 150 - 500 t/h |
Driving power | 60 kW |
Power unit | 110 kW, Cummins QSB3.9 |
Transportation dimension L x W x H | 18,000 x 3,150 x 3,650 mm |
Working dimensions L x W x H | 18,800 x 15,900 x 6,200 mm |
Weight | 32,000 kg |
Maximum recommended feed size | 150 mm |
Screening size | 5,480 x 1,520 mm |
Decks | 3 |
