Mobile Cone Crusher C-20E/S

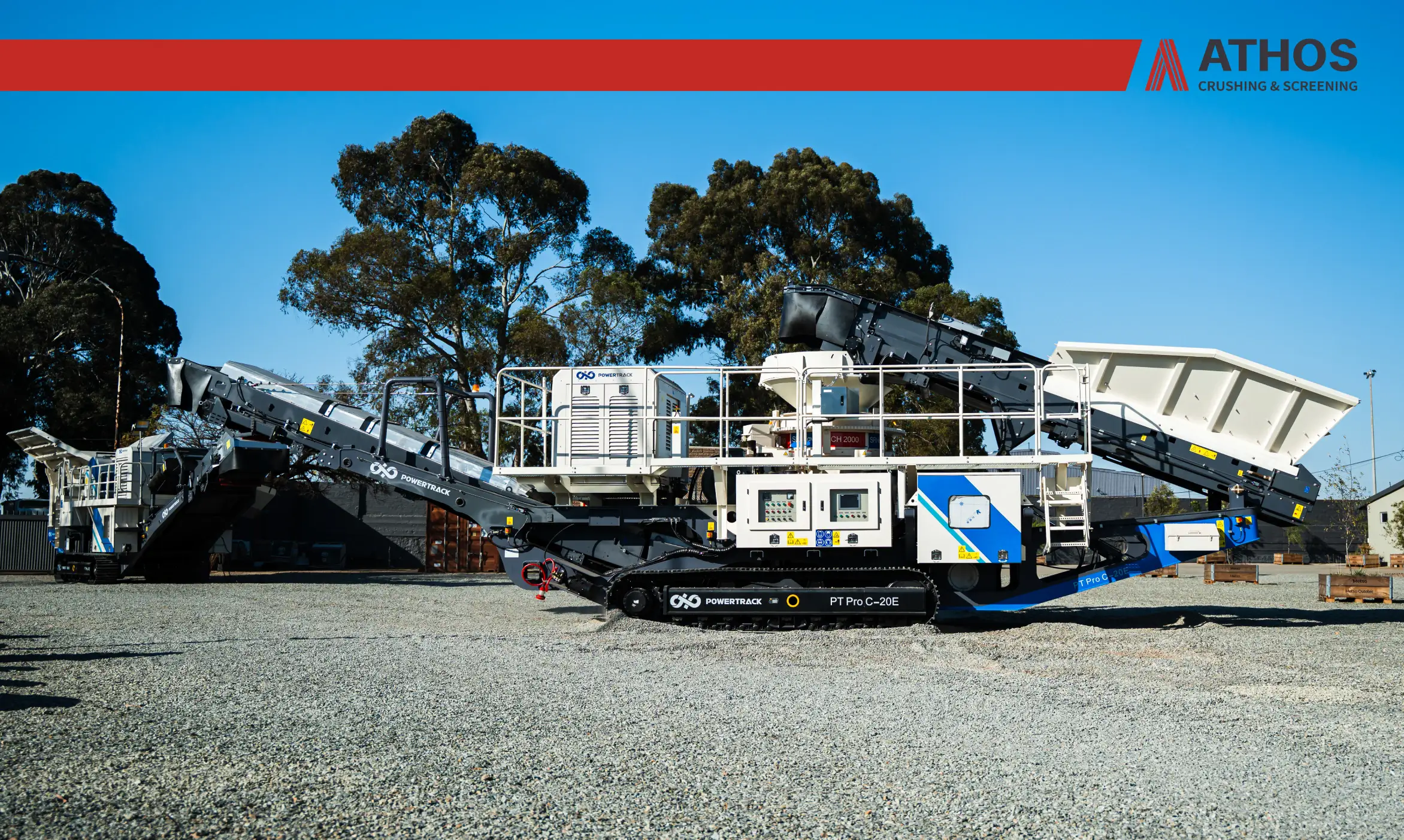

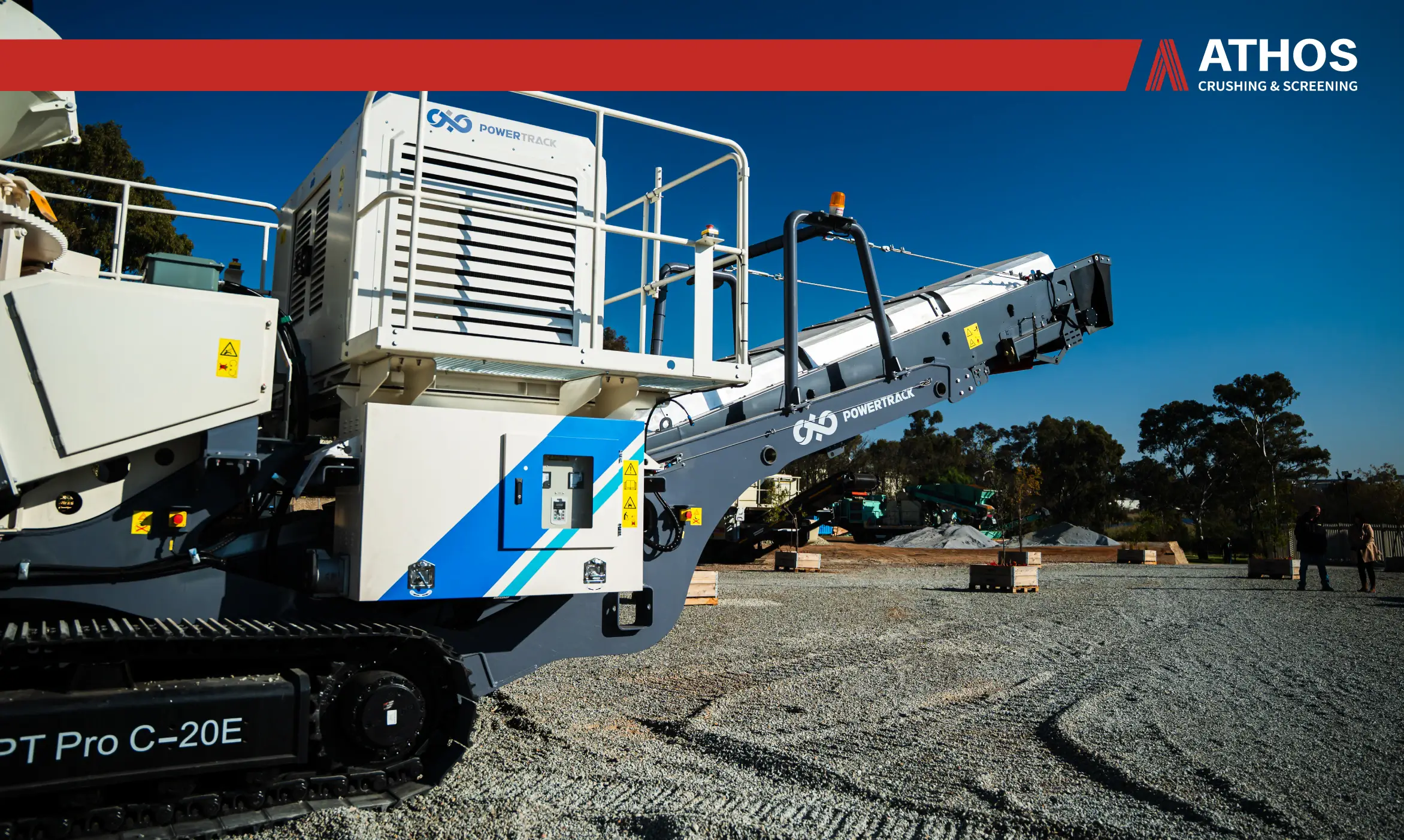

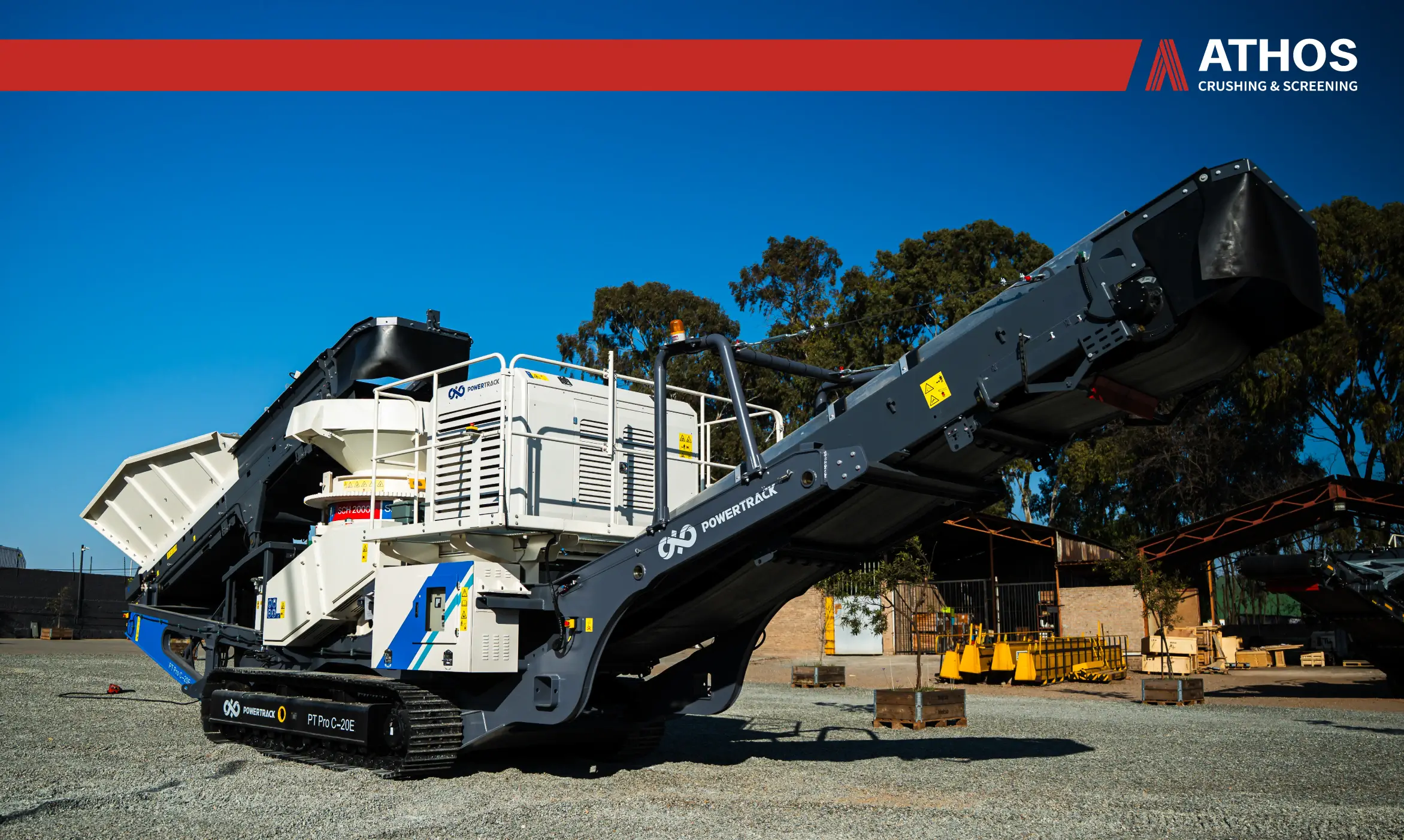

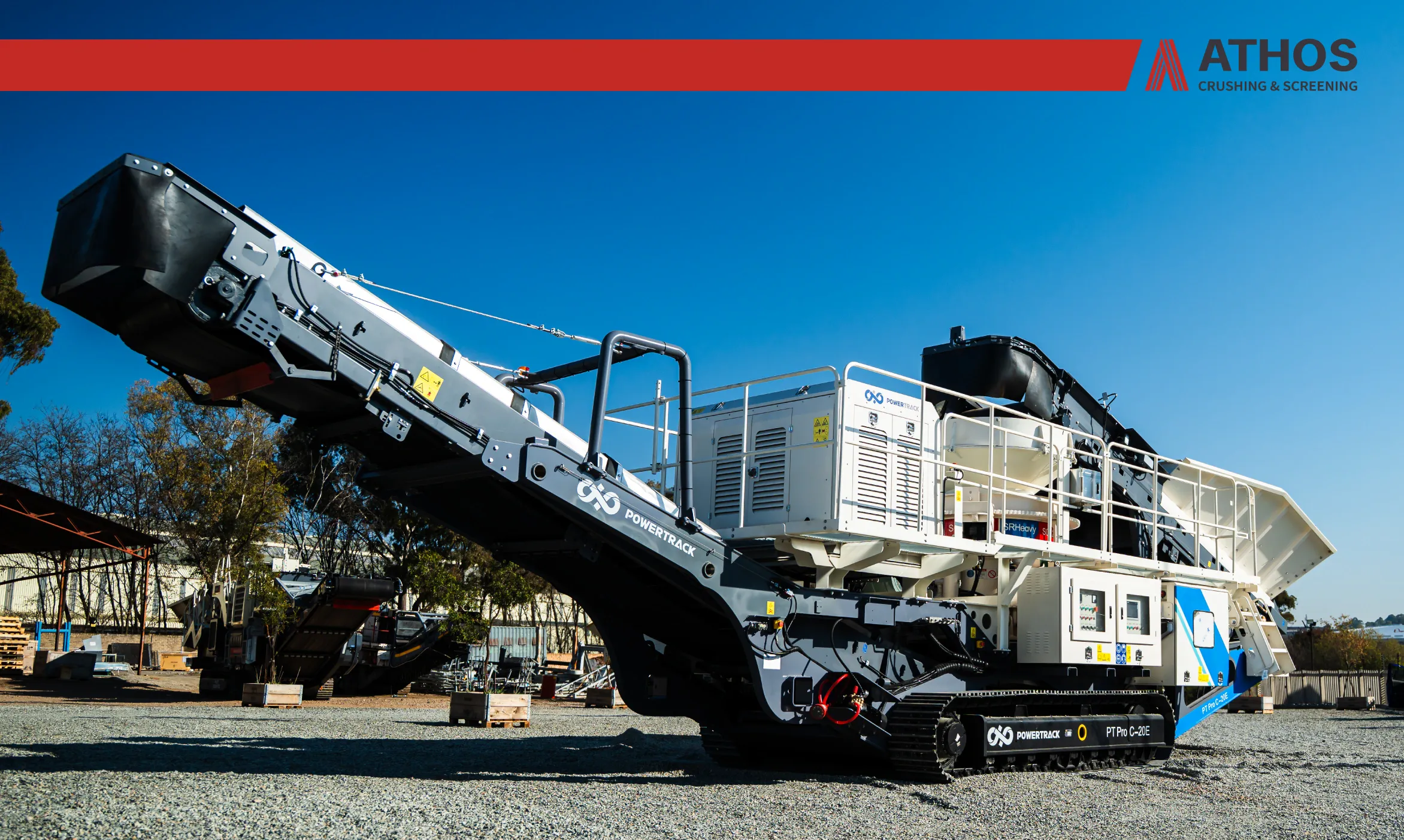

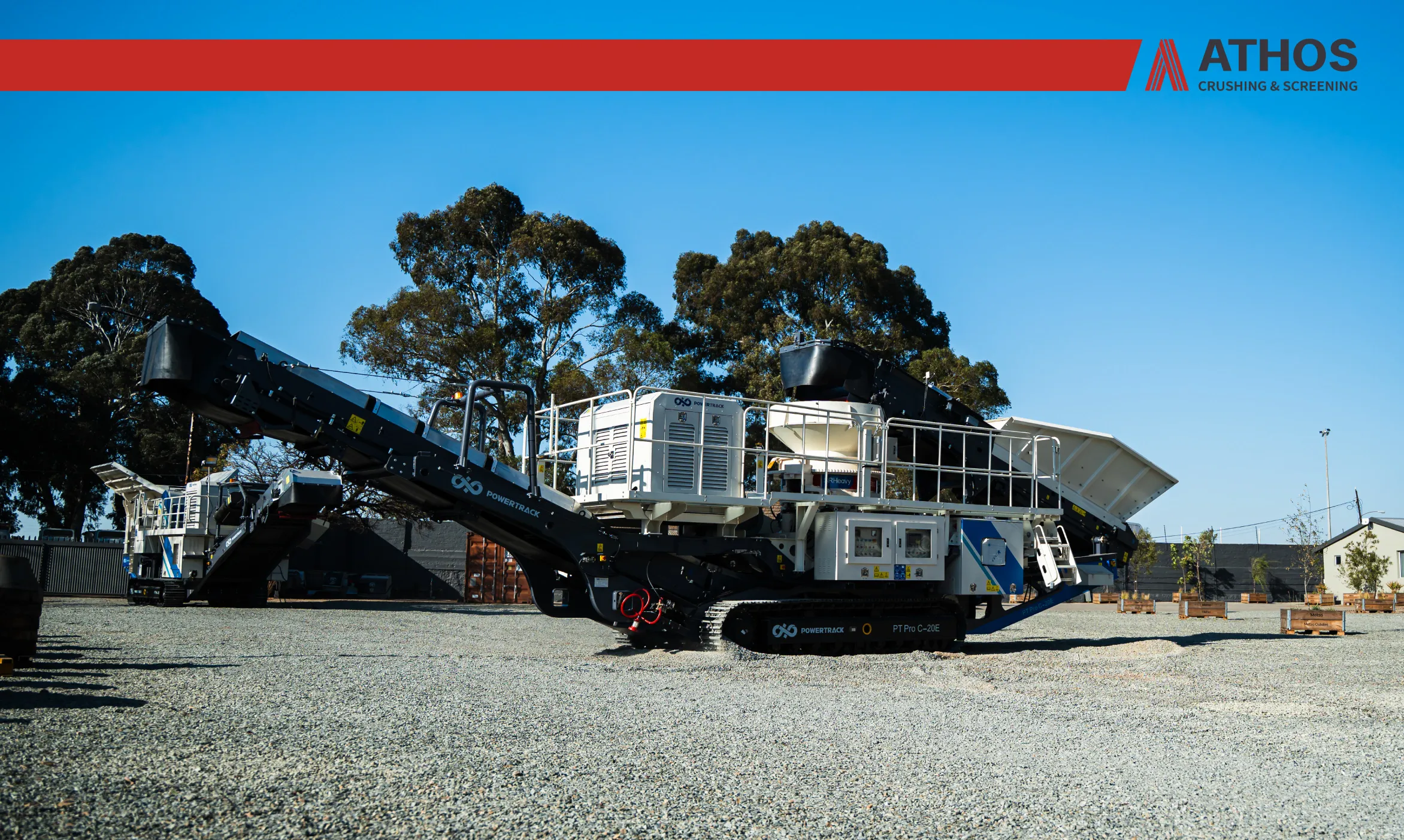

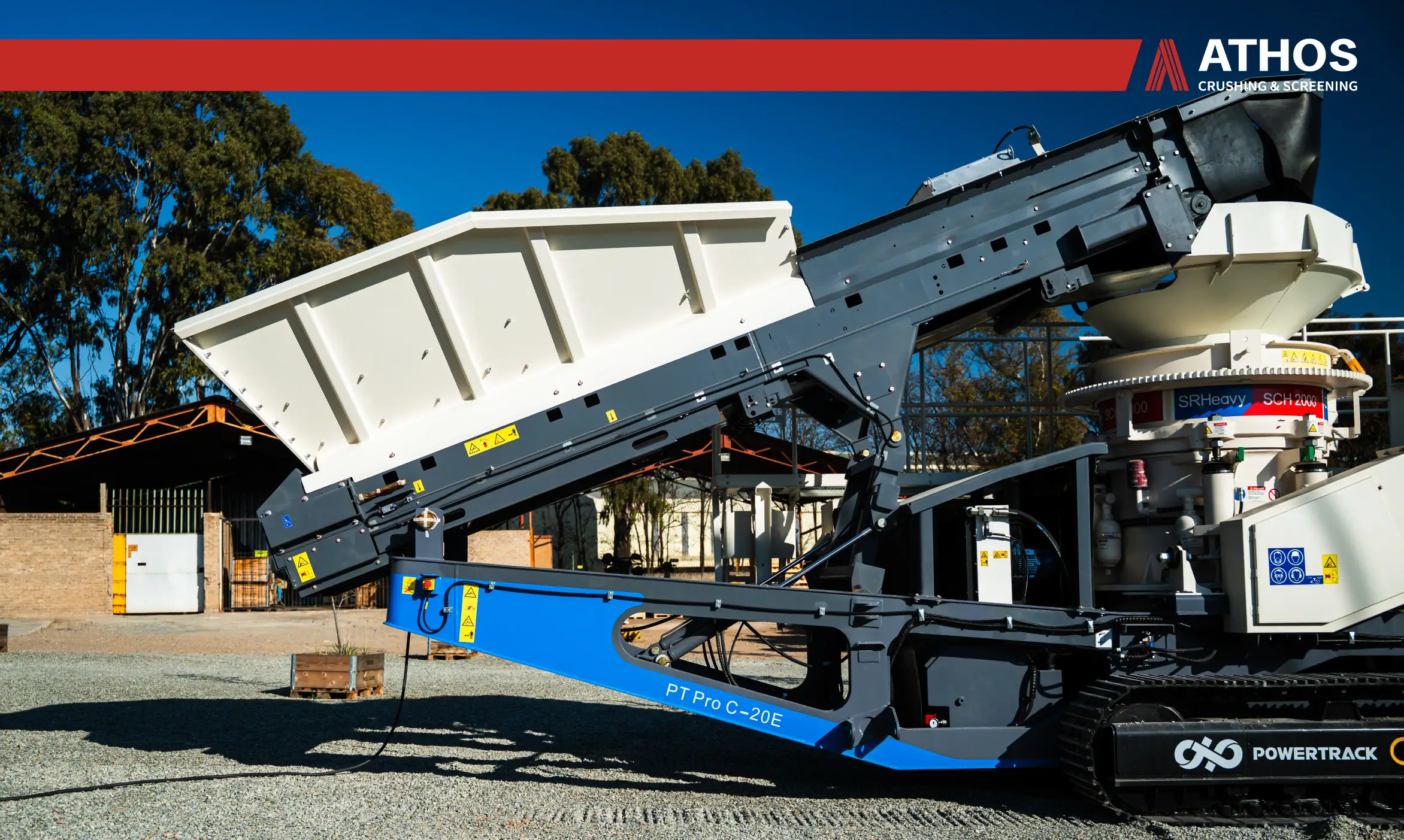

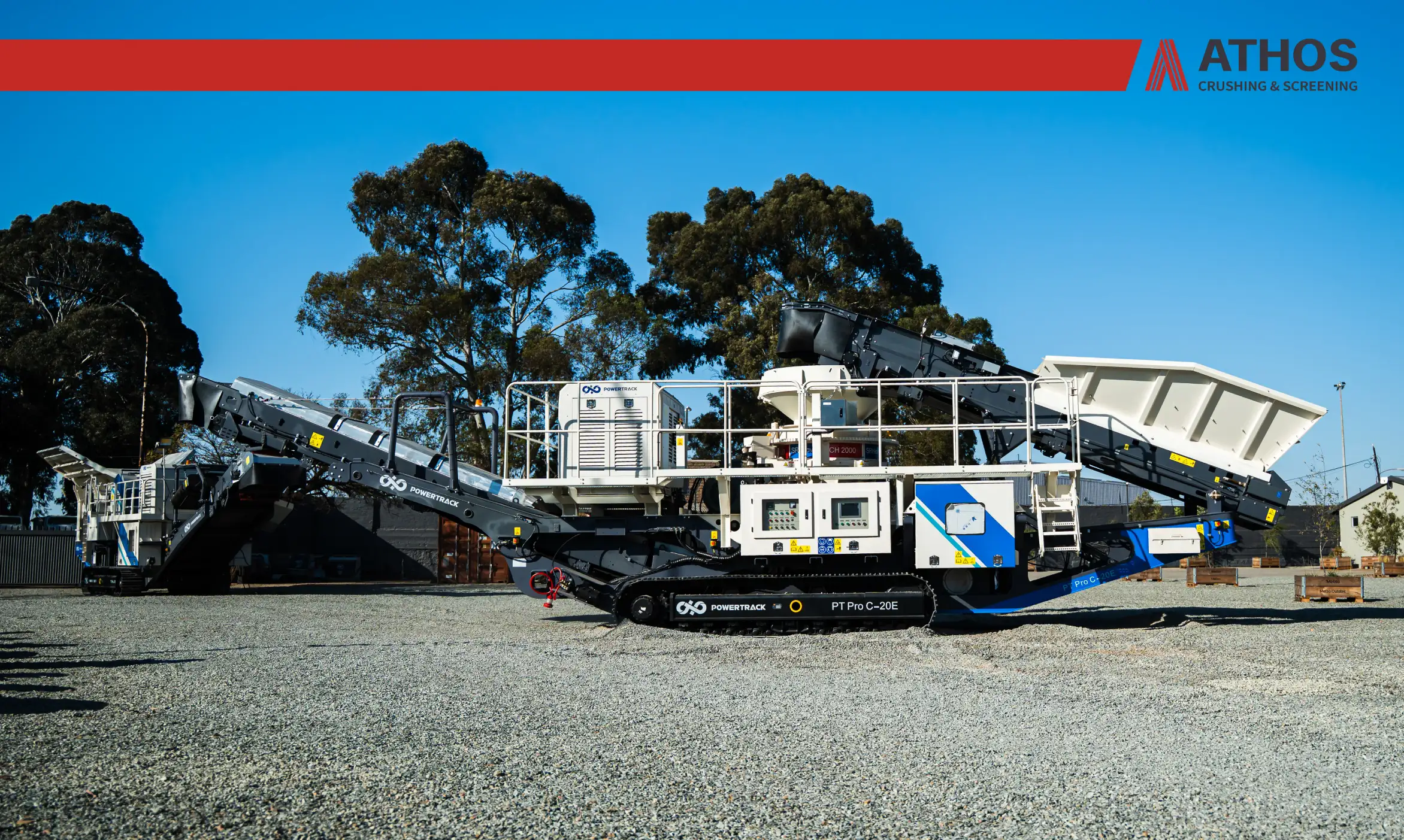

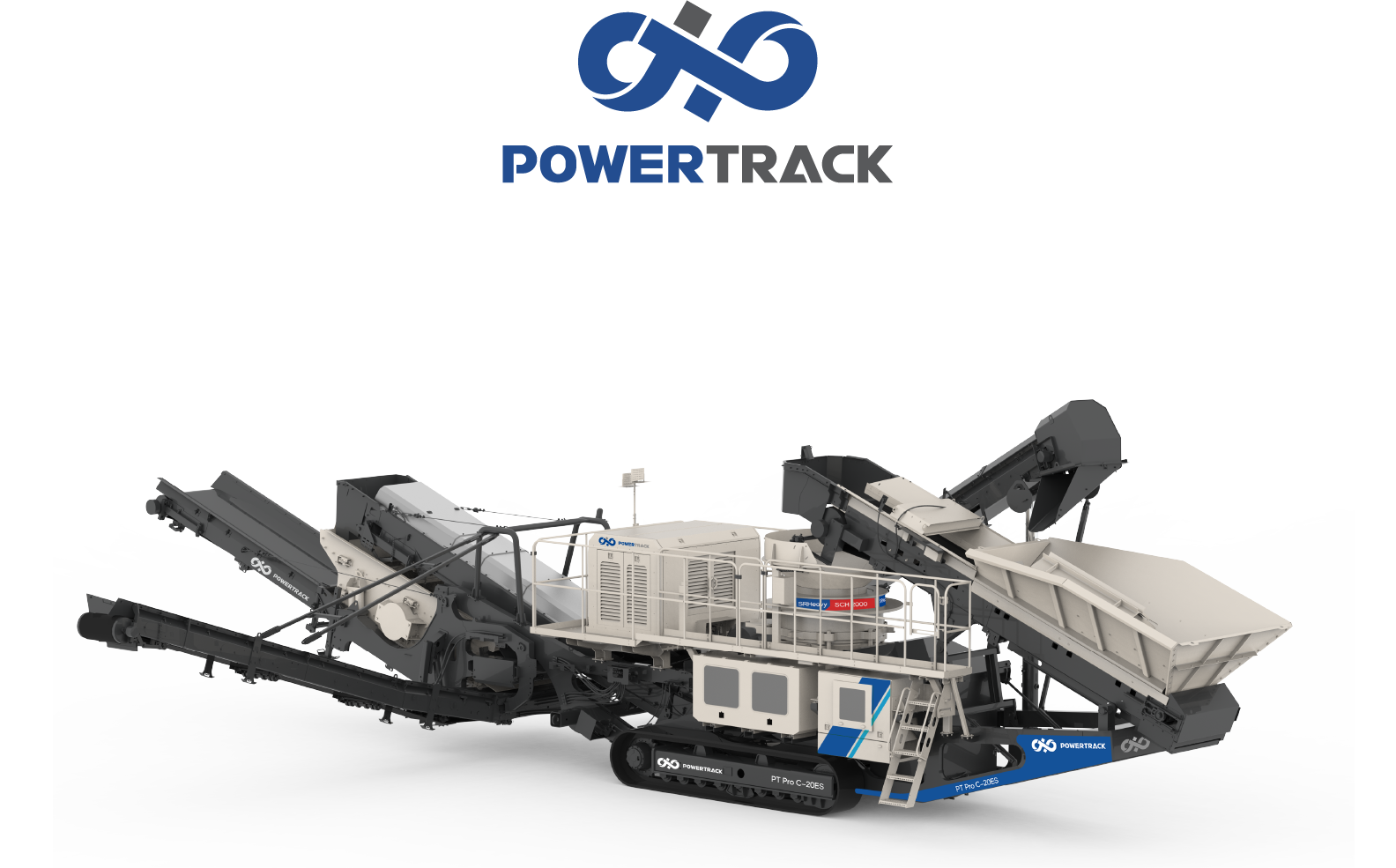

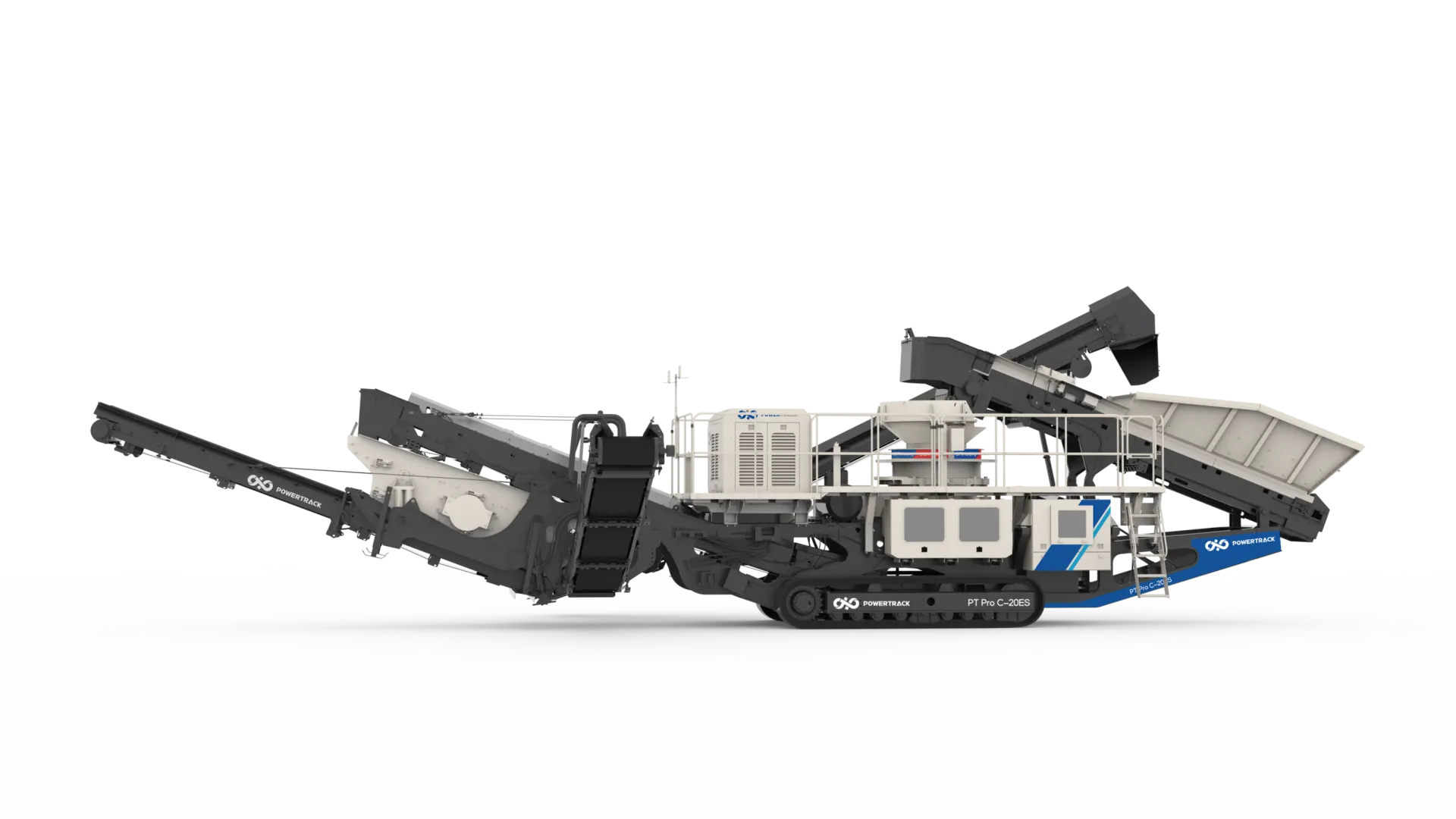

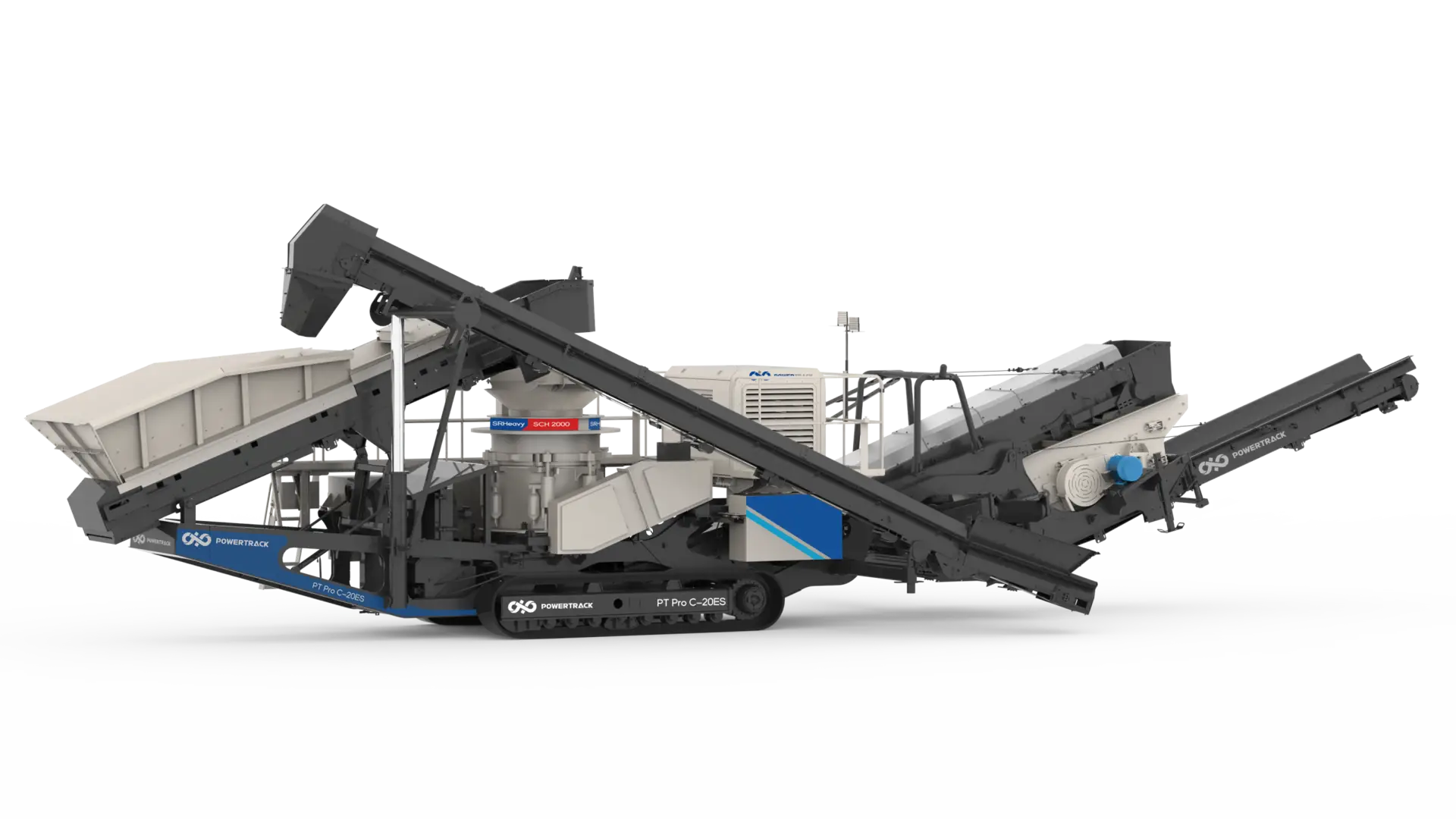

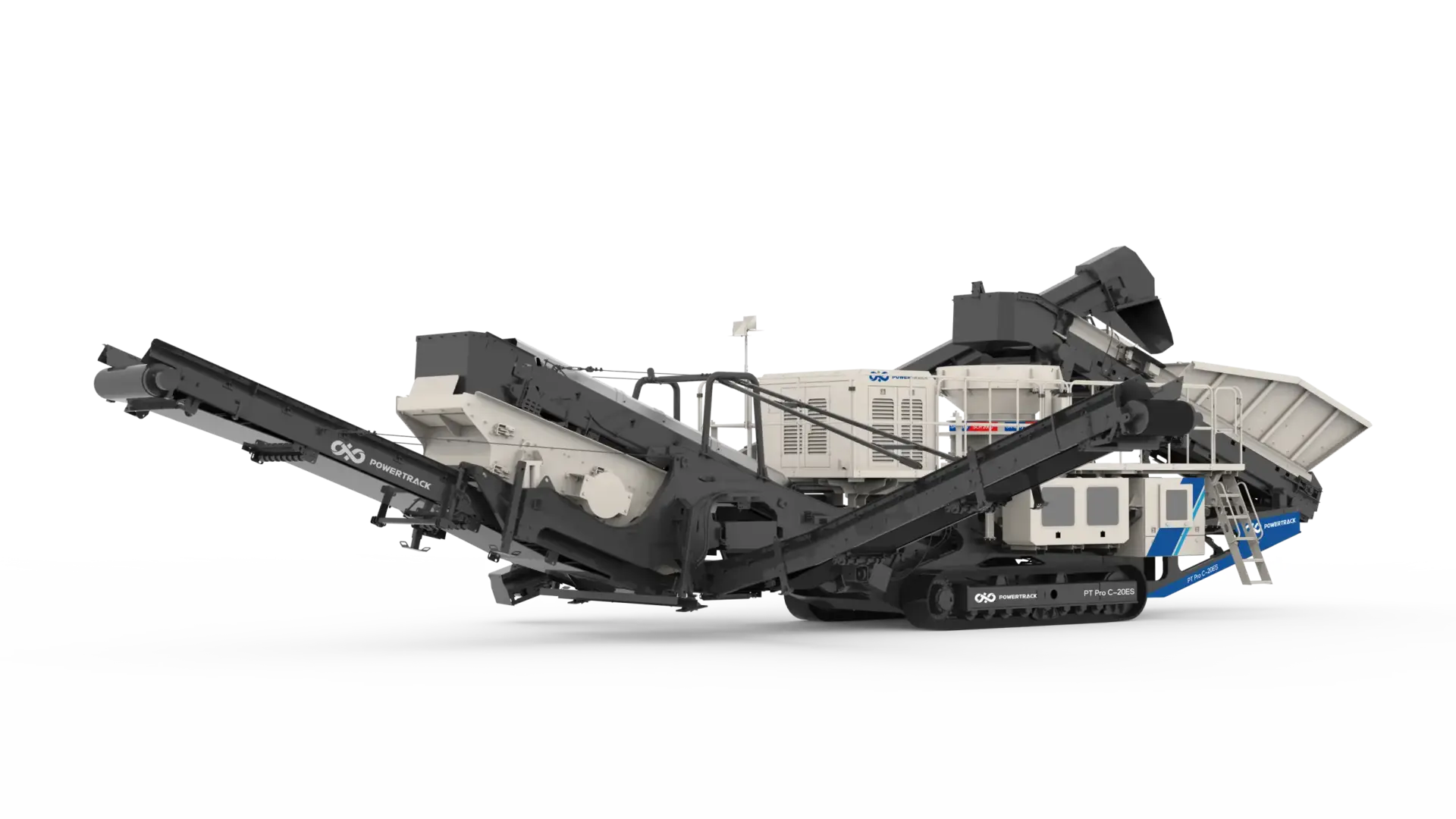

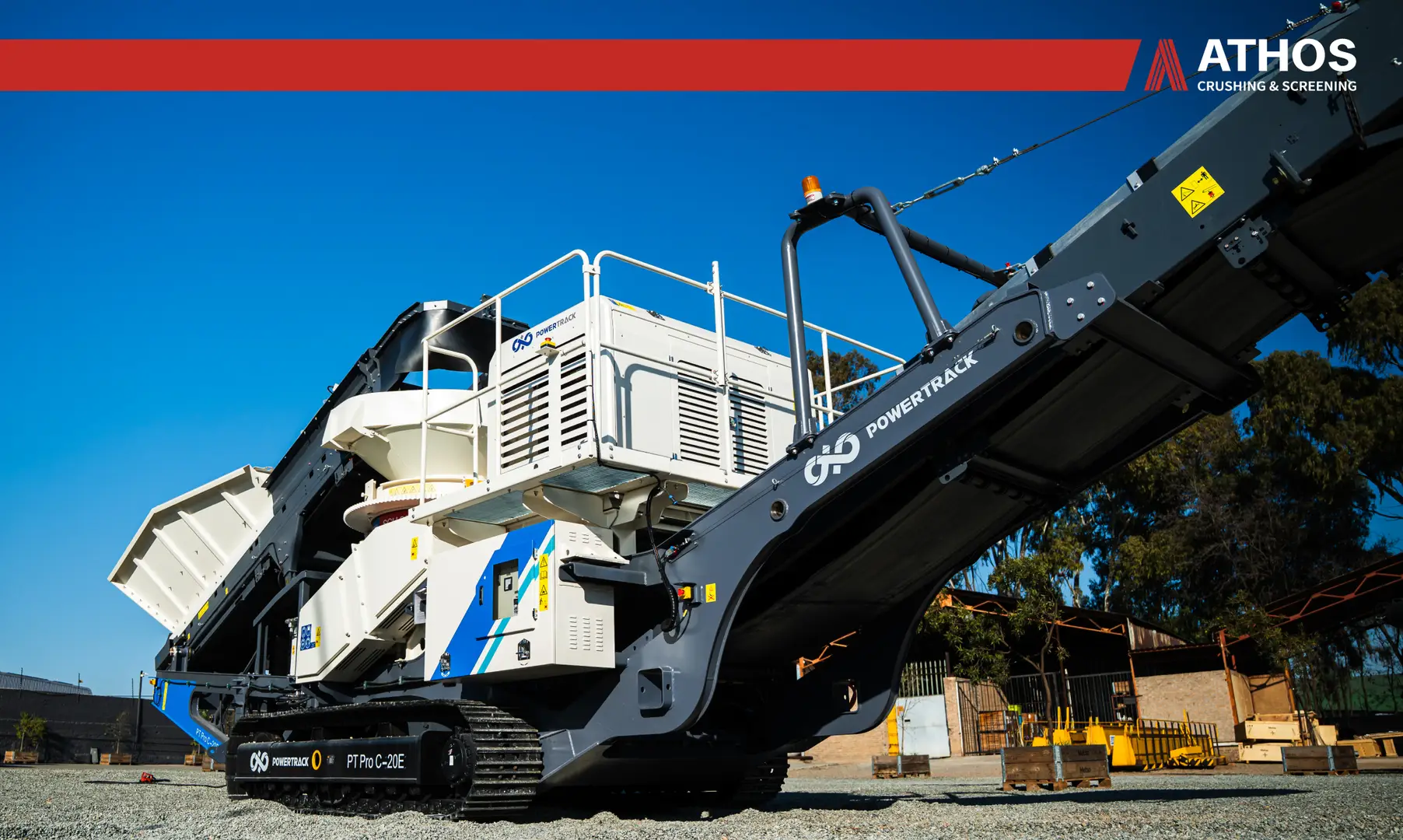

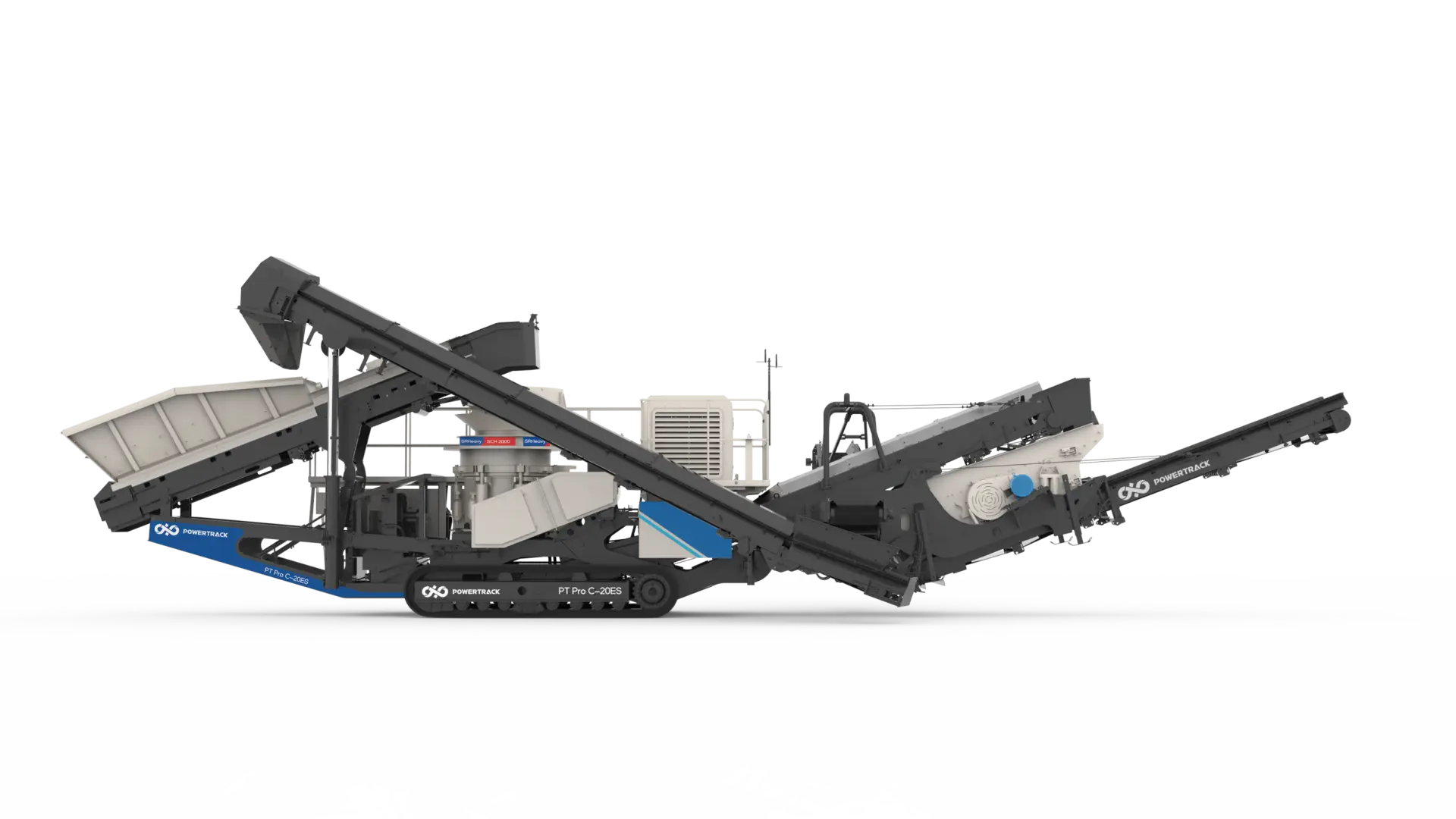

Powertrack PT Pro C-20ES is a mobile tracked cone crusher with an onboard double deck hanging screen and over-size recirculation conveyor suitable for secondary and tertiary crushing and screening applications.
At the heart, it hosts the SCH2000 cone crusher with high power and large stroke yielding impressive production rates and high-quality calibrated end products. The proven design ensures machine reliability ease of maintenance. The crusher comprises of an electric drive reducing operating costs and allowing the machine to operate either from generator or grid supply.
KEY FEATURES
Dual Power
Backing-less liners
Up to 250 tph
Optional Hanging Screen

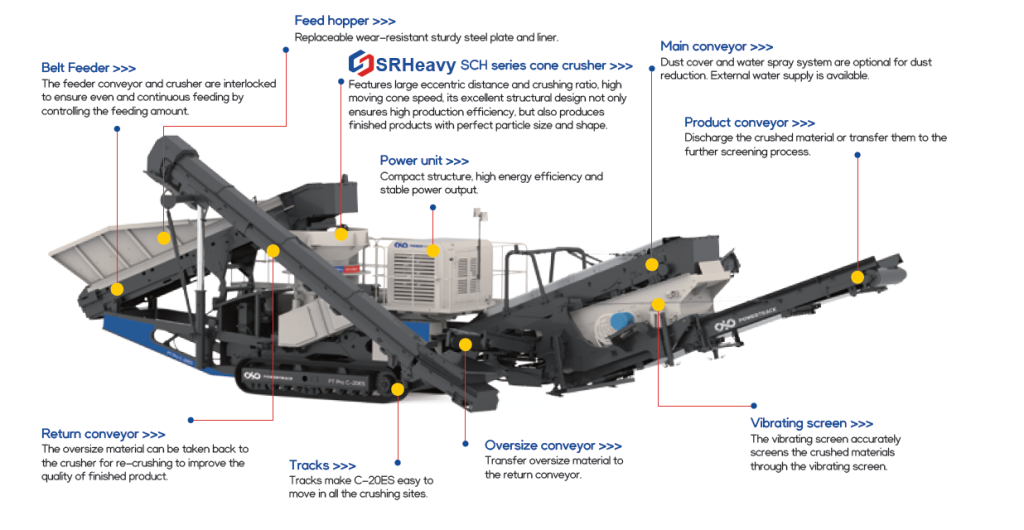

PRODUCT FEATURES
SRHeavy® SCH hydraulic cone crusher features a large eccentric stroke combined with a high crushing ratio and aggressive kinematic force to produce quality shaped end products.
The SCH range offers several liner cavities to suite secondary, tertiary and even quaternary crushing applications.
Equipped with double-deck detachable screen module, which can produce 2 end products in close circuit or 3 end products in open circuit proving great flexibility.
Metal detector to avoid uncrushable steel from entering the crusher
Level sensor for automatic and optimized control of the feeding according to crusher cavity level.
SPEC TABLE
Capacity | Up to 250 t/h |
Total Installed power | 218/246 kW |
Transport dimensions | 17150x3450x3700mm |
Working dimensions | 20000x12400x5600mm |
Weight | 47000 kg |
Loading height | 2800mm |
Loading width | 2400mm |
Cone Crusher | |
Maximum feed size | 185mm |
Power | 132/160 kW |
Belt Feeder | |
Hopper volume | 5m3 |
Power unit | Supply via grid or generator |
Hanging screen module | |
Decks | 2 |
Size | 3000x1500mm |
Conveyors | |
Product conveyor discharge height | 3200mm |
Mid-size conveyor discharge height | 2400mm |
Main conveyor discharge height | 2200mm |
