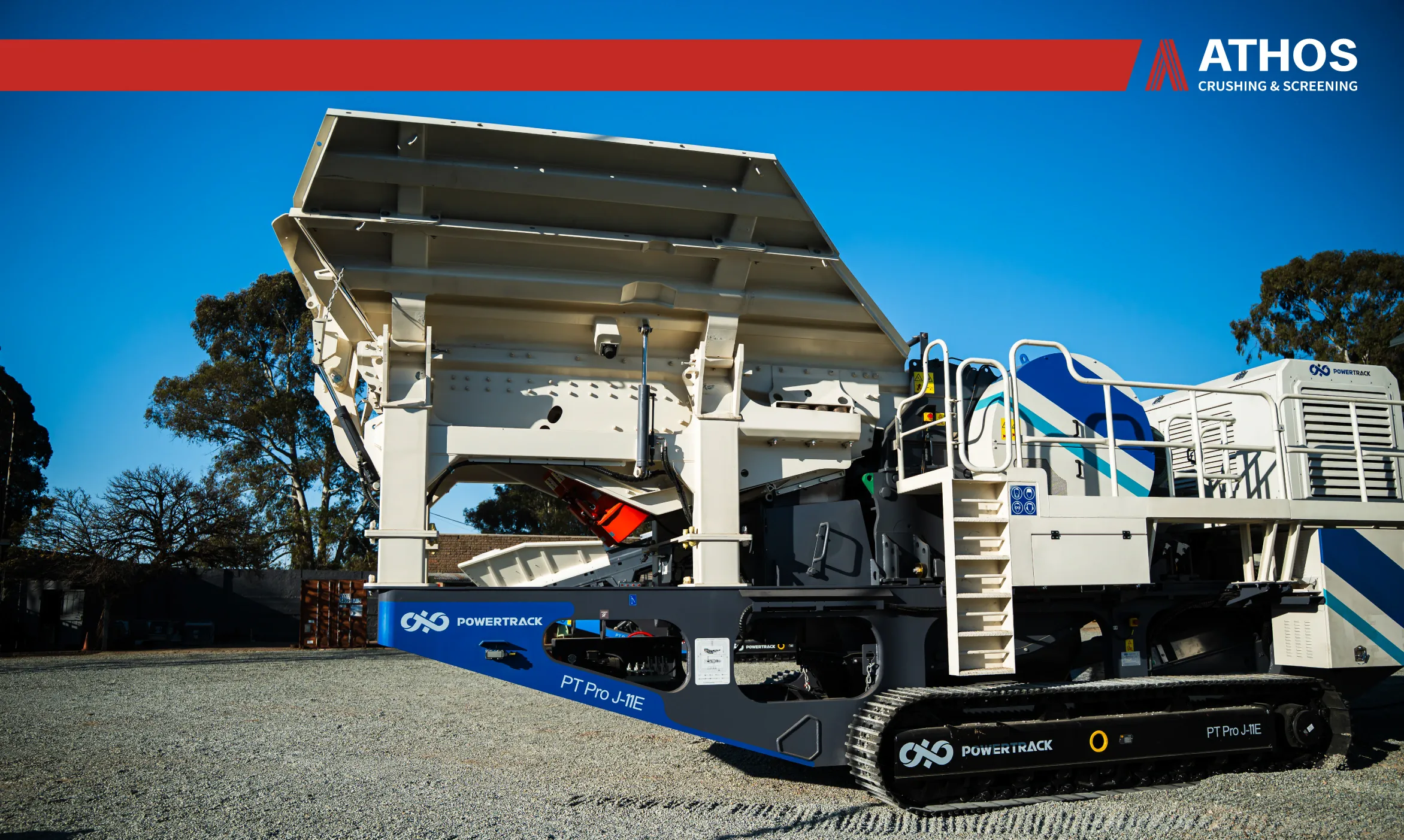

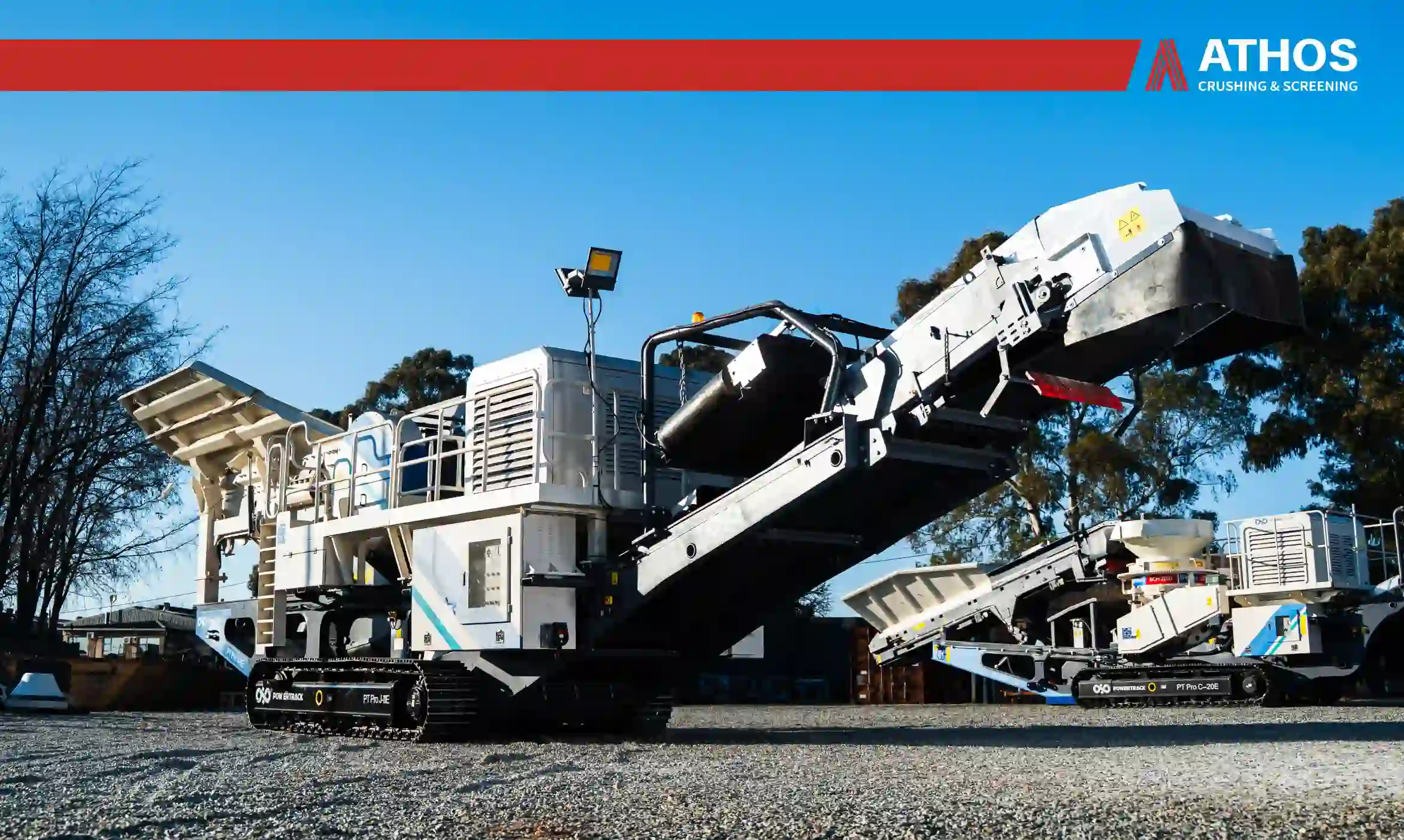

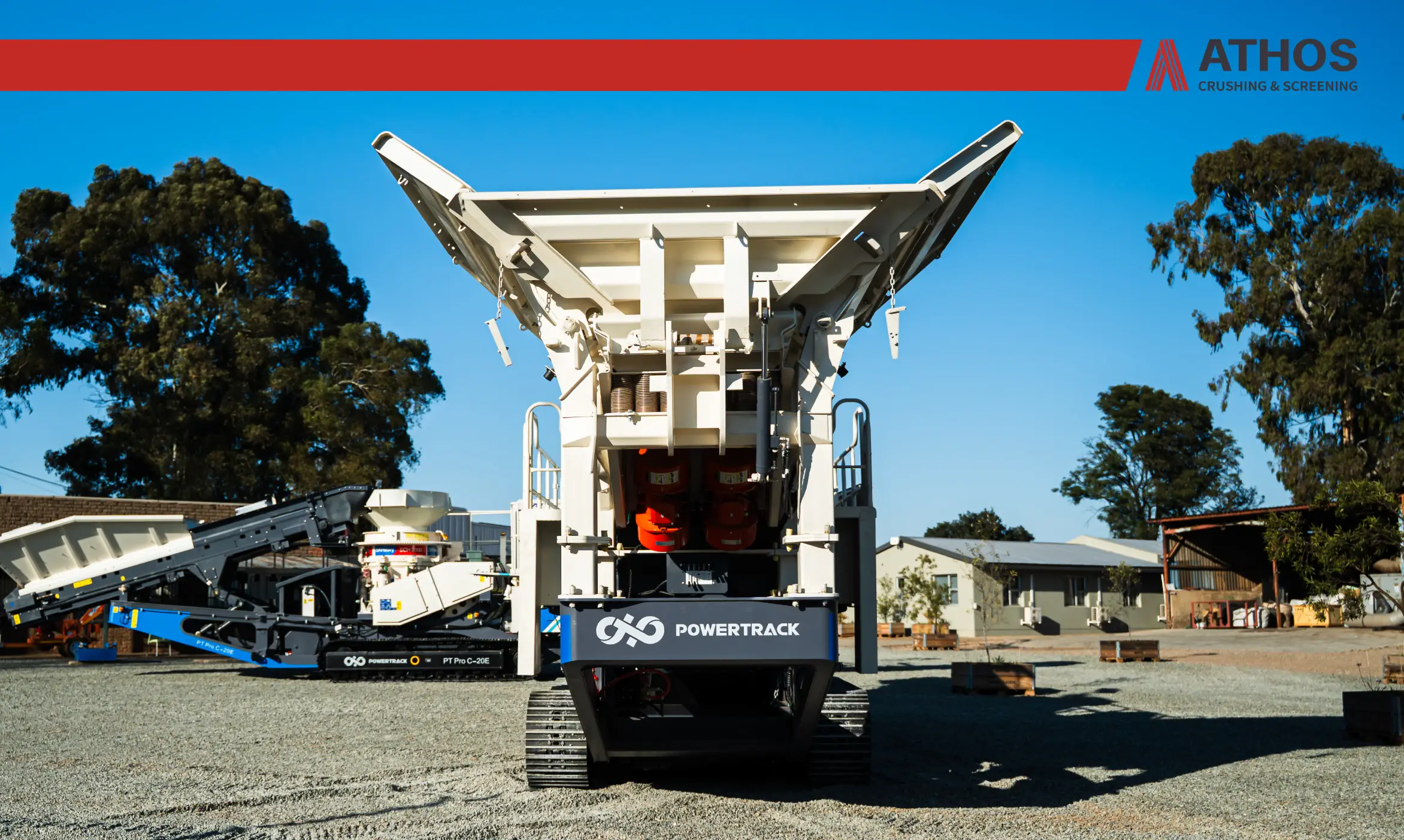

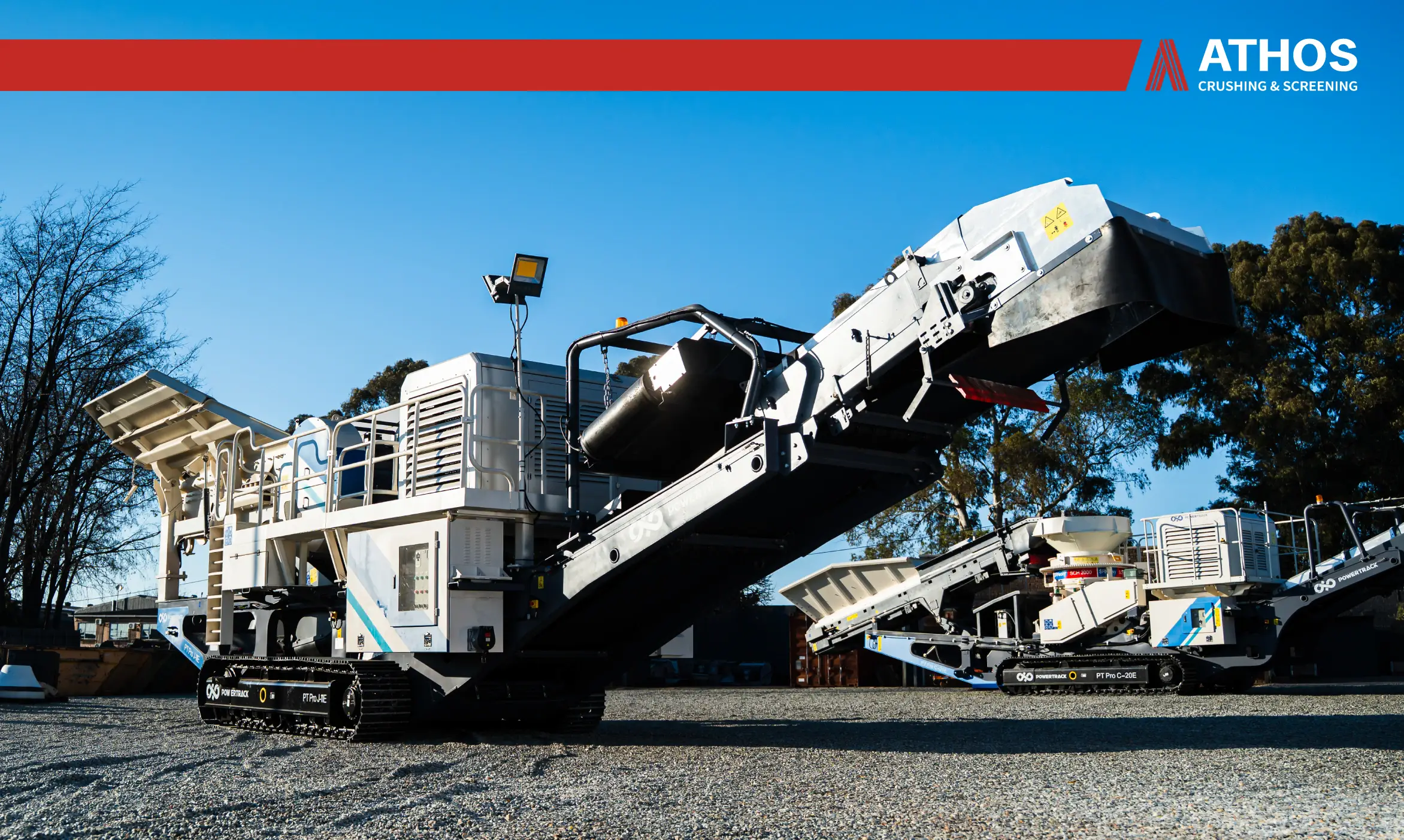

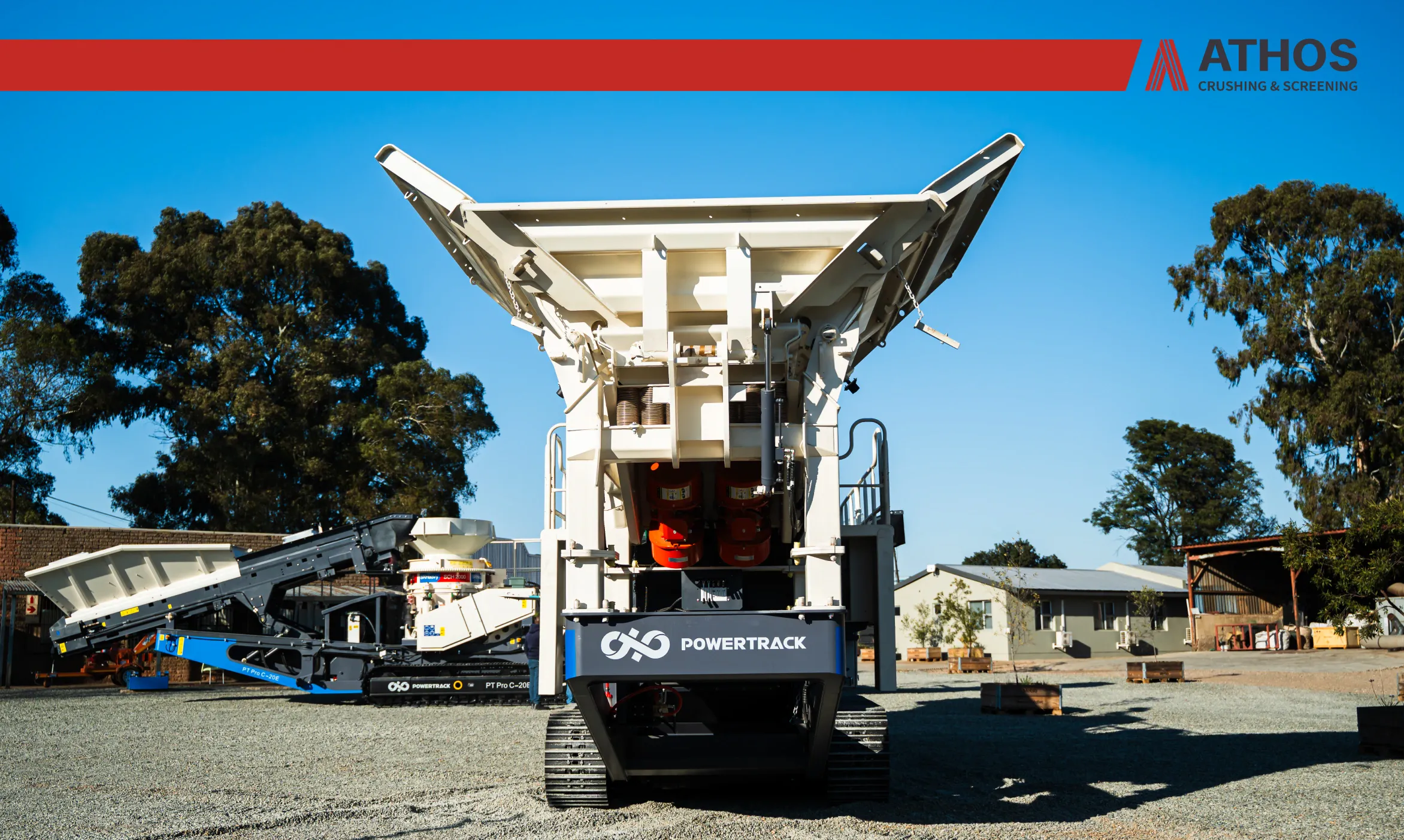

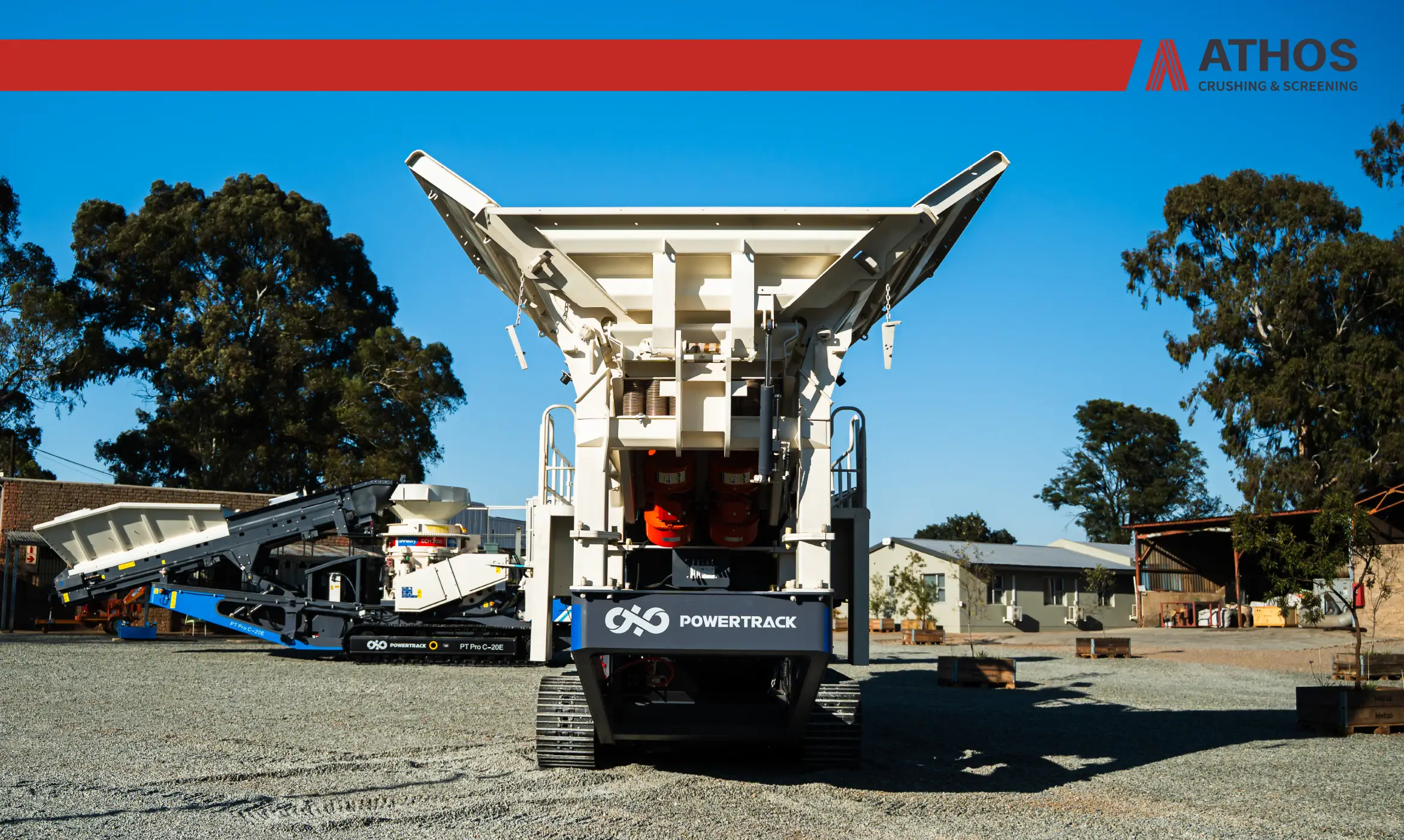

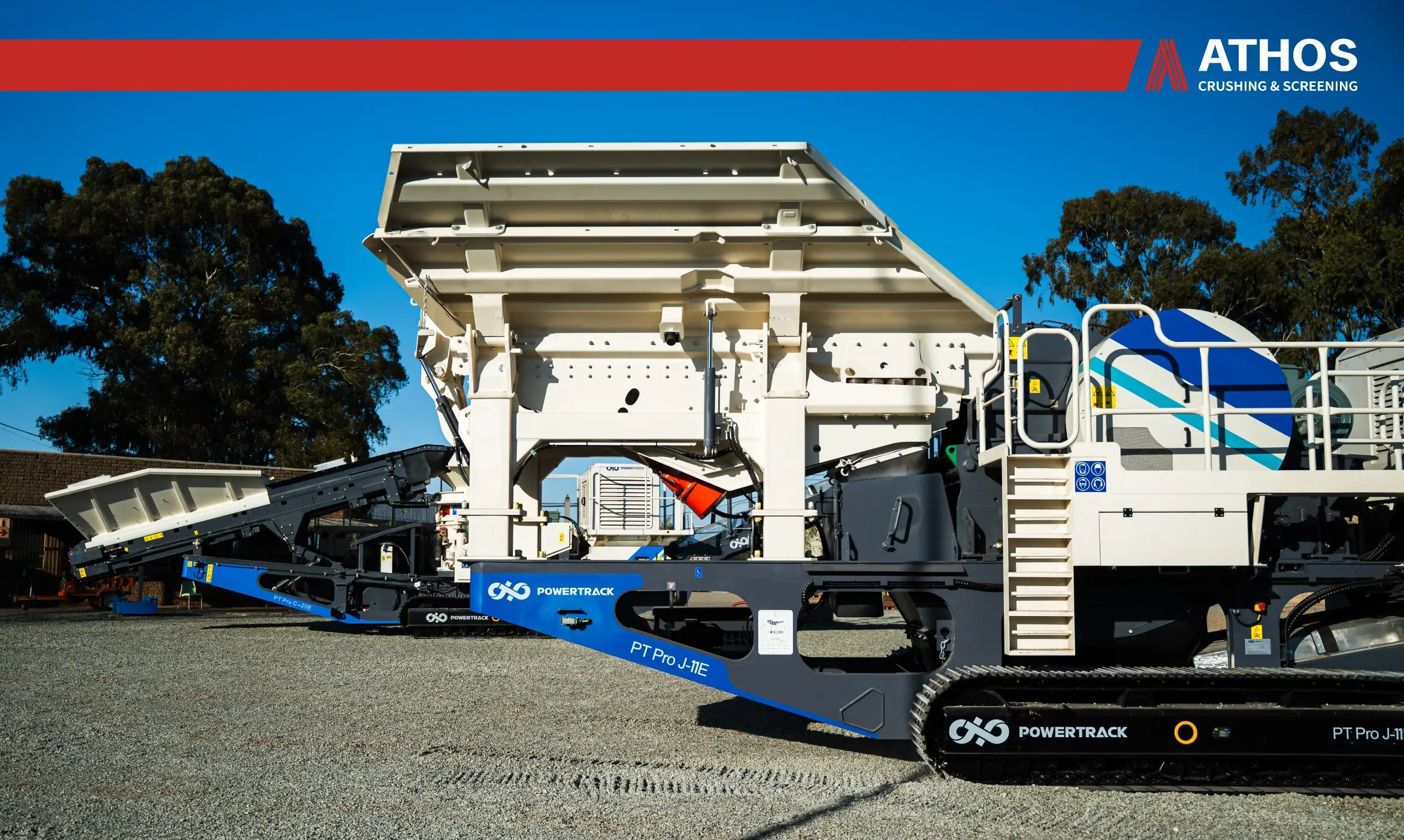

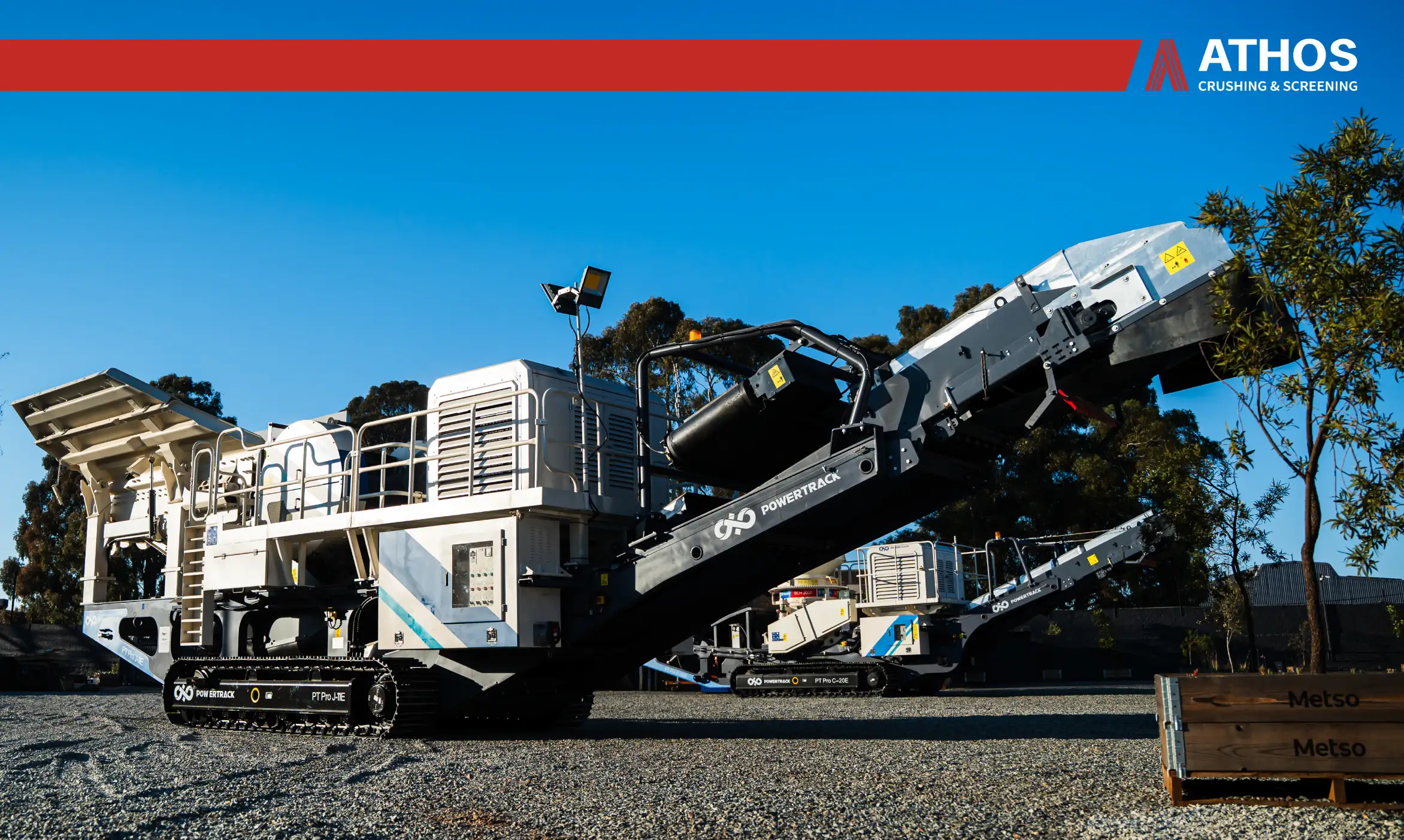

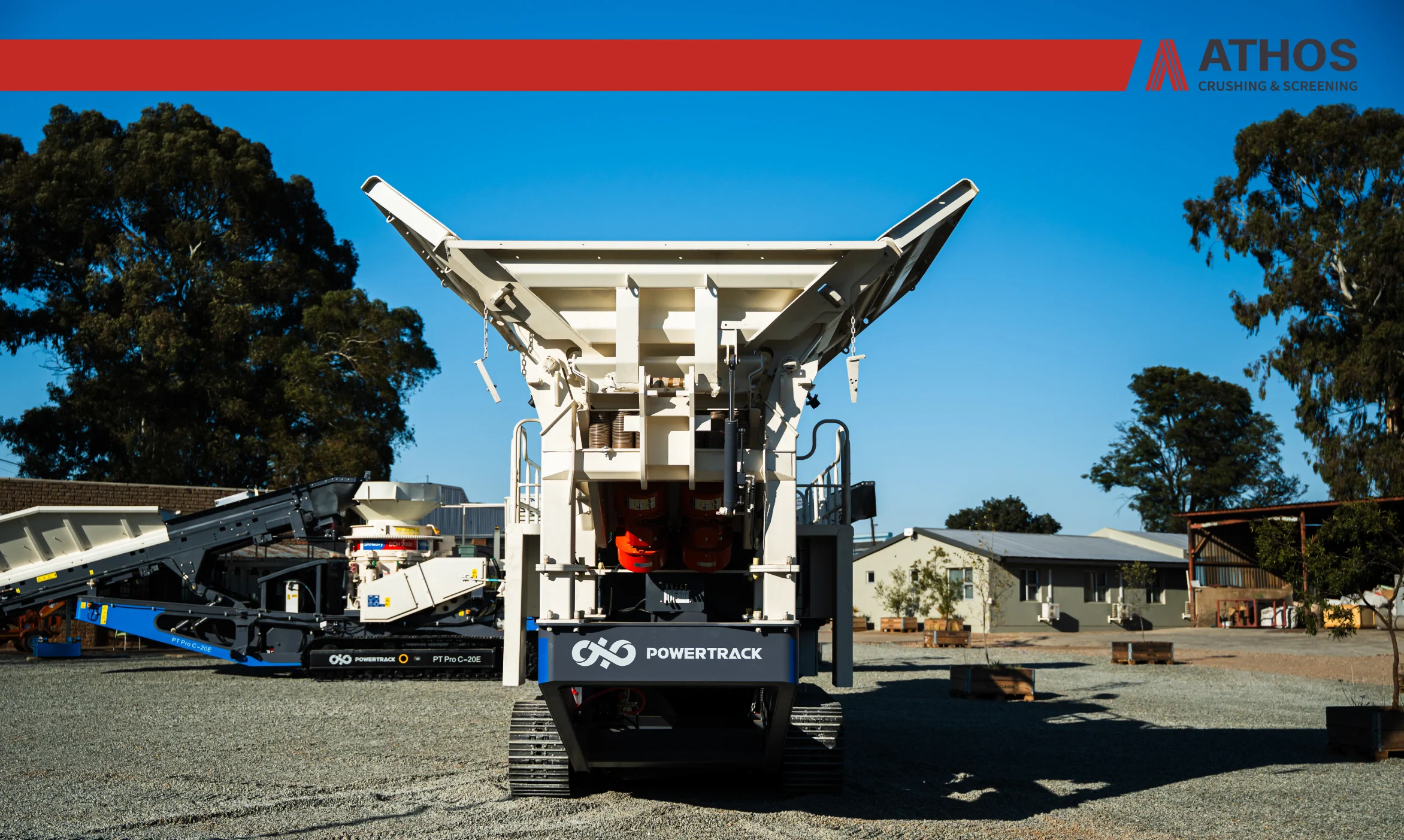

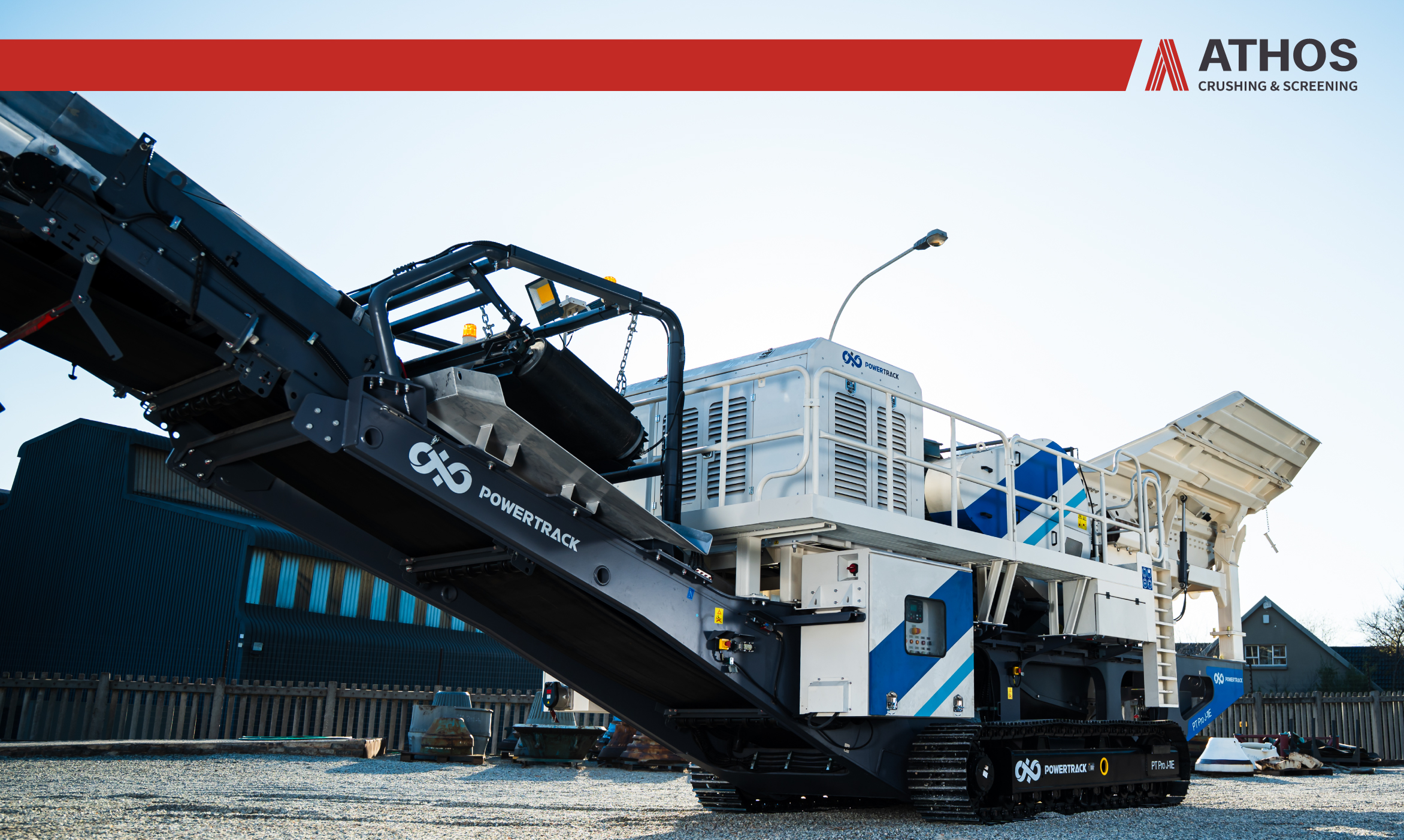

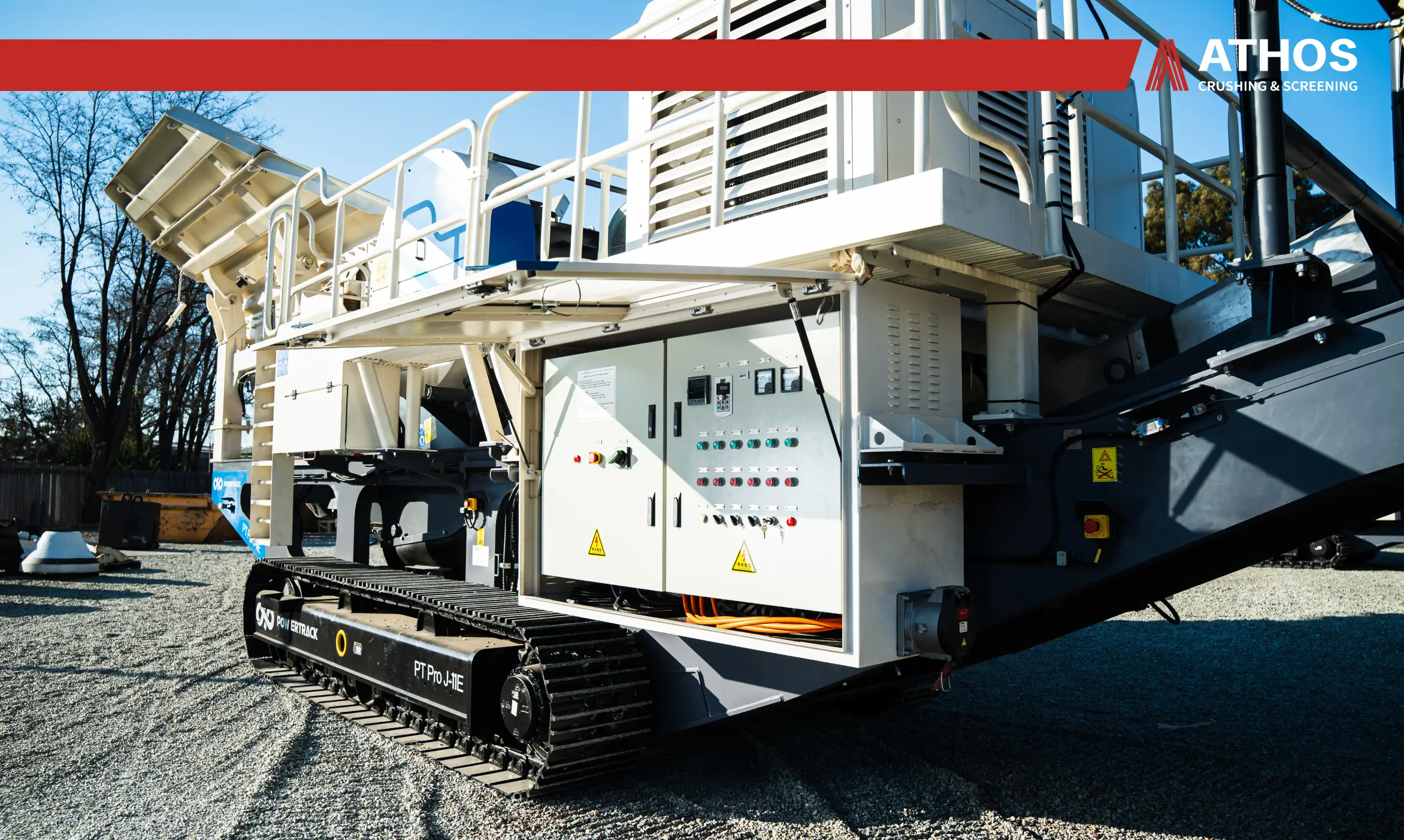

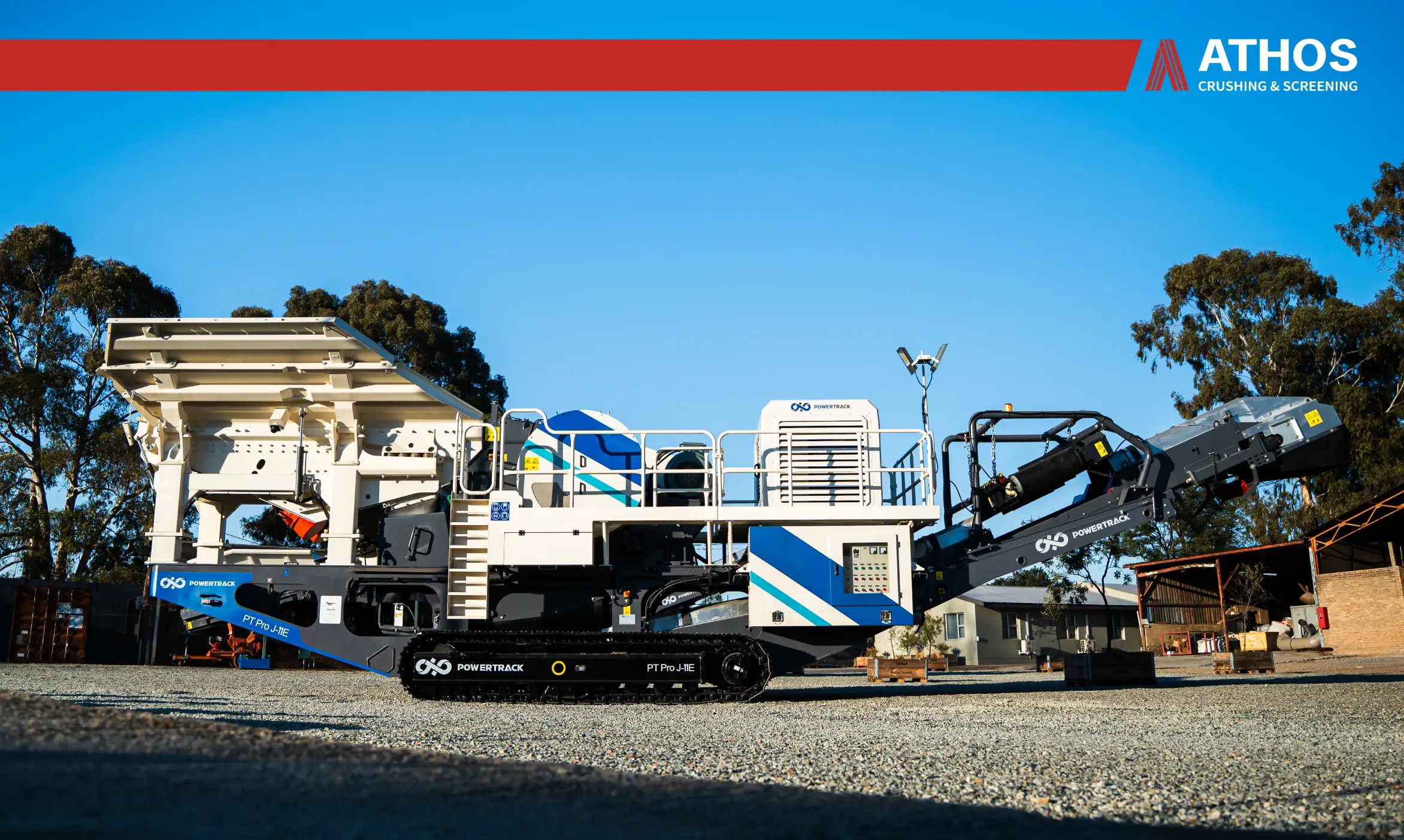

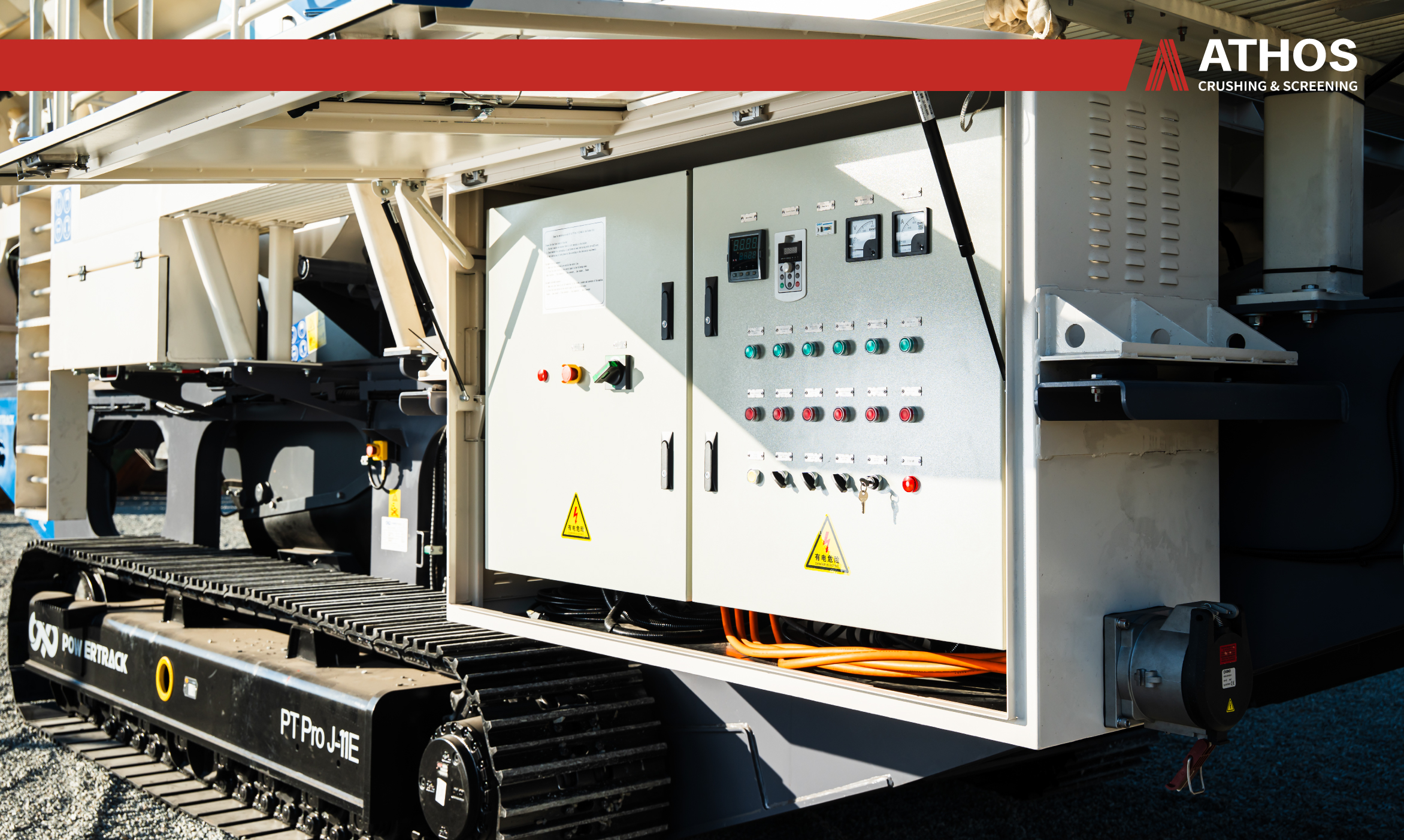

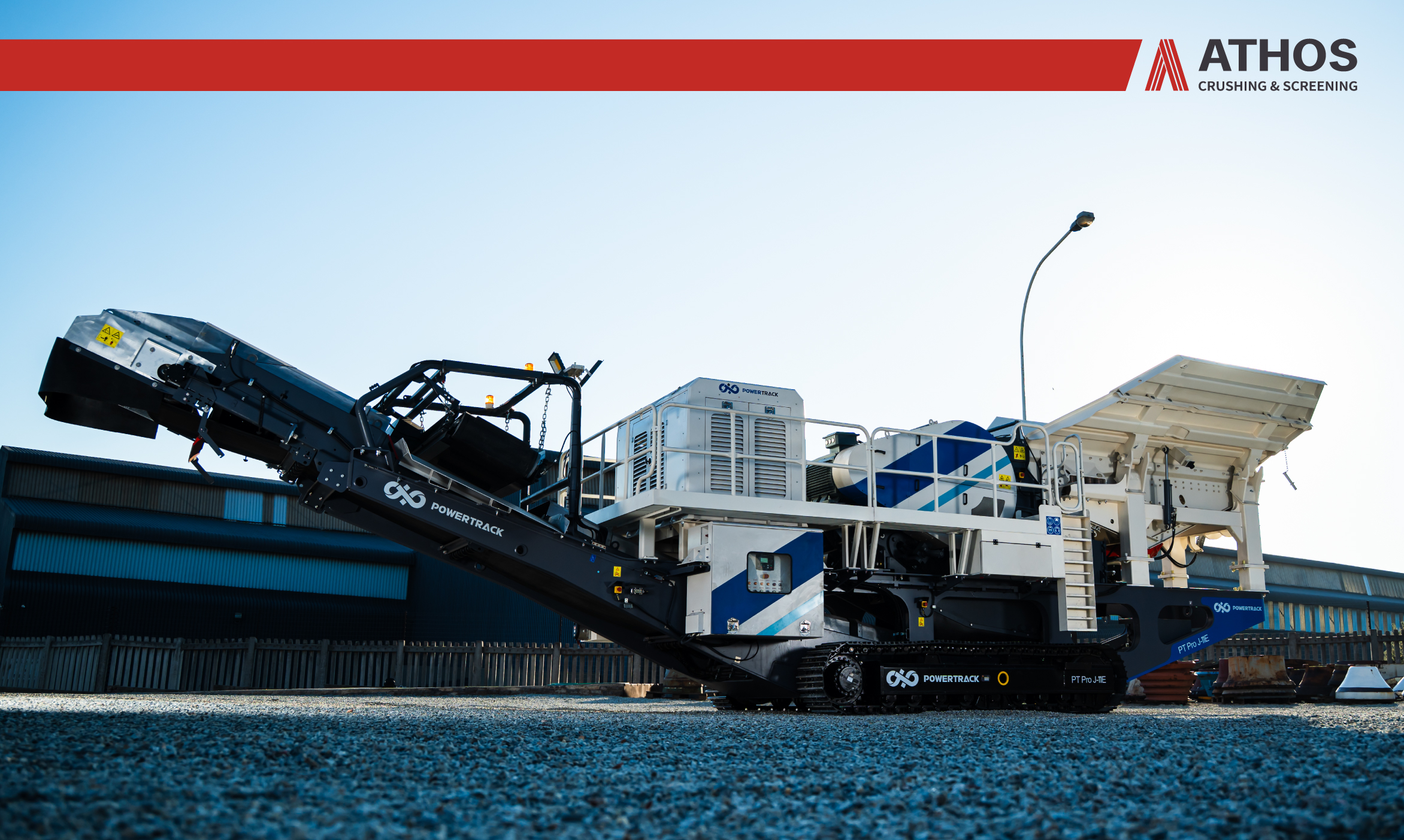

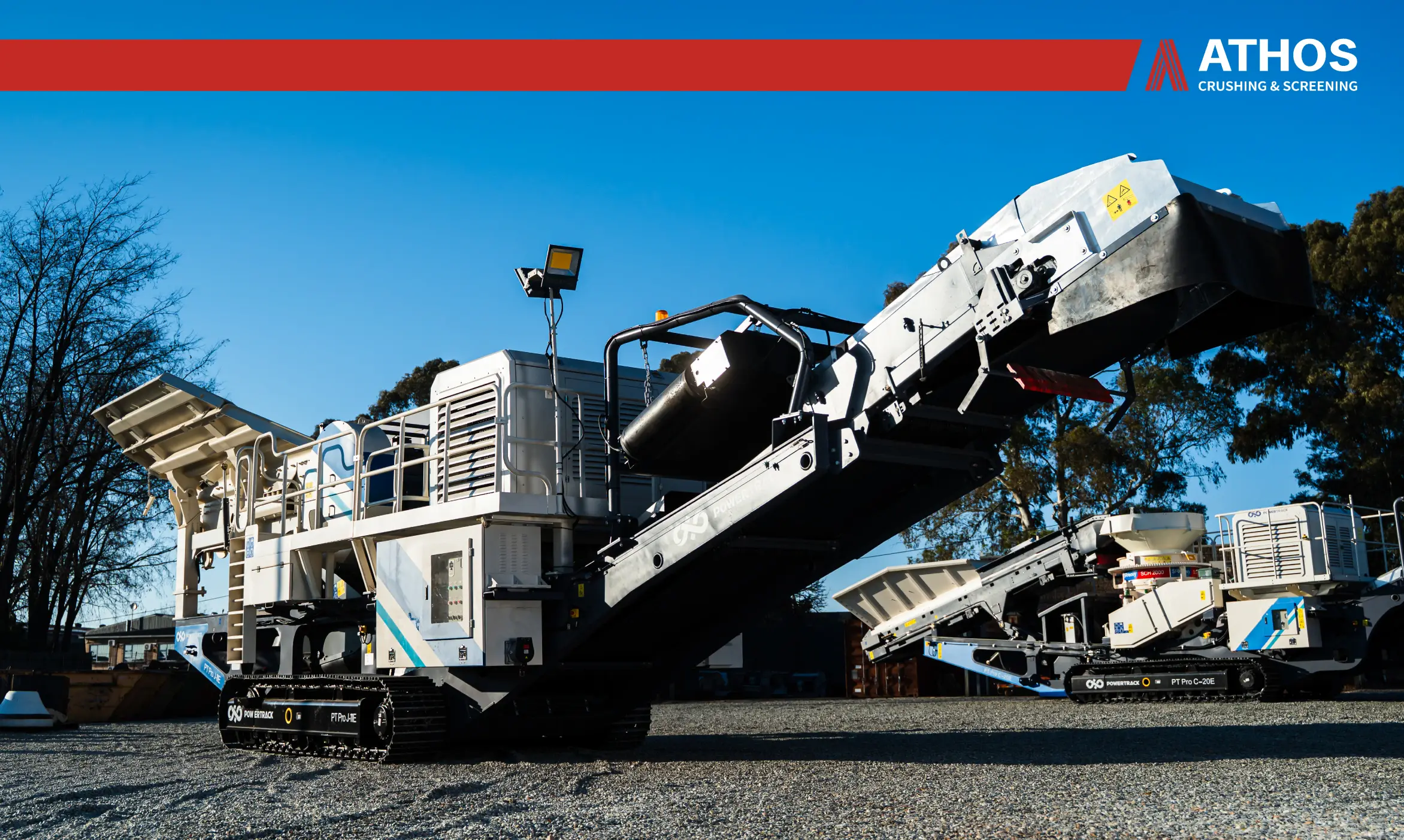

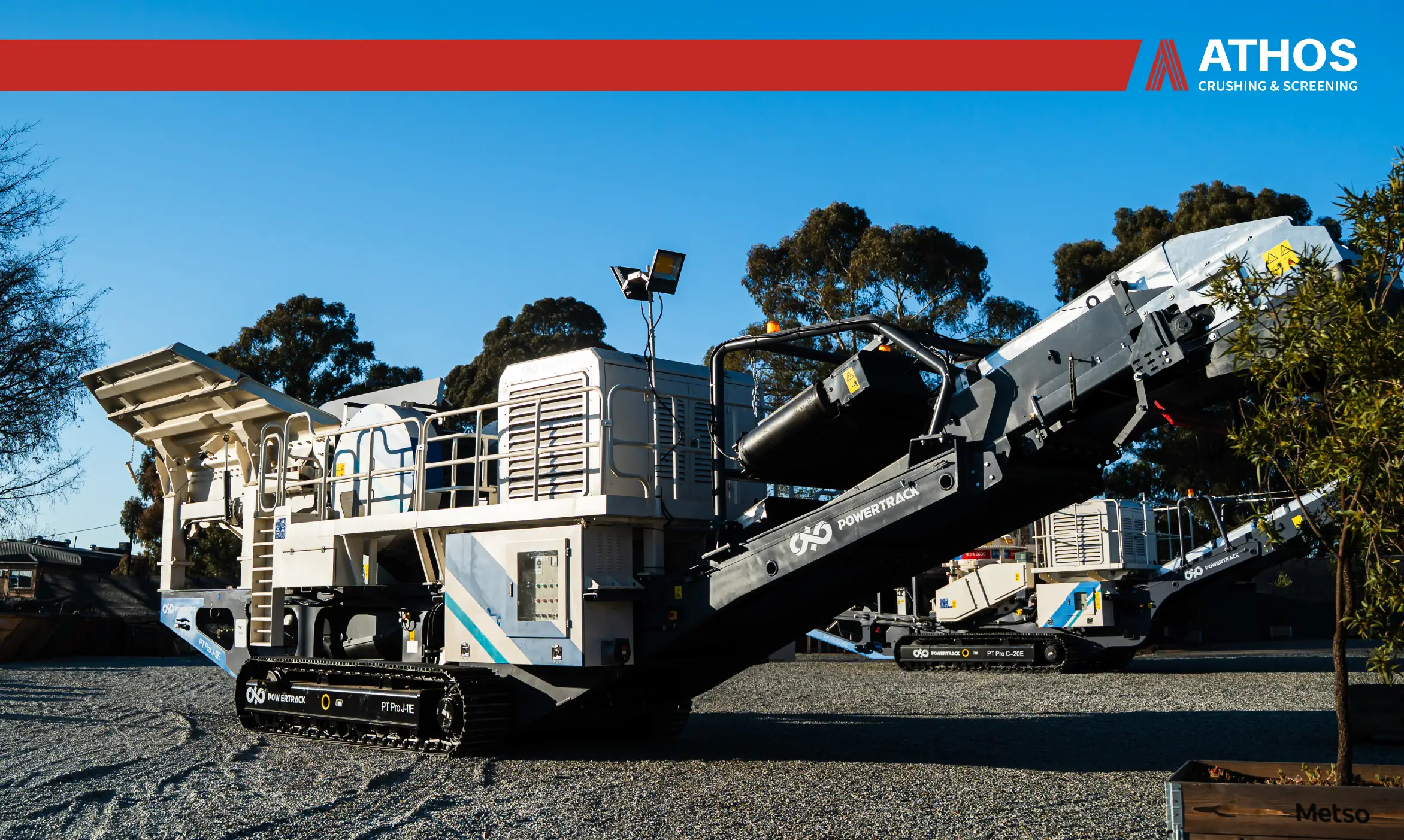

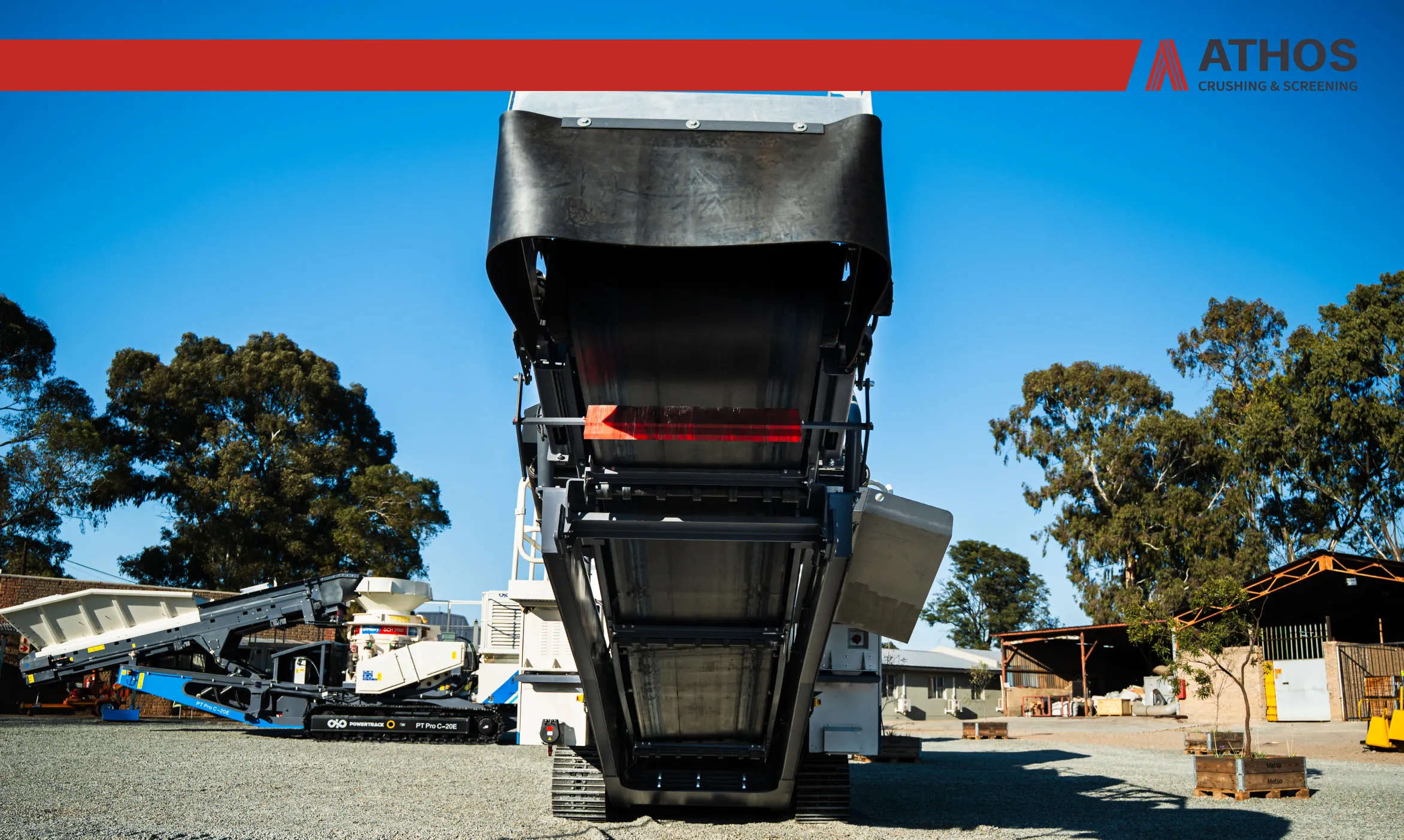

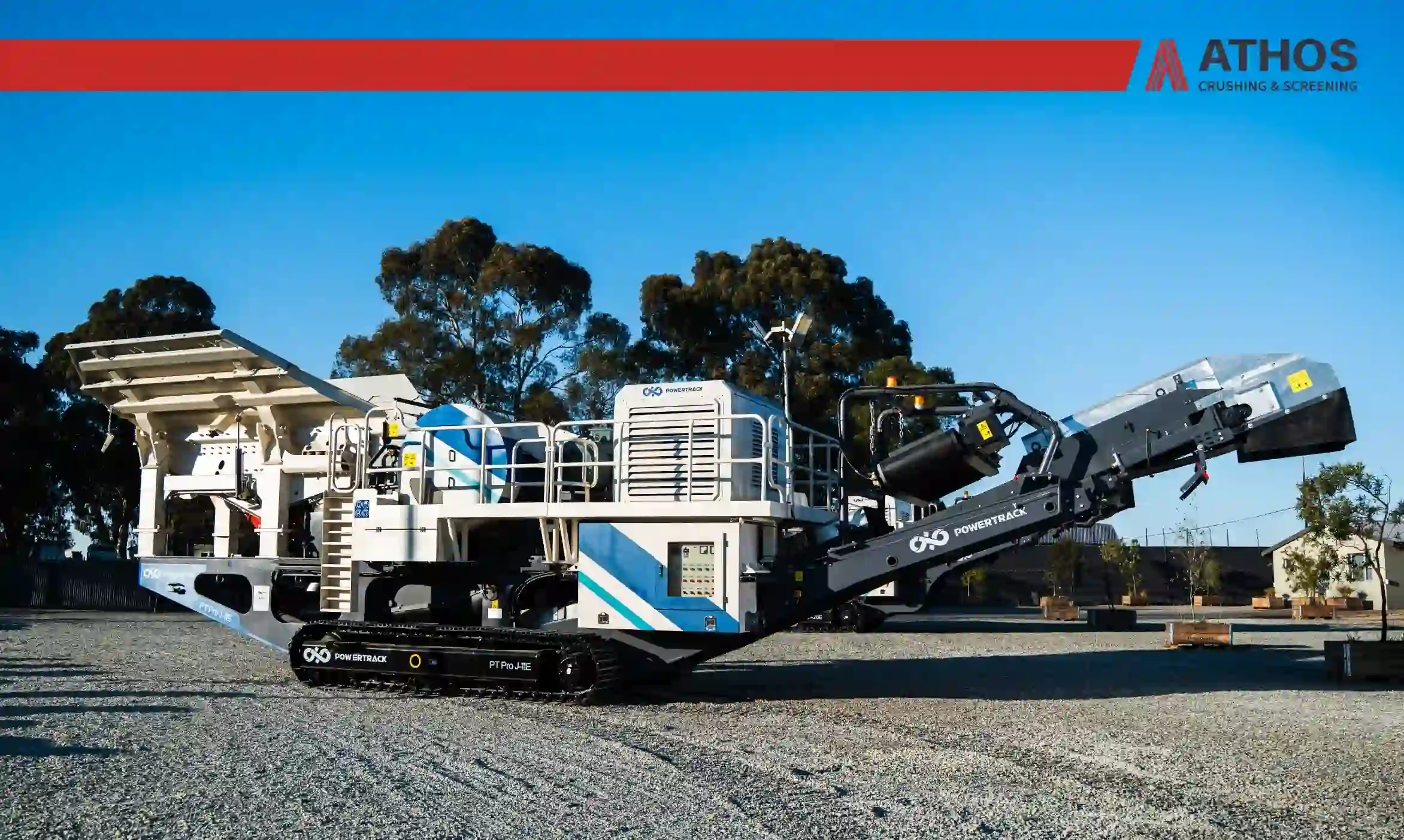

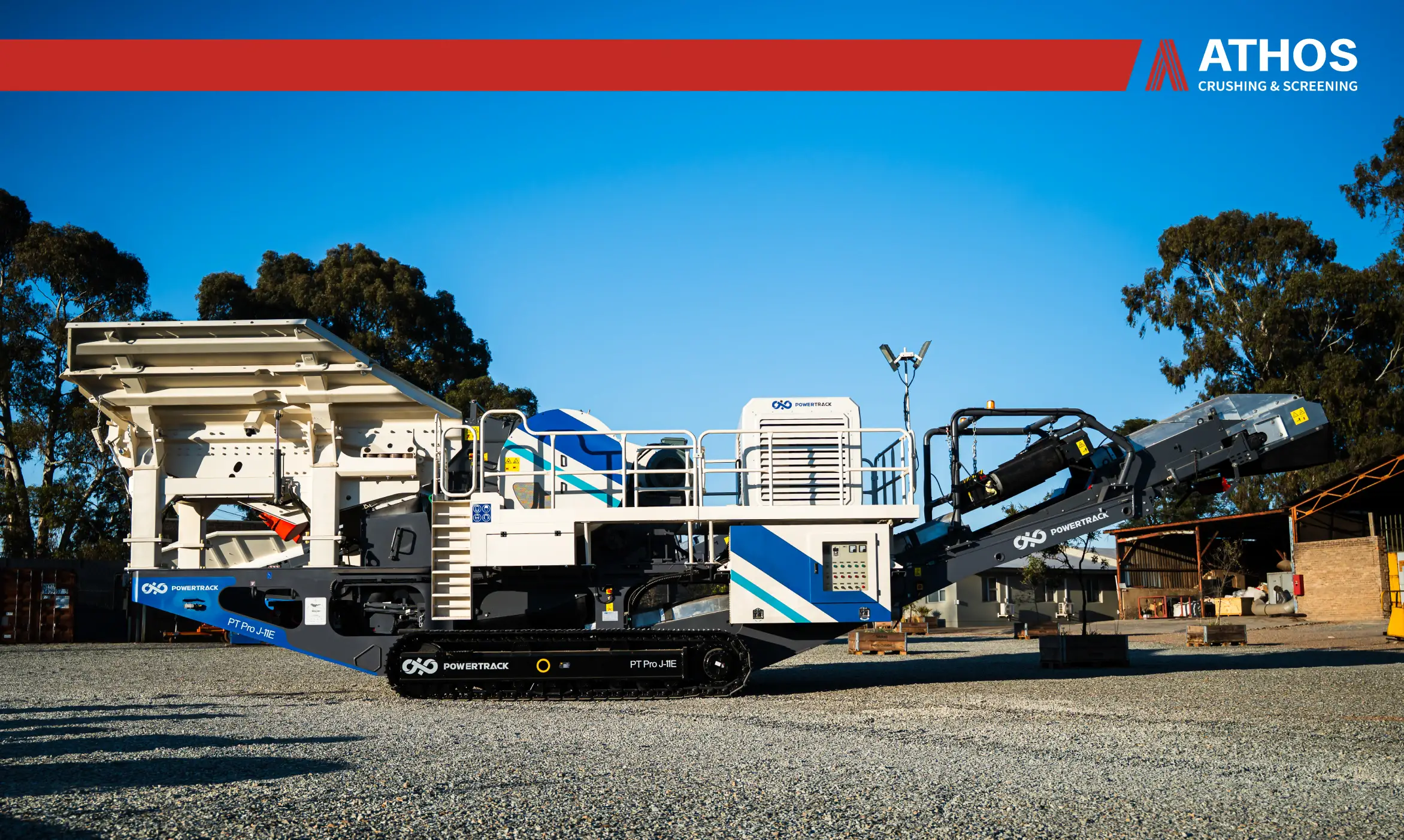

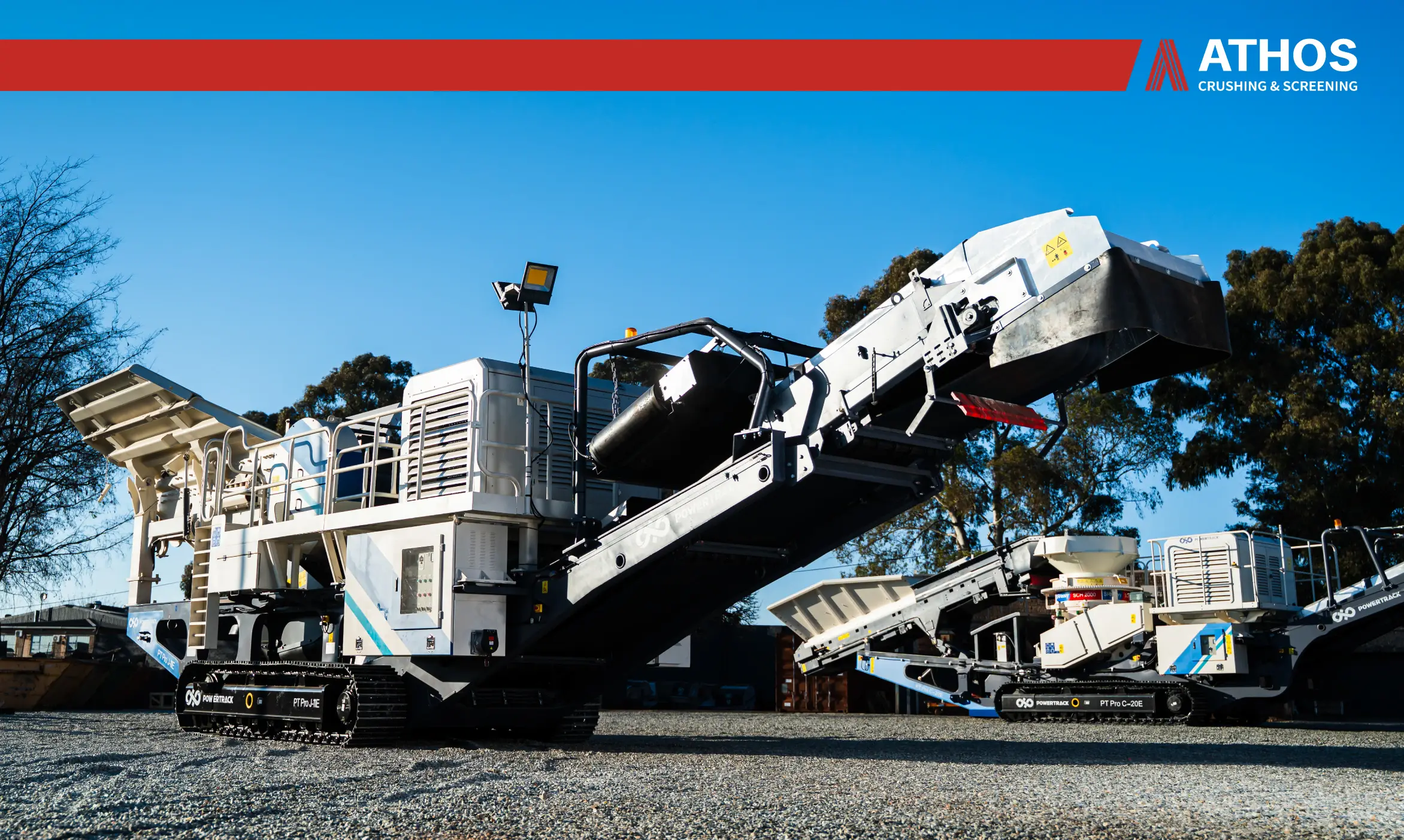

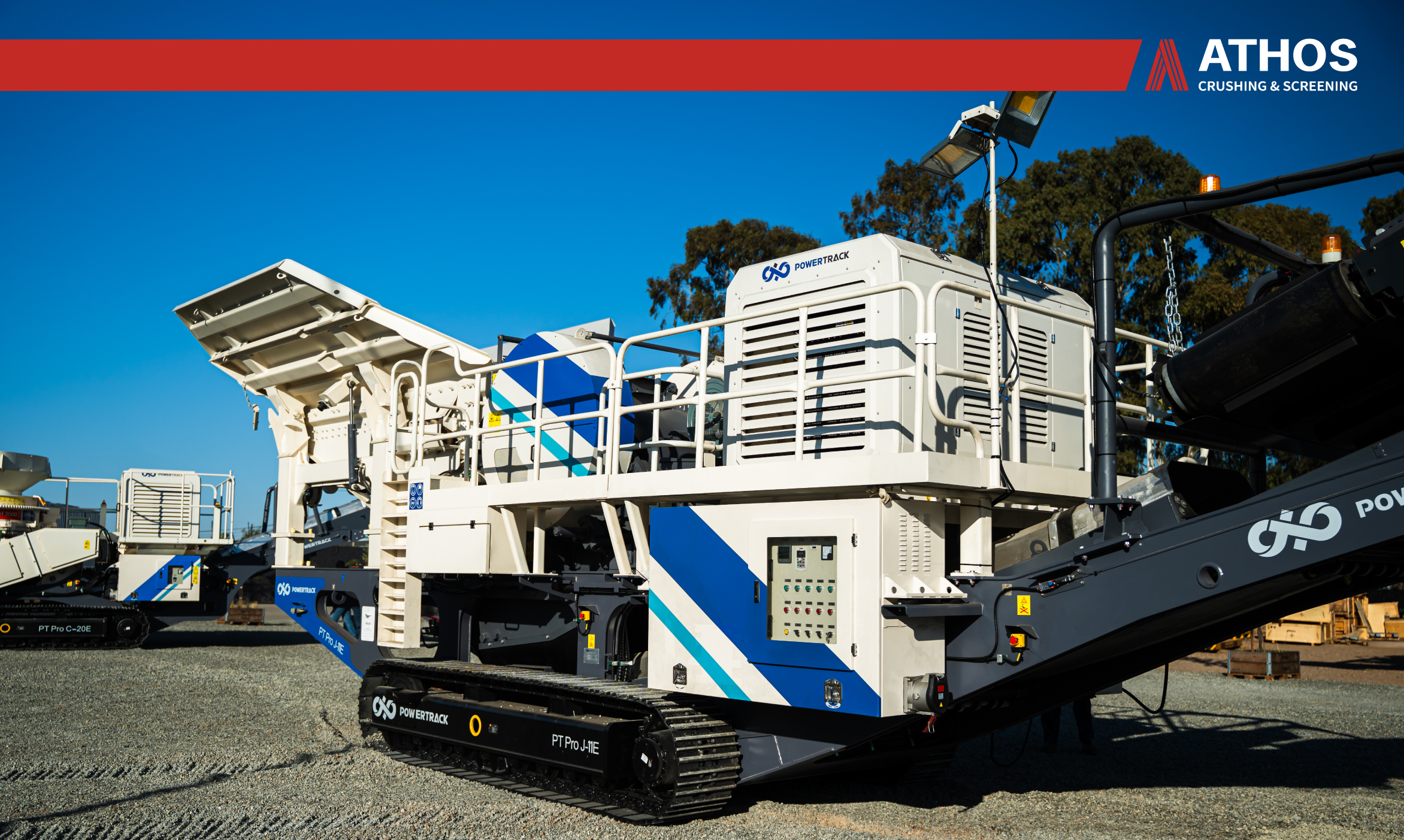

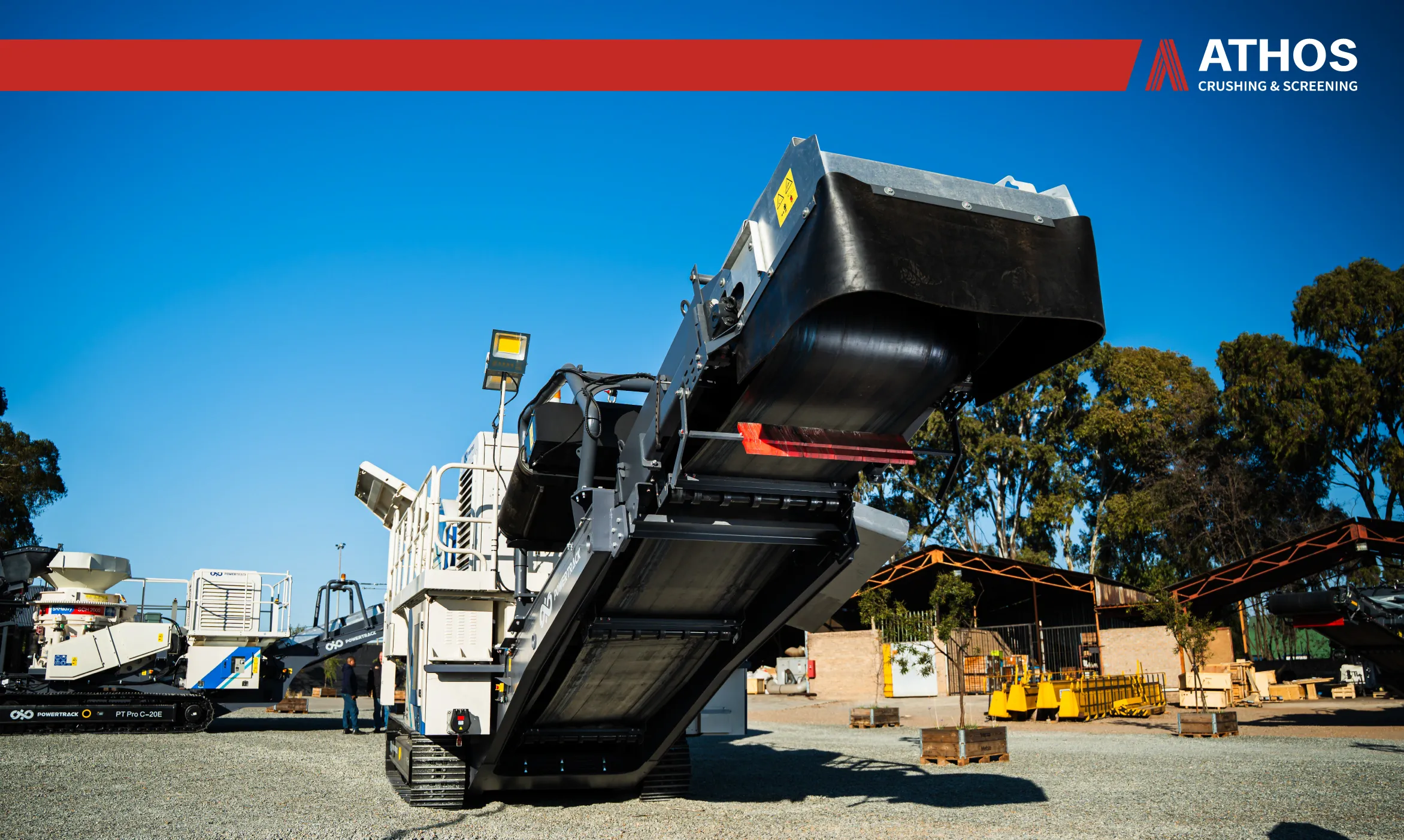

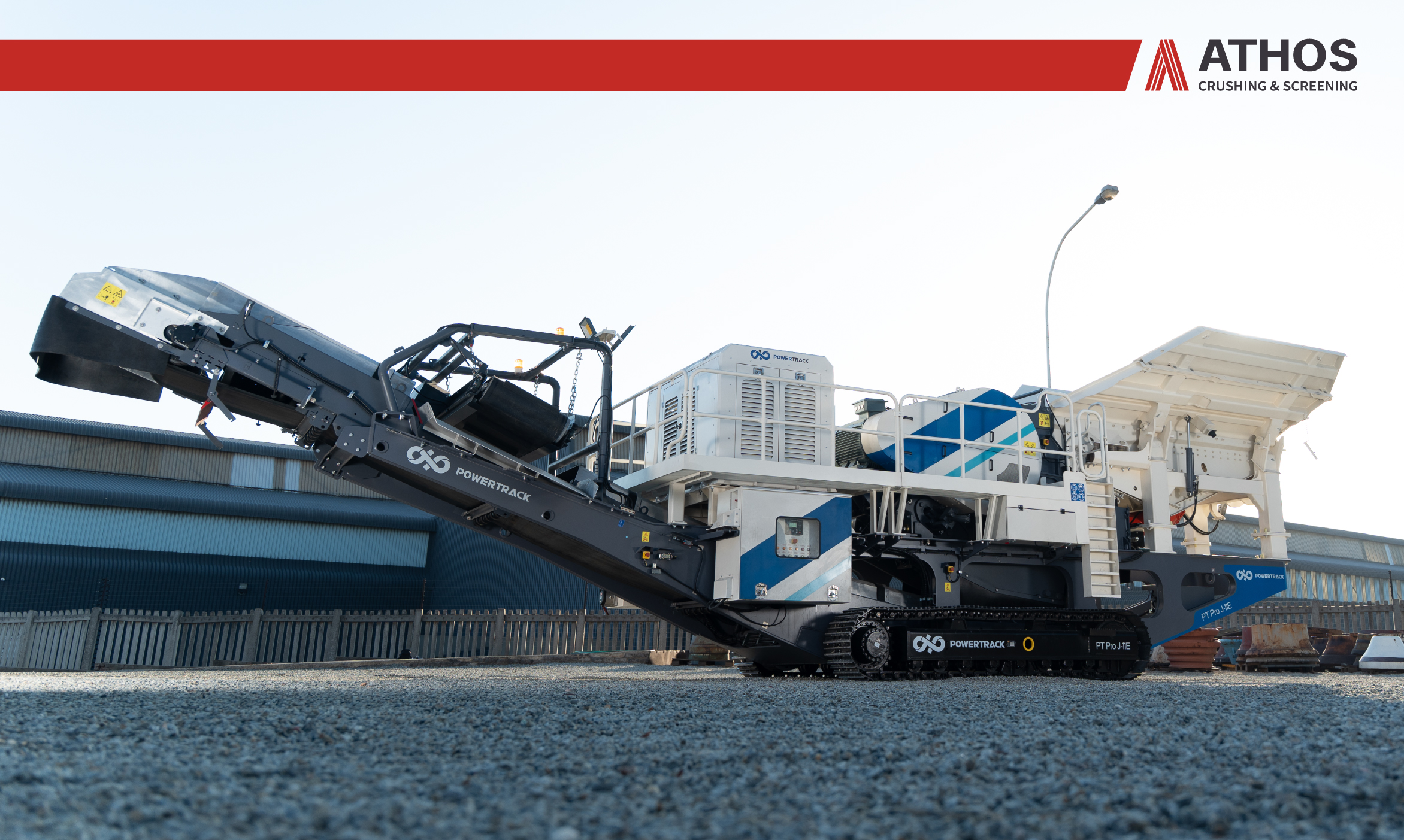

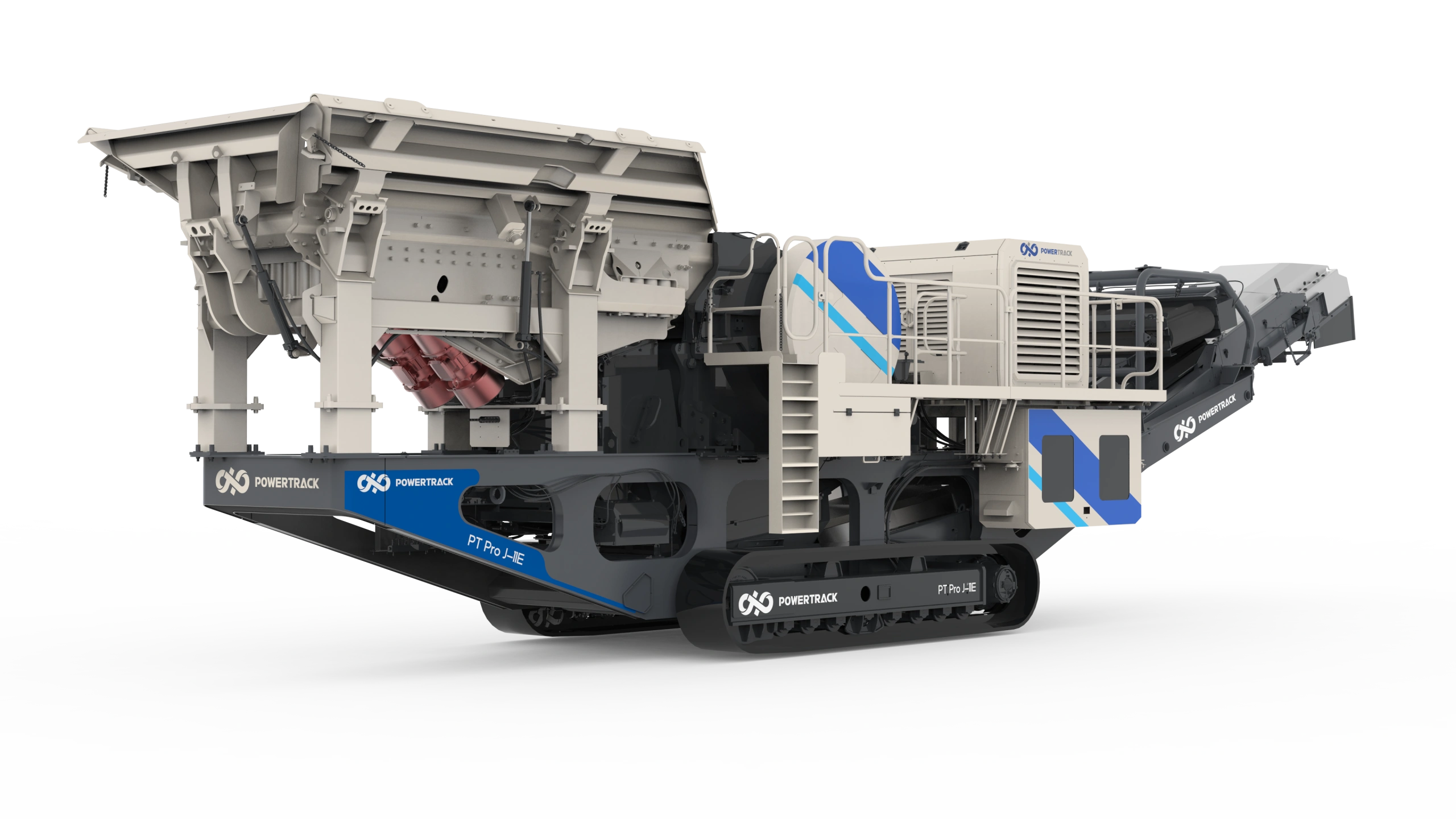

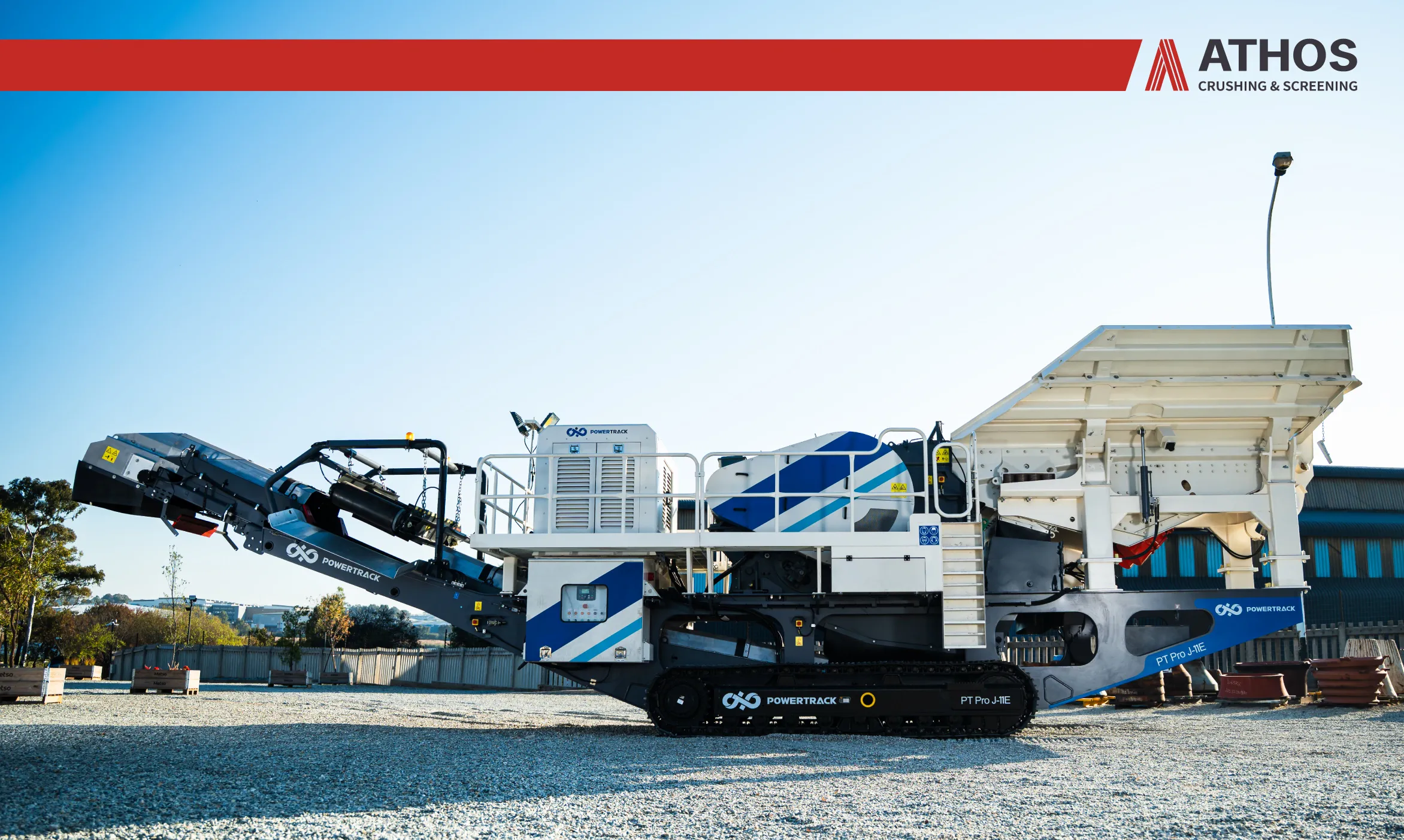

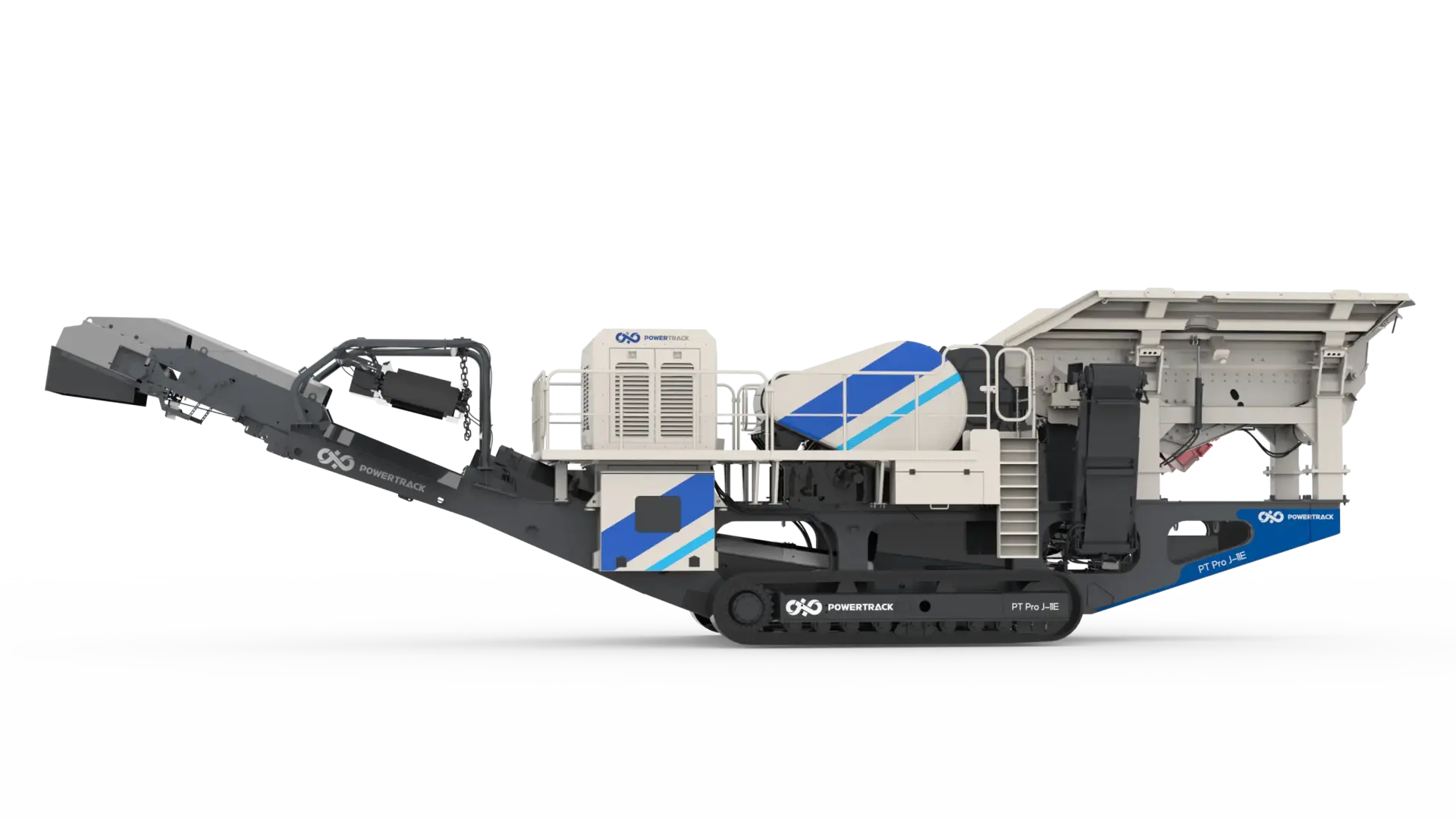

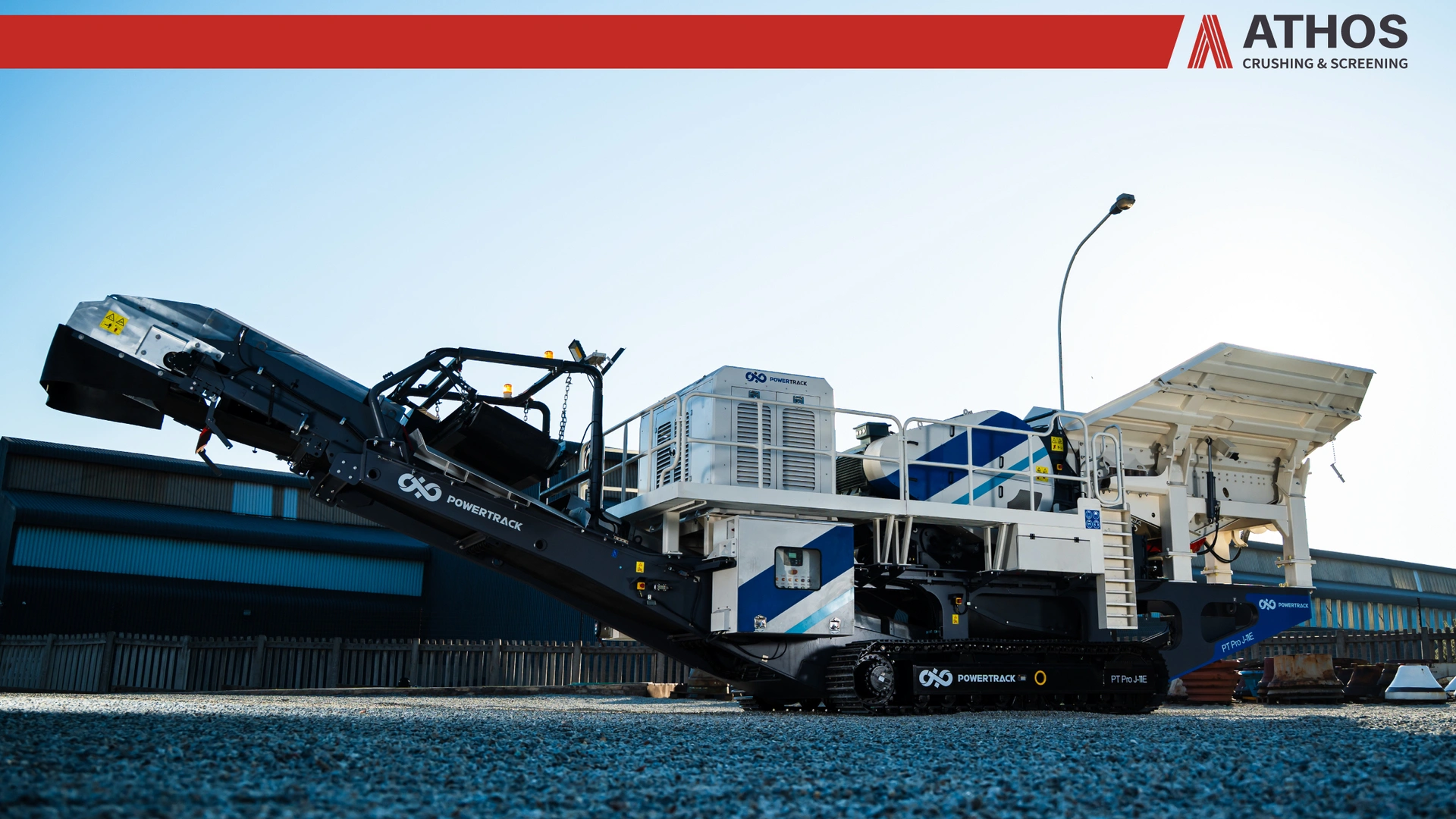

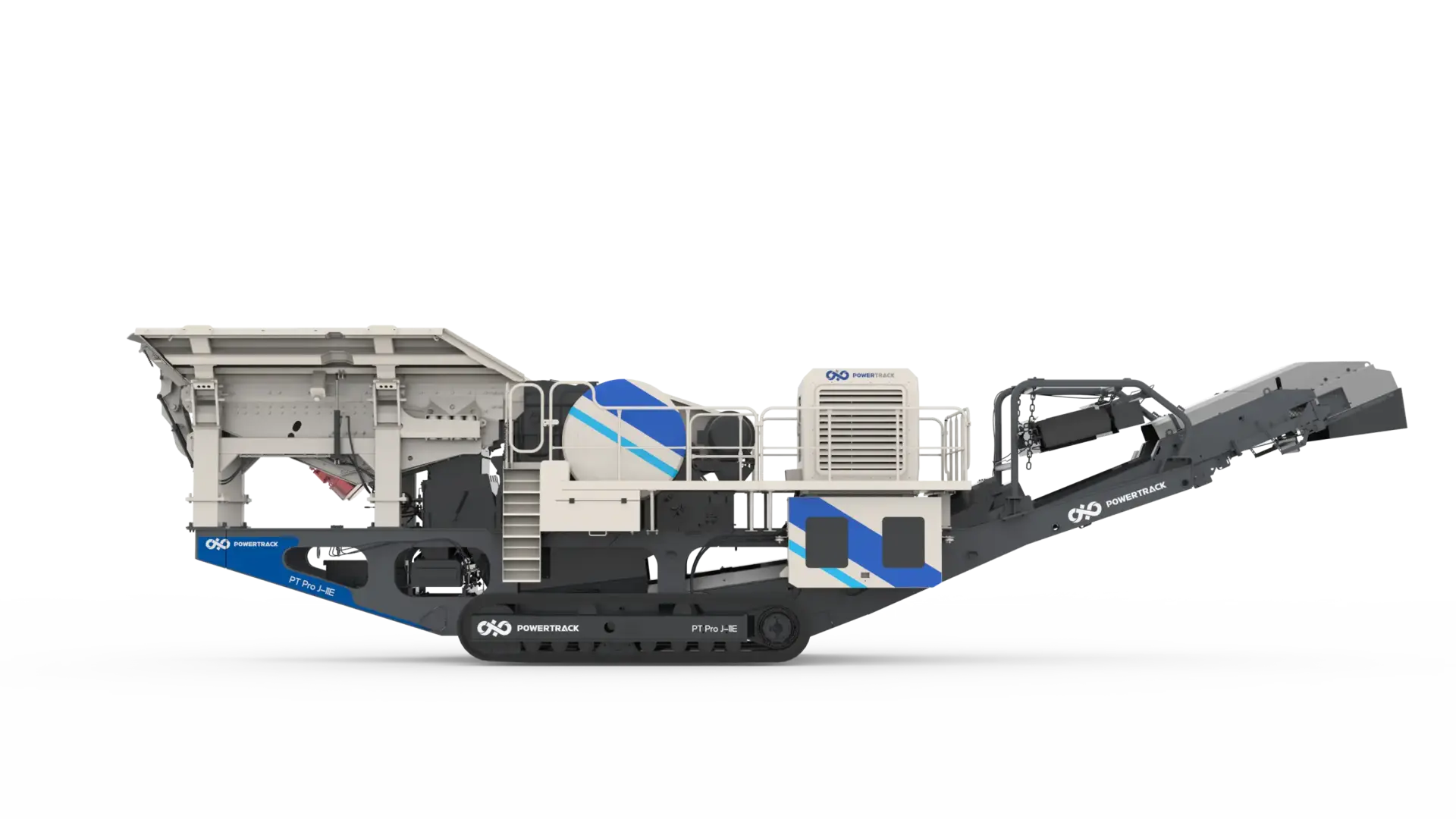

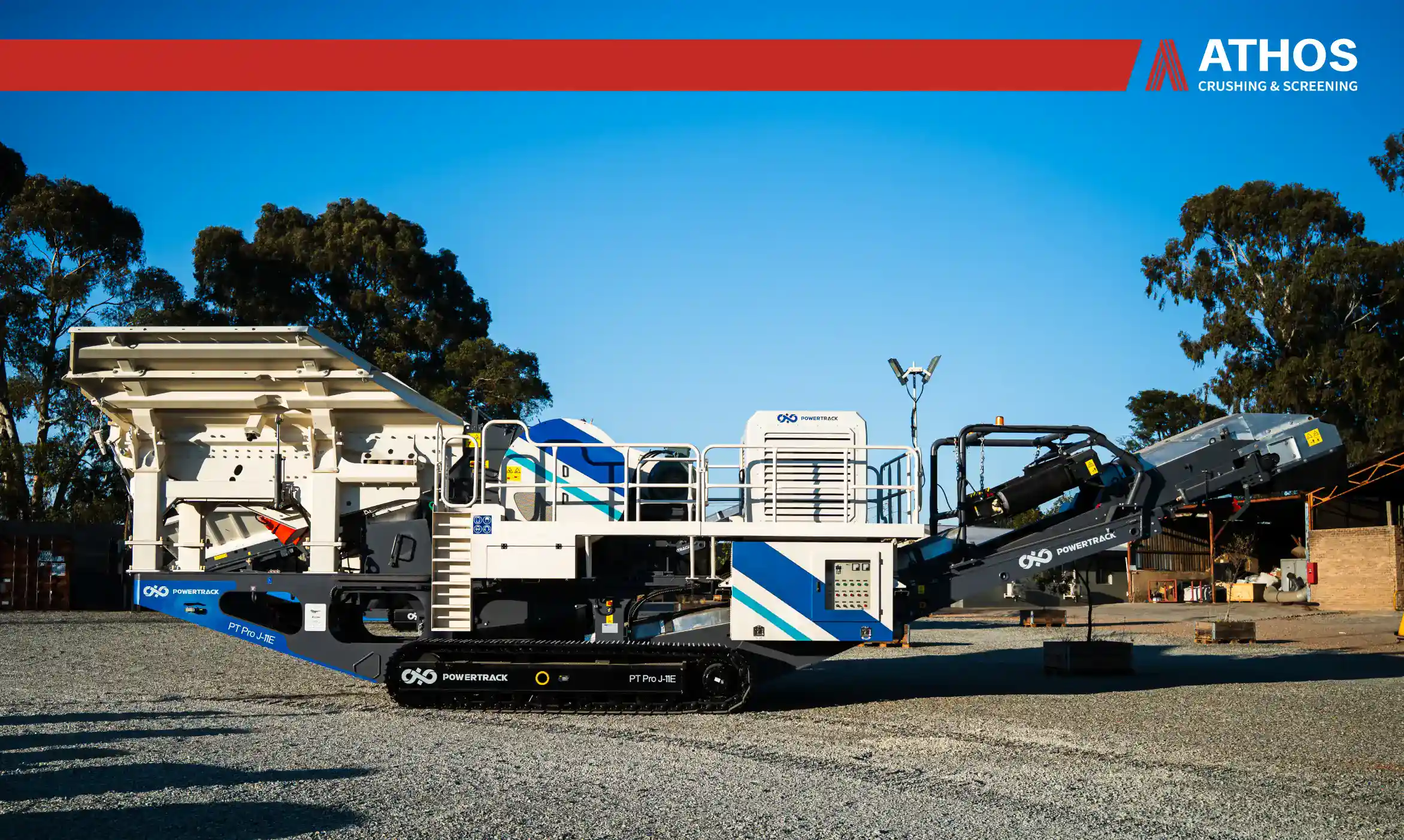

Mobile Jaw Crusher J-11E
The Powertrack PT Pro J-11E is the perfect solution for mining, recycling and or aggregates production.

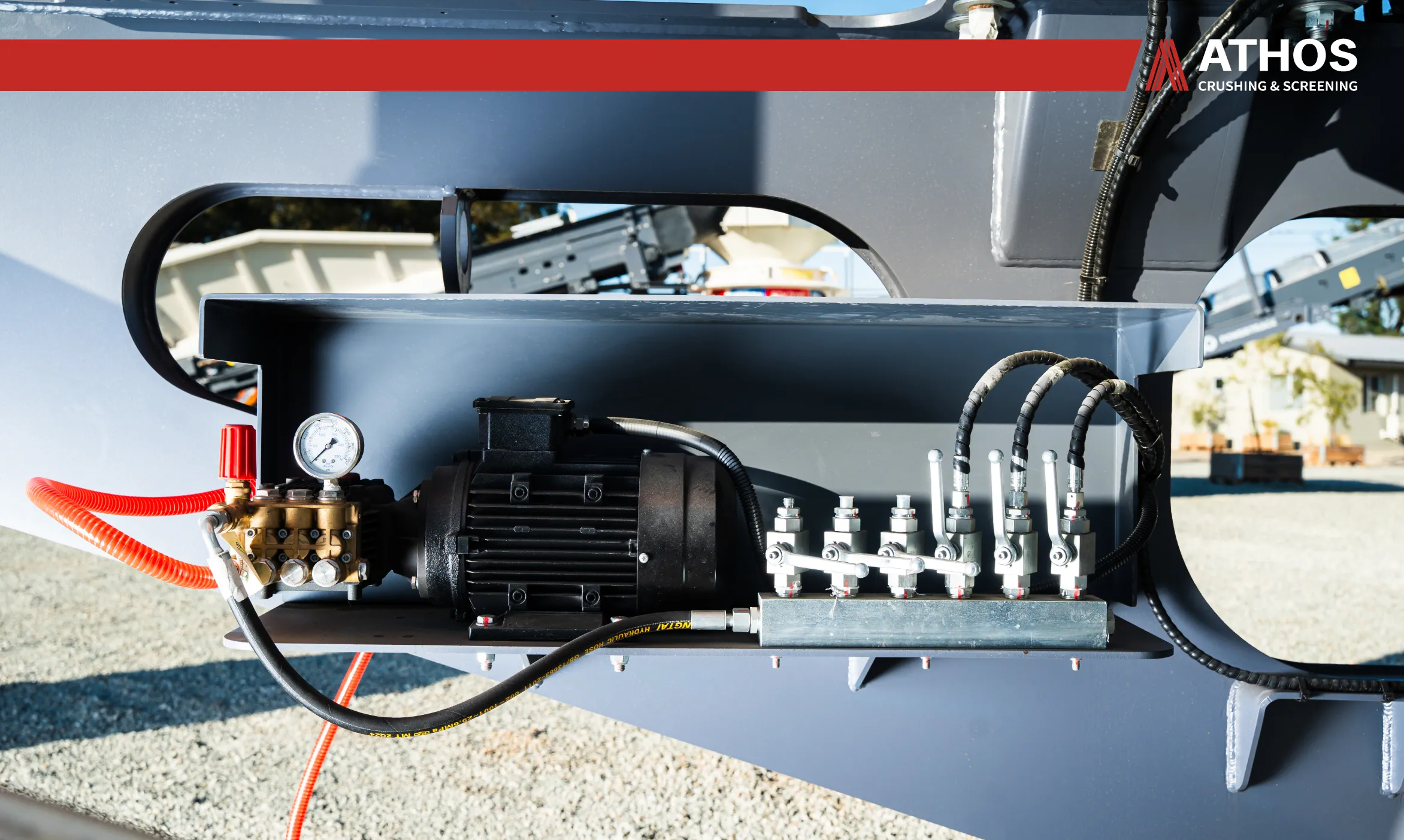

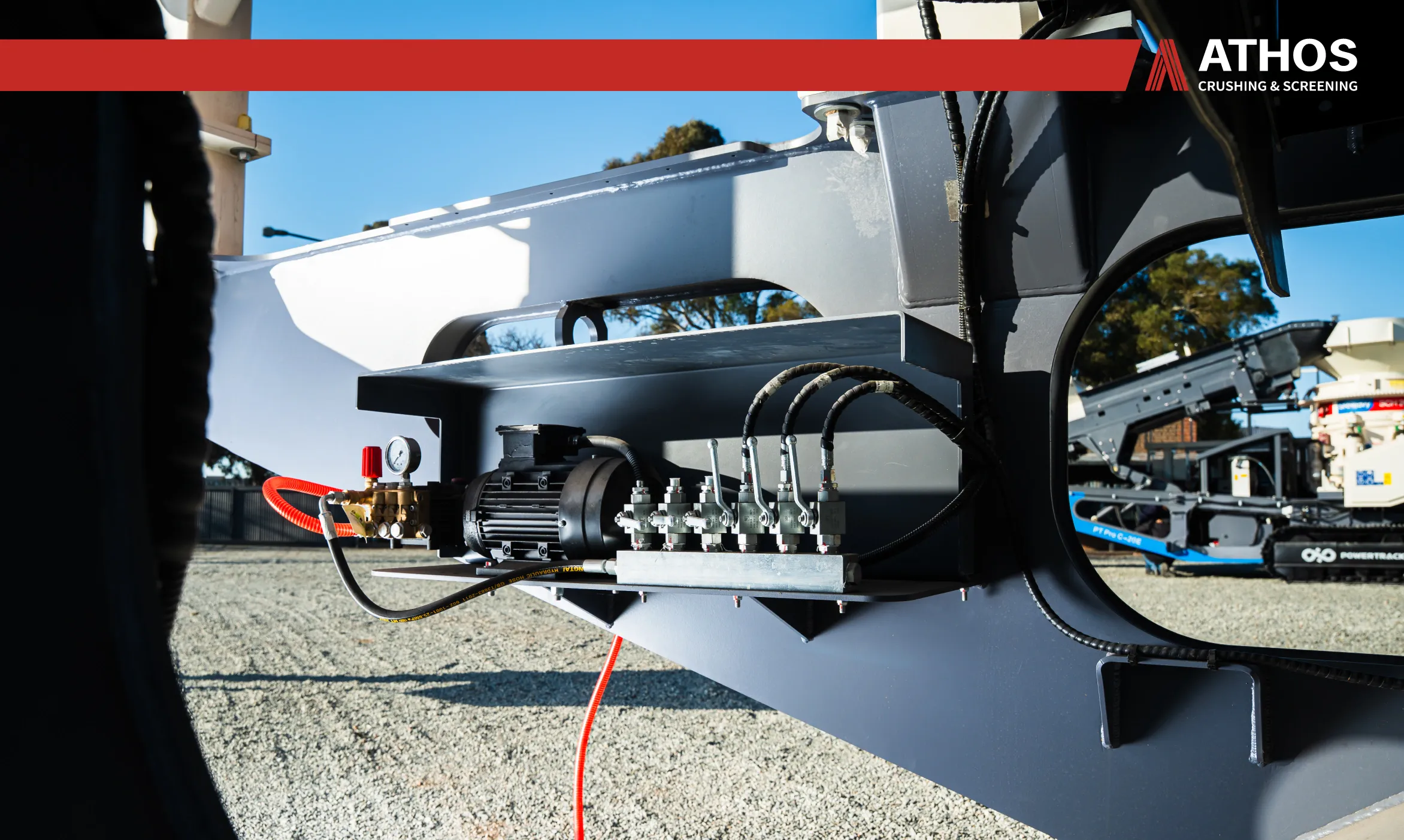

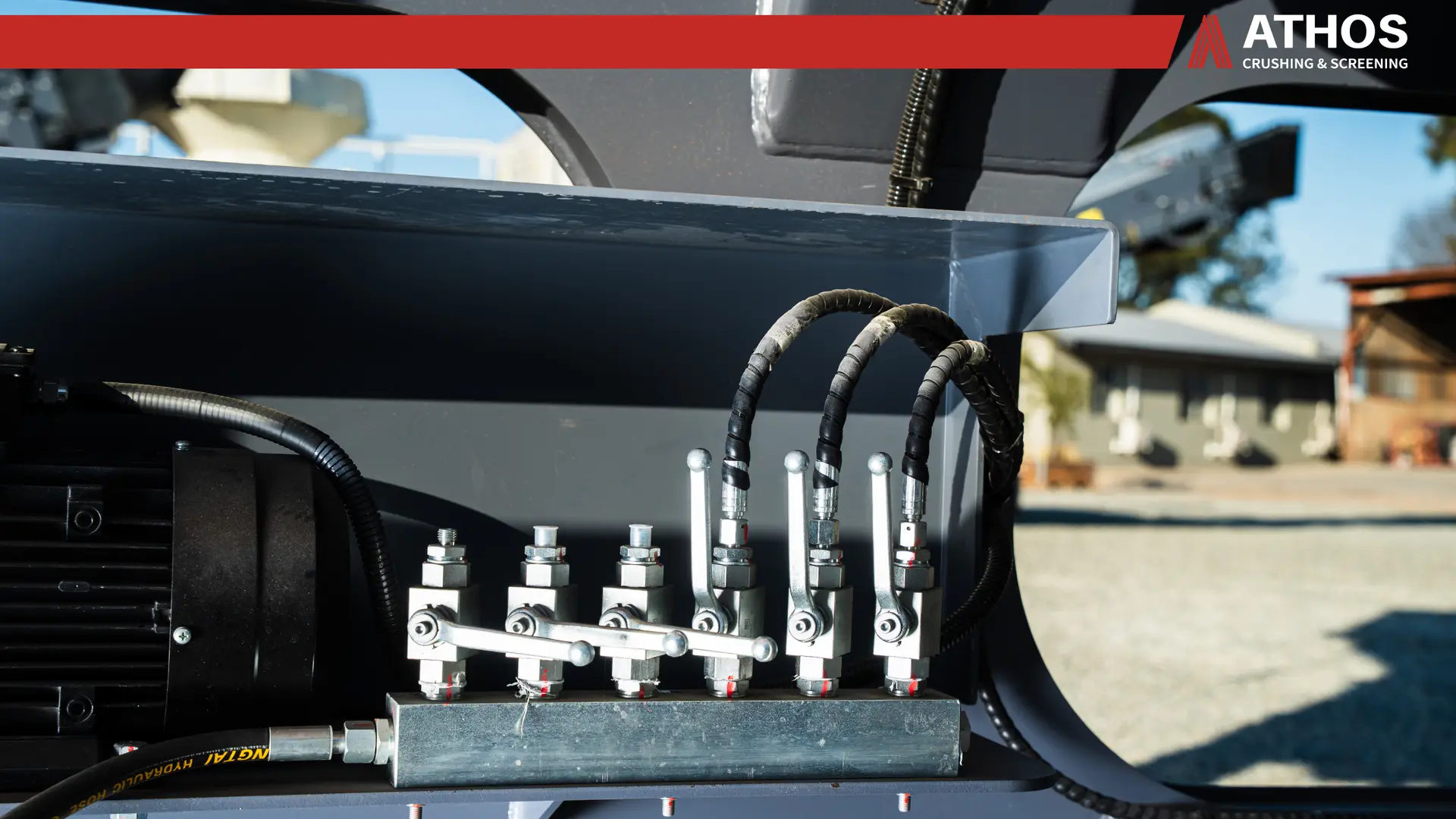

As a primary crusher, it reduces materials for further processing. Built with Metso’s renowned engineering excellence, the J-11E delivers outstanding performance even in the toughest environments. Its robust design ensures a long lifespan with minimal maintenance costs, offering unbeatable reliability. The hydraulic drive enhances mobility on-site, while the electric-driven crushing and conveyor system drastically reduces operational costs. With its compact design, the J-11E is also easy to transport, making it the ideal choice for projects across multiple locations.
Thanks to E-Power, the J-11E can be connected to an external power grid, where the crusher runs entirely on electricity. This option is often used when the machine is stationary or located near a power source, reducing fuel costs and minimizing emissions.
KEY FEATURES
Dual Powered
150-500tph Capacity
Vibrating Grizzly Feeder
-600mm Feed Size
PRODUCT FEATURES
SRHeavy® SJC jaw crusher, large crushing ratio, high production.
Plug-in electric driven brings energy saving, environmental protection and less maintenance.

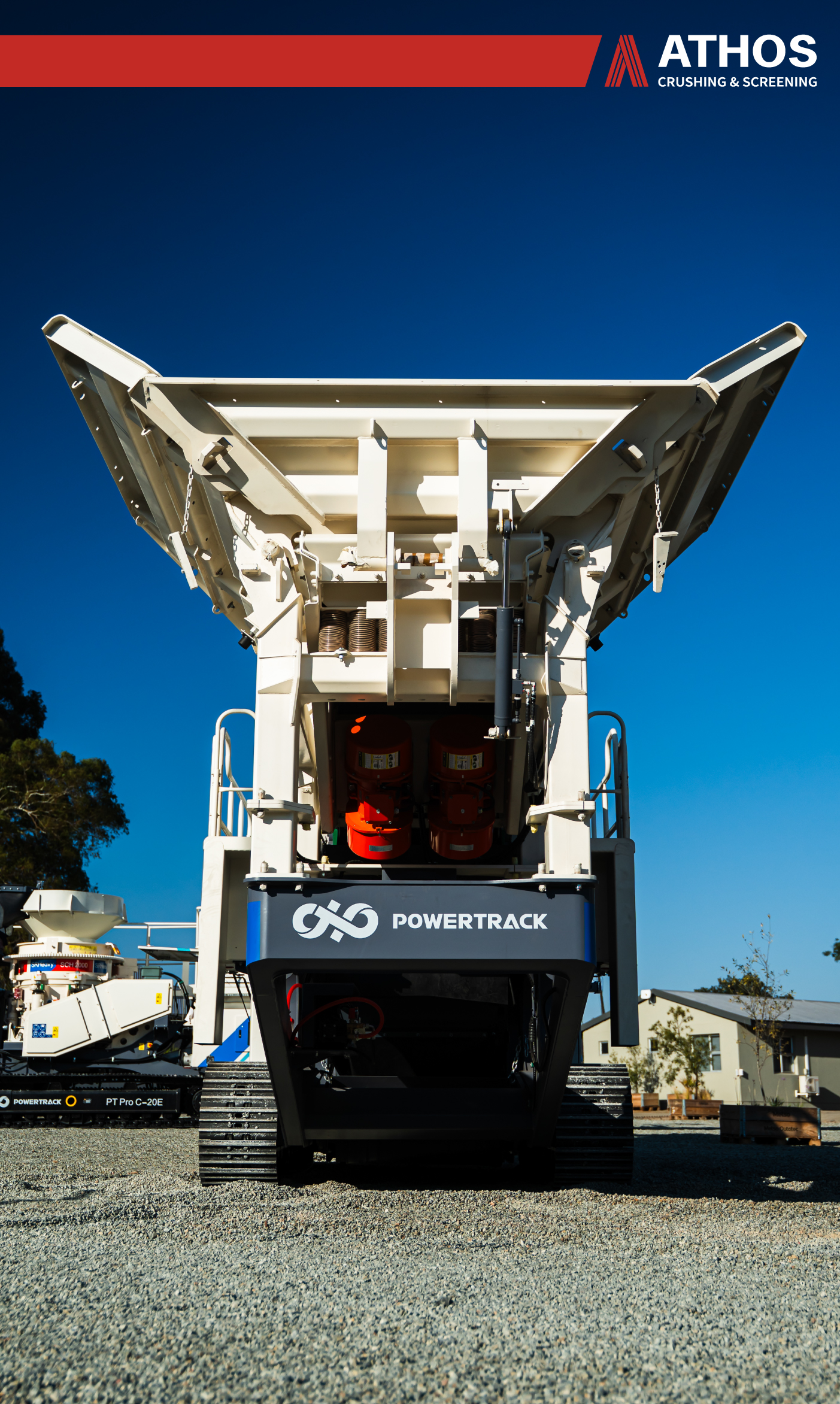

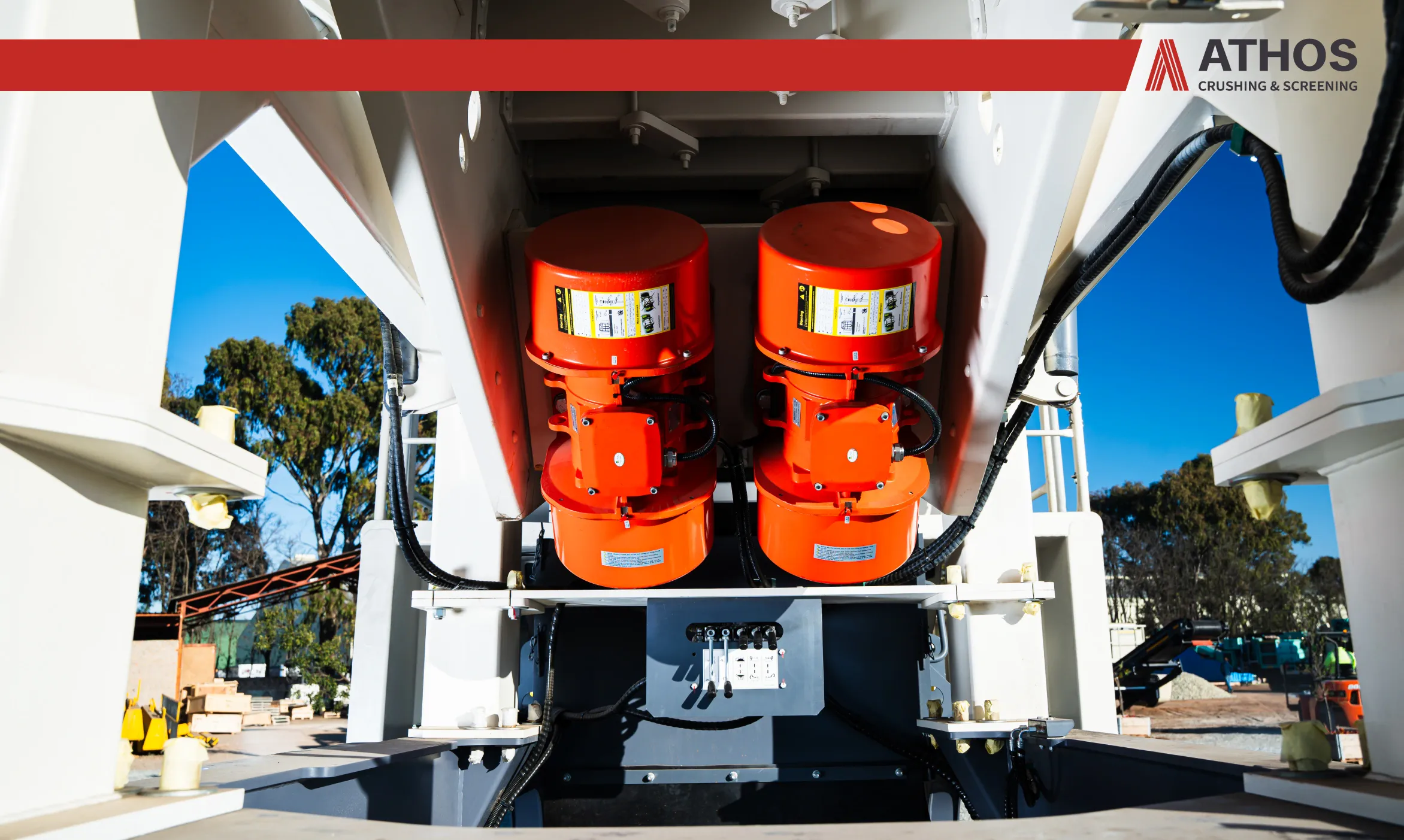

Two stage grizzly feeder provides highly efficient material separation.
Automatic start and stop function for the feeder according to the level of the jaw crusher cavity to ensure constant production.
SPEC TABLE
Power type | Electric power |
Capacity | 150 - 500 t/h |
Driving power | 138 kW |
Power unit | 110 kW, Cummins QSB3.9 |
Transportation dimension L x W x H | 15,450 x 3,150 x 3,600 mm |
Working dimensions L x W x H | 15,400 x 5,900 x 3,900 mm |
Weight | 42,000 kg |
Feed opening | 1,060 x 700 mm |
Maximum recommended feed size | 560 mm |
Crusher power | 110kW |
